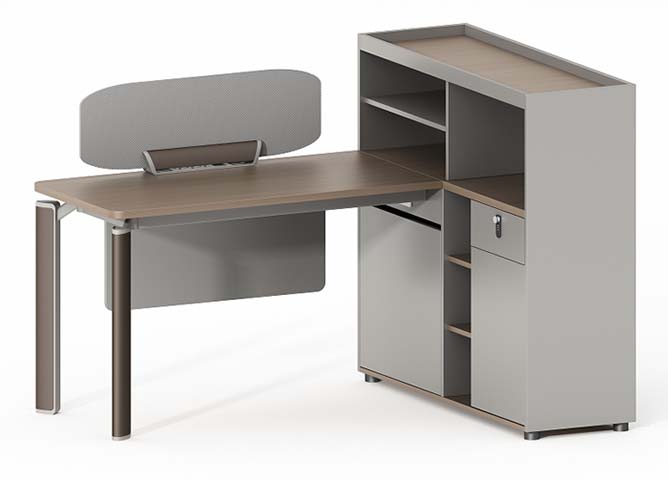

L-Shaped Single Staff Office Workstation Desk with Integrated Storage Cabinet and Curved Desktop Privacy Divider (model WS-L-STG-001) is listed under Open Workstation, with overall dimensions of 2450 × 2100 × 1200 mm and main material of Particle‑board (PB). Load capacity: 204 kg. Certifications: Two-tone,taupe-light,grey,finish,modular,L-shaped,workstation,desk-mounted,curved,privacy,screen,integrated,fixed,side,storage,cabinet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2450 x 2100 x 1200 mm | |
|---|---|---|
| Primary work surface height | 750 mm | |
| Worktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Knee clearance height under work surface | 673 mm | |
| Primary worktop width | 1500 mm | |
| Primary worktop depth | 700 mm | |
| Side return cabinet width | 1200 mm | |
| Side return cabinet depth | 500 mm | |
| Side return cabinet total height | 1200 mm | |
| Curved privacy divider height above worktop | 450 mm | |
| Cable grommet diameter | 60 mm | |
| Cantilever metal leg diameter | 50 mm | |
| Open storage shelf clearance | 250 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 204 kg | |
|---|---|---|
| Drawer slide load rating | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Leveler foot adjustment range | 15 mm | |
| Unit net weight | 159 kg | |
| Laminate surface scratch resistance | 3000 cycles | |
| Recommended user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | Thermally fused taupe wood-grain laminate over E0-grade particle board | |
|---|---|---|
| Cabinet panels | Light grey lacquered MDF and particle board | |
| Support frame and legs | Powder-coated cylindrical steel tubing | |
| Modesty panel | Matte grey powder-coated steel panel | |
| Privacy divider | Fabric-upholstered curved panel with acoustic padding | |
| Hardware components | Zinc-plated steel connection hardware, keyed drawer lock, nylon leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated storage layout | 2 upper open shelves, central open niche, 1 lockable utility drawer, 2 lower closed cabinet doors, vertical open side shelves | |
|---|---|---|
| Cable management system | Desk surface cable tray, integrated grommet pass-through, under-desk cable routing channel | |
| Levelling adjustment | Adjustable nylon feet on cabinet base to stabilise unit on uneven floors | |
| Privacy screening | Curved upholstered desktop divider blocks direct line of sight between adjacent seated staff |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff workstations | Provides individual visual privacy and on-desk storage for open office layouts | |
|---|---|---|
| Individual dedicated work zones | Suitable for single employee daily task work, document processing and computer use |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables – Part 1: Dimensions, applicable to work surface height and clearance validation | |
|---|---|---|
| EN 527-2:2016 | Office work tables – Part 2: Mechanical safety requirements, applicable to structural stability testing | |
| EN 1335-2:2018 | Office work seating reference standard for complementary chair clearance compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to worktop load, durability and stability performance benchmarks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage cabinets standard, applicable to drawer and door cycle performance requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and cabinet structural integrity | |
|---|---|---|
| GB/T 3327-2020 | Performance requirements for office desks and tables, applicable to worktop load and stability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet structural integrity; 2. GB/T 3327-2020: Performance requirements for office desks and tables, applicable to worktop load and stability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
