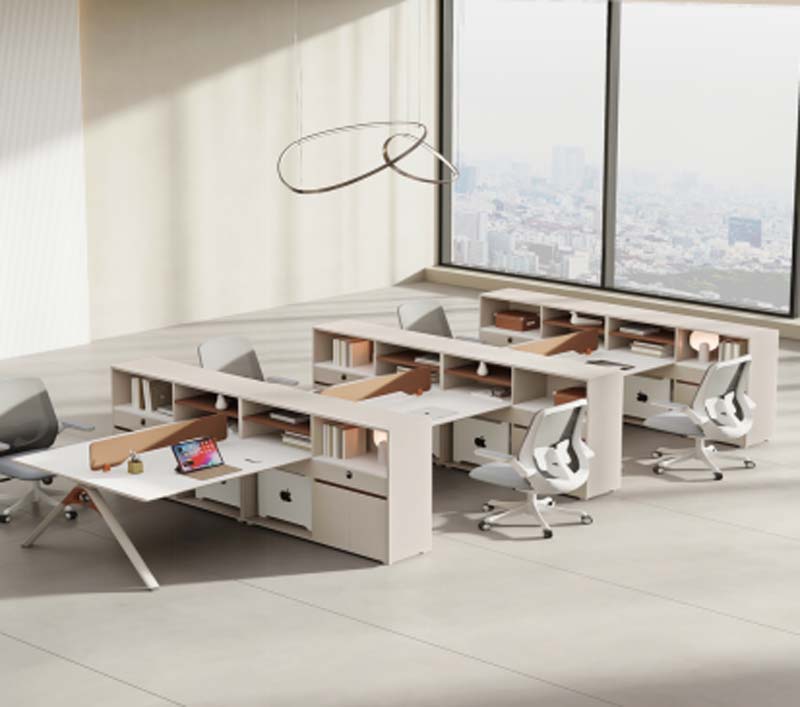

Product supplier6-Person Face-to-Face Modular Office Workstation Cluster with Integrated Storage, E1-grade melamine-faced particle board (MFC)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4080 × 1200 × 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Per-seat work surface size | 1200 x 600 mm | |
| Desktop privacy screen height | 300 mm | |
| Central divider shelf height | 750 mm | |
| Knee clearance height under desk | 650 mm | |
| Knee clearance depth per seat | 450 mm | |
| Work surface panel thickness | 25 mm | |
| Central divider panel thickness | 60 mm | |
| PVC edge banding thickness | 2 mm | |
| Steel end leg section size | 40 x 35 mm | |
| Steel leg wall thickness | 1.8 mm | |
| Cable grommet diameter | 80 mm | |
| Mobile pedestal height under desk | 600 mm | |
| Central shelf cubby internal size | 300 x 300 x 300 mm | |
| Finished Top Thickness | 50 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 420 kg | |
|---|---|---|
| Single work surface static load capacity | 120 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance rating | 2000 cycles | |
| Recommended user capacity | 6 people | |
| Standard product warranty | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1-grade melamine-faced particle board (MFC) | |
|---|---|---|
| Edge finishing | 2mm thick PVC edge banding applied with industrial adhesive | |
| End support legs | Powder-coated matte light grey steel splayed X-frame | |
| Central divider frame | Melamine-faced engineered wood panel with warm wood-tone accent trim | |
| Desktop side privacy screens | Warm brown wood-laminate rigid panel with metal mounting clips | |
| Mobile pedestal construction | Melamine-faced MFC with 3 drawers (box/file/utility) and lock | |
| Cable management components | ABS plastic cable raceways and grommets | |
| Shelf surfaces in central divider | Warm brown melamine-laminated engineered wood | |
| Drawer hardware | Cold-rolled steel ball-bearing drawer slides with integrated locks | |
| Foot glides on support frames | High-density nylon adjustable leveling glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Layout configuration | Linear dual-row face-to-face 6-seat cluster, scalable for additional modular units | |
|---|---|---|
| Under-desk storage | One lockable 3-drawer mobile pedestal per seat for stationery and A4/folio file storage | |
| Central integrated storage | Dual-sided open cubby shelves running full cluster length for shared document/supply access | |
| Privacy separation | Low desktop side screens block direct sightlines between adjacent side-by-side users | |
| Cable management | Underside raceways and desk-top grommets route power/data cables from floor to work surface | |
| Leveling adjustment | Adjustable nylon foot glides compensate for uneven floor surfaces up to 10mm height difference | |
| Pedestal mobility | Rolling pedestals fitted with 4 casters for easy repositioning under the desk | |
| Assembly structure | Knock-down cam-lock and bolt assembly for on-site installation and reconfiguration | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Note on logistics values | All logistics values are procurement engineering s, not supplier-measured data | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan corporate offices | Suits 6-person team zones in general open office work areas for administrative and task work | |
|---|---|---|
| Co-working flexible workspaces | Modular design supports reconfiguration for growing co-working operator teams | |
| Startup and tech firm work areas | Modern light two-tone aesthetic fits contemporary creative office design schemes | |
| Staff team department zones | Shared central storage supports team access to common supplies and reference documents | |
| Project team workspaces | 6-seat layout accommodates cross-functional project teams sitting face-to-face for easy collaboration | |
| Commercial office fit-out projects | Standard dimensions align with typical commercial building grid and raised floor layouts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and dimensional requirements for work surfaces | |
|---|---|---|
| EN 527-2:2016 | Office work tables, mechanical safety and structural performance requirements | |
| EN 13986:2004 | Wood-based panels for construction, formaldehyde emission classification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products, performance and durability test standard for commercial desk systems | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units for office environments, performance test for pedestals and cabinets |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to engineered wood desk components | |
|---|---|---|
| GB/T 3327-2023 | Stability, strength and durability test methods for office desks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panel products, E1 grade requirement |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to engineered wood desk components; 2. GB/T 3327-2023: Stability, strength and durability test methods for office desks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products, E1 grade requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
