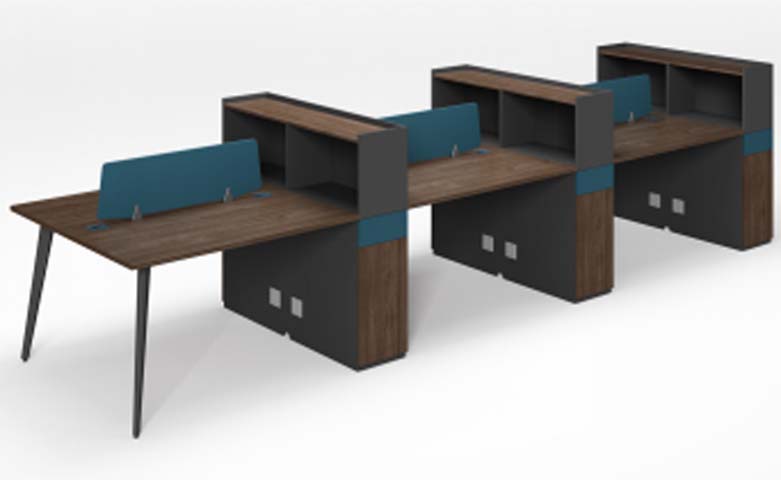

Three-Person Modular Panel Workstation with Integrated Storage and Privacy Screens (model WS-LINE3-PANEL-1200) is listed under Open Workstation. Dimensions: 4200 × 1400 × 1200 mm. Materials: 25 mm E1-class particleboard core with melamine laminate face and 2 mm PVC edgebanding. Load capacity: 100 kg distributed per position. Product Features: linear,workstation,three,work,positions,integrated,storage,fabric,privacy,screen,cable,management. This page consolidates 6 groups of specifications and GB standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-LINE3-PANEL-1200 |
| Primary Component Thickness | 40 mm according to load-bearing role | Hardware / Moving-part Clearance | 5 mm operating clearance |
| worksurface_static_load | 100 kg distributed per position | worksurface_point_load | 30 kg on a 200 mm diameter area |
| overhead_shelf_static_load | 20 kg per cubby shelf | privacy_screen_impact_resistance | 25 kg horizontal force without permanent deformation |
| pedestal_assembly_load | 40 kg total file and supply storage per lower cabinet | drawer_or_door_cycle_durability | 50,000 opening cycles per moving storage component |
| leveling_adjustment | 10 mm foot-height compensation for uneven floors | workstation_stability | No overturning under 200 N outward horizontal force at 1100 mm height |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| worksurface | 25 mm E1-class particleboard core with melamine laminate face and 2 mm PVC edgebanding | divider_screen | 32 mm plywood or particleboard core with high-density foam and blue woven polyester fabric |
| overhead_storage_panels | 25 mm E1-class melamine-faced particleboard with matching PVC edgebanding | lower_modesty_panels | 18 mm charcoal-gray melamine-faced particleboard with sealed exposed edges |
| vertical_end_panels | 36 mm laminated composite panel with charcoal face and woodgrain side reveal | accent_band | 18 mm blue melamine or fabric-wrapped composite strip at each vertical divider |
| individual_privacy_screen | Each 1400 mm-wide seat has a fixed 350 mm high upholstered divider for visual separation without blocking supervisor sightlines. | overhead_open_storage | Each shared divider provides two open cubbies, each 350 mm wide and 300 mm deep, for books and personal items. |
| cable_management | One 80 mm grommet per seat routes monitor and power cables from the work surface into the rear under-desk zone. | storage_privacy | The 450 mm high lower panel conceals bags and files and forms a rigid modesty barrier at each seated position. |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open-plan office | install one straight three-seat run for task-focused teams, using screens to reduce visual distraction. | Administrative work area | combine cable grommets, overhead cubbies, and lower storage for daily paperwork and computer work. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| worksurface_static_load | 100 kg distributed per position | |
|---|---|---|
| worksurface_point_load | 30 kg on a 200 mm diameter area | |
| overhead_shelf_static_load | 20 kg per cubby shelf | |
| privacy_screen_impact_resistance | 25 kg horizontal force without permanent deformation | |
| pedestal_assembly_load | 40 kg total file and supply storage per lower cabinet | |
| drawer_or_door_cycle_durability | 50,000 opening cycles per moving storage component | |
| leveling_adjustment | 10 mm foot-height compensation for uneven floors | |
| workstation_stability | No overturning under 200 N outward horizontal force at 1100 mm height | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| worksurface | 25 mm E1-class particleboard core with melamine laminate face and 2 mm PVC edgebanding | |
|---|---|---|
| divider_screen | 32 mm plywood or particleboard core with high-density foam and blue woven polyester fabric | |
| overhead_storage_panels | 25 mm E1-class melamine-faced particleboard with matching PVC edgebanding | |
| lower_modesty_panels | 18 mm charcoal-gray melamine-faced particleboard with sealed exposed edges | |
| vertical_end_panels | 36 mm laminated composite panel with charcoal face and woodgrain side reveal | |
| accent_band | 18 mm blue melamine or fabric-wrapped composite strip at each vertical divider |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| individual_privacy_screen | Each 1400 mm-wide seat has a fixed 350 mm high upholstered divider for visual separation without blocking supervisor sightlines. | |
|---|---|---|
| overhead_open_storage | Each shared divider provides two open cubbies, each 350 mm wide and 300 mm deep, for books and personal items. | |
| cable_management | One 80 mm grommet per seat routes monitor and power cables from the work surface into the rear under-desk zone. | |
| storage_privacy | The 450 mm high lower panel conceals bags and files and forms a rigid modesty barrier at each seated position. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | install one straight three-seat run for task-focused teams, using screens to reduce visual distraction. | |
|---|---|---|
| Administrative work area | combine cable grommets, overhead cubbies, and lower storage for daily paperwork and computer work. |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, recommended for panel dimensions, workmanship, and stability acceptance. | |
|---|---|---|
| GB/T 3325-2017 | Test methods for metal furniture, recommended for steel leg strength and coating durability checks. | |
| GB/T 10357.7-2013 | Furniture stability test method, recommended for anti-tip evaluation of desks and storage dividers. | |
| GB 18580-2017 | Formaldehyde emission control for wood-based panels, recommended as panel procurement acceptance criterion. | |
| GB/T 28202-2020 | Safety requirements for storage furniture, recommended for overhead shelf and cabinet anchorage review. |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, recommended for panel dimensions, workmanship, and stability acceptance.; 2. GB/T 3325-2017: Test methods for metal furniture, recommended for steel leg strength and coating durability checks.; 3. GB/T 10357.7-2013: Furniture stability test method, recommended for anti-tip evaluation of desks and storage dividers.; 4. GB 18580-2017: Formaldehyde emission control for wood-based panels, recommended as panel procurement acceptance criterion.; 5. GB/T 28202-2020: Safety requirements for storage furniture, recommended for overhead shelf and cabinet anchorage review.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
