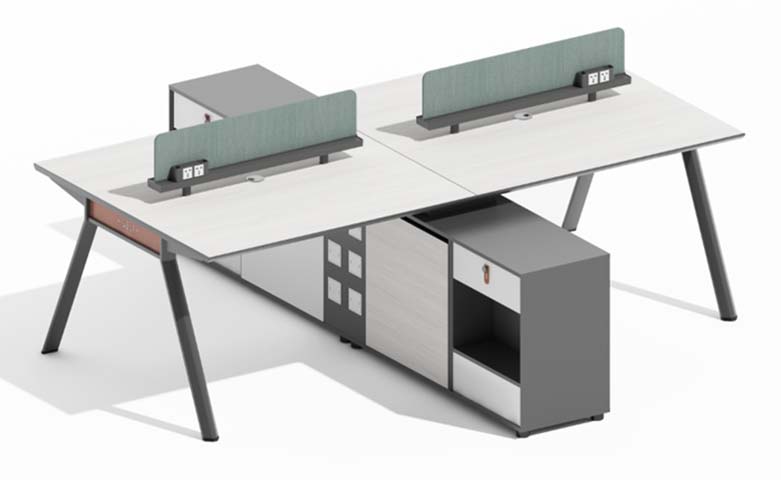

4-Person Face-to-Face Office Workstation with Central Storage and Privacy Dividers (model WS-4P-FTF-2800) is listed under Open Workstation, with overall dimensions of 2800 × 1600 × 750 mm and main material of Particle‑board (PB). Load capacity: 135 kg. Certifications: linear,layout,low,privacy,dividers,central,integrated,storage,angled,steel,legs,power,outlets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 1600 x 750 mm | |
|---|---|---|
| Worksurface thickness | 28 mm | |
| PVC edge banding thickness | 2 mm | |
| Privacy divider height above worksurface | 305 mm | |
| Single user worksurface dimensions | 1400 x 700 mm | |
| Knee clearance height under worksurface | 690 mm | |
| Knee clearance depth per user | 600 mm | |
| Central storage unit dimensions | 2600 x 400 x 600 mm | |
| Cable grommet diameter | 60 mm | |
| Steel leg tube wall thickness | 1.5 mm | |
| Steel cross-beam section | 40 x 40 x 1.5 mm | |
| Drawer front panel height | 150 mm | |
| Open storage shelf height | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit weight | 124 kg | |
|---|---|---|
| Per-span worksurface static load capacity | 135 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating for cabinet doors | 80000 cycles | |
| Recommended user weight capacity per seat | 150 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | 28mm melamine-faced particleboard core, 2mm PVC edge banding, scratch-resistant finish | |
|---|---|---|
| Frame and legs | 1.5mm thick cold-rolled steel tube, matte grey powder-coated finish, angled splayed outer legs | |
| Privacy dividers | Fabric-upholstered acoustic panel with dark grey metal mounting rail | |
| Central storage carcass | 18mm melamine-faced engineered wood, light wood and grey two-tone finish, lockable drawer cores | |
| Power modules | Recessed AC outlet units with 2 grounded sockets per module, mounted on divider rails | |
| Adjustable feet | Injection-molded polymer glides with height adjustment for uneven floors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm diameter worksurface grommets paired with under-desk central wire trays for concealed power/data routing | |
|---|---|---|
| Integrated power access | Two dual-socket AC power modules mounted on central dividers for shared access by opposite seated users | |
| Central storage layout | Combines lockable personal drawers, open storage cubbies, and a shared lockable cabinet compartment for team supplies | |
| Workstation layout | Four equal individual work zones arranged in two face-to-face pairs, separated by low privacy screens to reduce visual distraction |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Suitable for 4-seat team clusters to maximize space efficiency in general office areas | |
|---|---|---|
| Project team departments | Central storage and shared power supports collaborative project work for small workgroups |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks, safety and strength requirements for worksurface and frame | |
|---|---|---|
| EN 13501-1:2018 | Fire classification of construction products, applicable to melamine surface and fabric divider materials |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products standard, specifying strength, durability and stability requirements for office workstations |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worksurface and storage panel components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and leg components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worksurface and storage panel components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and leg components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
