Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Total static load capacity of worktop | 400 kg | |
|---|---|---|
| Single cabinet shelf static load | 30 kg | |
| Net weight per full workstation unit | 165 kg | |
| Recommended maximum user weight per seat | 110 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Divider panel impact resistance | 10 J | |
| Power socket rated current per module | 10 A | |
| Design service life | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop surface | 0.6mm thick melamine veneer on 25mm particleboard core, dark walnut finish, scratch-resistant | |
|---|---|---|
| Support legs | 1.5mm thick powder-coated light beige steel, angled splayed design, scratch-resistant matte finish | |
| Storage cabinet frame | 18mm thick melamine-faced particleboard, light beige finish, edge-banded with PVC trim | |
| Storage cabinet doors | 18mm thick melamine-faced particleboard, dark walnut finish, with recessed black plastic handles | |
| Desk divider panels | 5mm thick frosted acrylic privacy screens mounted on white steel brackets | |
| Desktop power modules | White ABS plastic housing with 3 universal AC outlets per module, mounted on divider brackets | |
| Leveling feet | Injection-molded black nylon adjustable feet with 10mm adjustment travel on cabinet bases | |
| Cabinet internal shelves | 18mm thick melamine-faced particleboard, fixed position in open storage bay | |
| Desk edge trim | 2mm thick PVC edge banding on all worktop exposed edges, impact-resistant | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

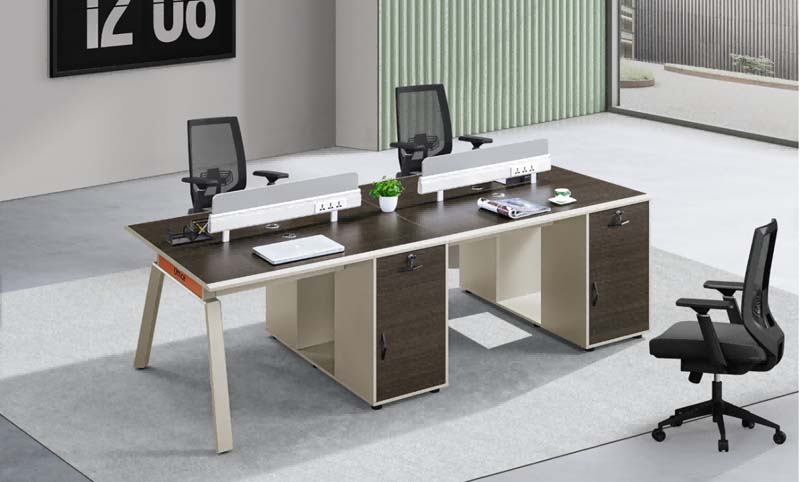

| Face-to-face 4-user layout | Two opposite rows of two work positions separated by central privacy dividers for open team offices | |
|---|---|---|
| Integrated desktop power access | One 3-outlet power module per two seats on divider brackets for device charging and computer power | |
| Cable management grommets | One round cable pass-through per work position to route cables from worktop to under-desk space | |
| Fixed under-desk storage per user | Each seat position includes one lockable door cabinet and one open storage shelf for personal items | |
| Floor leveling adjustment | Nylon adjustable feet on all cabinet bases to compensate for uneven office flooring | |
| Visual privacy partition | Frosted acrylic dividers reduce visual distraction between opposite facing users without blocking overhead light | |
| Freestanding modular connection | Two 2-person desk units join together to form 4-person configuration, expandable for larger teams | |
| Lockable cabinet access | Each door cabinet includes a key lock to secure personal office belongings | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open-plan corporate offices | Suitable for team work zones with 4 adjacent staff requiring shared surface and personal storage | |
|---|---|---|
| Small business work areas | Fits startup and small team spaces with limited floor area, integrating storage to reduce additional furniture needs | |
| Coworking spaces | Suitable for dedicated team desks in flexible coworking environments with lockable personal storage | |
| Government and institutional offices | Meets standard durability requirements for high-traffic daily office use over multi-year service life | |
| Call center work floors | Divider panels reduce cross-talk distraction while retaining team visibility for supervisor access |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applies to safety, strength and durability requirements for office work tables | |
|---|---|---|
| EN 15372:2008+A1:2016 | Applies to strength and durability requirements for office storage furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to size and stability requirements for office desks and workstations | |
|---|---|---|
| GB/T 3327-2016 | Applies to mechanical performance requirements for desk storage cabinets | |
| GB 18584-2001 | Applies to formaldehyde emission limits for wood-based panel furniture components |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to size and stability requirements for office desks and workstations; 2. GB/T 3327-2016: Applies to mechanical performance requirements for desk storage cabinets; 3. GB 18584-2001: Applies to formaldehyde emission limits for wood-based panel furniture components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
