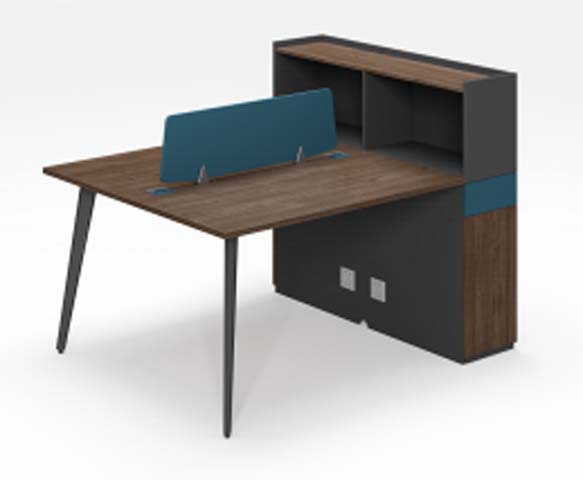

Two-Person Workstation Desk with Divider Screen and Rear Storage Hutch (model WS-2P-HUTCH-2400-WAL-BLU) is listed under Open Workstation. Dimensions: 2400 x 1400 x 1200 mm. Materials: 25 mm wood-based panel with walnut wood-grain melamine face and matching impact-resistant edge banding. Load capacity: 80 kg. Product Features: walnut,wood,grain,charcoal,storage,cabinet,blue,fabric,divider,panel,hutch,splayed,metal,legs,two-person,workstation. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-2P-HUTCH-2400-WAL-BLU |
| Overall dimensions | 2400 x 1400 x 1200 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Net weight | 95 kg |
| Distributed worktop load | 80 kg | Per-user point load | 40 kg |
| Hutch shelf load | 15 kg per shelf | Recommended users | 2 users |
| Static stability margin | 15 kg horizontal force at 1100 mm | Drawer or door cycle target | 50,000 cycles |
| Warranty target | 5 years | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surface | 25 mm wood-based panel with walnut wood-grain melamine face and matching impact-resistant edge banding |
| Storage panels | 18 mm charcoal and walnut-look melamine-faced particleboard or MDF panels | Support legs | Black powder-coated steel splayed legs, 40 mm visible section, with floor-contact glides |
| Divider screen | Blue upholstered tackable panel over a rigid board core, fitted with two silver metal desk clamps | Hutch and cabinet hardware | Steel hinges, handles or access fittings with silver or dark powder-coated finish; two rectangular front plates are visible |
| Cable management fittings | Two blue rectangular desk grommets and a rear cabinet routing zone visible behind the work surface | Two-person work layout | Two 1200 mm work zones share one continuous front top, with the low divider providing visual separation without blocking conversation |
| Privacy screen mounting | The 1200 x 320 mm upholstered screen is clamp-mounted through or onto the worktop by two metal supports, allowing removal without a permanent panel joint | Cable routing | Two blue grommets pass monitor and power cables from the work surface toward the rear cabinet, which provides a vertical chase into the lower storage body |
| Integrated storage support | The right floor-standing cabinet supports the return top and combines two upper open hutch bays with a lower enclosed storage or CPU zone | Main carton dimensions | 2450 x 760 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan office | Suits two adjacent staff in open-plan areas because the low screen gives visual separation while preserving supervisor sightlines and team communication |
| Project or administrative team zone | Fits documentation, dual monitors and shared storage where users need an integrated hutch and cable routing rather than a simple writing table | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1400 x 1200 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 95 kg | |
|---|---|---|
| Distributed worktop load | 80 kg | |
| Per-user point load | 40 kg | |
| Hutch shelf load | 15 kg per shelf | |
| Recommended users | 2 users | |
| Static stability margin | 15 kg horizontal force at 1100 mm | |
| Drawer or door cycle target | 50,000 cycles | |
| Warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-based panel with walnut wood-grain melamine face and matching impact-resistant edge banding | |
|---|---|---|
| Storage panels | 18 mm charcoal and walnut-look melamine-faced particleboard or MDF panels | |
| Support legs | Black powder-coated steel splayed legs, 40 mm visible section, with floor-contact glides | |
| Divider screen | Blue upholstered tackable panel over a rigid board core, fitted with two silver metal desk clamps | |
| Hutch and cabinet hardware | Steel hinges, handles or access fittings with silver or dark powder-coated finish; two rectangular front plates are visible | |
| Cable management fittings | Two blue rectangular desk grommets and a rear cabinet routing zone visible behind the work surface |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-person work layout | Two 1200 mm work zones share one continuous front top, with the low divider providing visual separation without blocking conversation | |
|---|---|---|
| Privacy screen mounting | The 1200 x 320 mm upholstered screen is clamp-mounted through or onto the worktop by two metal supports, allowing removal without a permanent panel joint | |
| Cable routing | Two blue grommets pass monitor and power cables from the work surface toward the rear cabinet, which provides a vertical chase into the lower storage body | |
| Integrated storage support | The right floor-standing cabinet supports the return top and combines two upper open hutch bays with a lower enclosed storage or CPU zone |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 2450 x 760 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits two adjacent staff in open-plan areas because the low screen gives visual separation while preserving supervisor sightlines and team communication | |
|---|---|---|
| Project or administrative team zone | Fits documentation, dual monitors and shared storage where users need an integrated hutch and cable routing rather than a simple writing table |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety, strength and durability requirements, applicable to the seated workstation top and support structure | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables dimensional safety requirements, useful for verifying 750 mm work height and clear knee space | |
| EN 16139:2013+A1:2024 | Strength, durability and safety requirements for non-domestic seating-related support furniture where used in linked bench systems | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction use, suitable as a panel-performance reference when supplier declares the substrate | |
| EN 1022:2018 | Seating stability is not directly applicable to the desk, but may be referenced when testing the complete workstation with attached screens |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, suitable for vertical load, horizontal stability, leg strength and cyclic fatigue acceptance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to the integrated cabinet and hutch shelf load and stability | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, usable only if the supplier declares panel emissions, materials and facility scores | |
| ANSI/BIFMA G1-2013 | Ergonomics guideline, useful for confirming the seated work height and clearance against intended task-chair dimensions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel dimensions, edge sealing, finish and structural stability inspection | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel leg coating, welding or joint quality and load testing | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, suitable as a panel procurement and incoming-inspection requirement | |
| GB/T 10357.5-2011 | Furniture mechanical surface test for strength, appropriate for desk-top static load and cabinet support verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge sealing, finish and structural stability inspection; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel leg coating, welding or joint quality and load testing; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, suitable as a panel procurement and incoming-inspection requirement; 4. GB/T 10357.5-2011: Furniture mechanical surface test for strength, appropriate for desk-top static load and cabinet support verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
