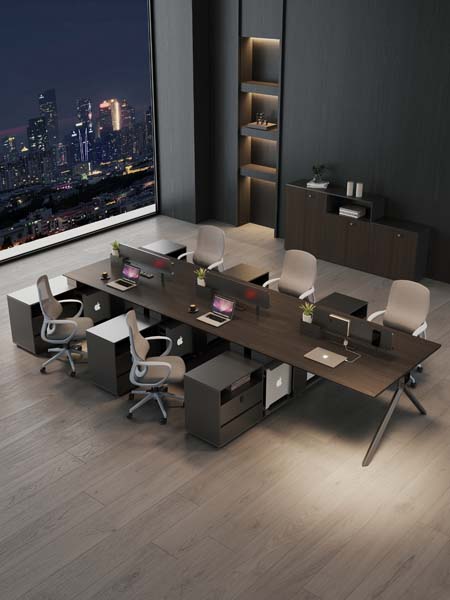

Name: 6-Person Double-Sided Modular Open-Plan Office Workstation with Privacy Dividers and Mobile Storage Pedestals
Brand: Fanshidun
SKU: KHD1Y6

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4080 × 1600 × 750 mm
Overall footprint	4080 x 1600 x 750 mm
Per-workstation width	1360 mm
Per-side work surface depth	800 mm
Under-desk knee clearance height	650 mm
Desktop thickness	25 mm
Center privacy divider height	350 mm
Mobile storage pedestal dimensions	725 x 420 x 480 mm
End leg splay width	700 mm
Cable grommet diameter	60 mm
PVC edge banding thickness	2 mm
Divider panel thickness	45 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static uniform load	120 kg
Single pedestal drawer load capacity	30 kg
Drawer slide cycle rating	50000 cycles
Recommended maximum user weight per position	110 kg
Surface scratch resistance	2000 revolutions
Net weight per complete workstation	280 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm melamine-faced chipboard with dark walnut matte finish
Support frame and legs	1.2mm thick powder-coated steel, dark grey finish
Center privacy divider	Frosted semi-transparent acrylic panel with aluminum trim
Mobile storage pedestals	18mm thick melamine-faced chipboard with lockable drawers
Desktop edge banding	2mm thick impact-resistant PVC matching desktop color
Pedestal casters	50mm diameter nylon swivel casters with brake locks
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Cable management components	ABS plastic grommets and steel under-desk cable trays
Pedestal drawer fronts	Matte dark grey laminated MDF
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Face-to-face 6-user work layout	3 work positions per long side separated by central divider
Mobile pedestal reconfiguration	Wheeled 3-drawer units roll freely under each desk position
Integrated CPU storage bay	Dedicated open slot adjacent to each pedestal holds desktop computer towers
Cable routing system	Desktop grommets feed cables to under-desk trays
Privacy screen separation	Low center divider blocks direct sightlines between opposite-facing users
Lockable pedestal drawers	Keyed lock secures top pencil drawer and lower file drawers
Knock-down assembly	Bolt-together frame and panel construction with pre-drilled holes
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office zones	Arranged in rows for 6-person teams, supports daily desk-based administrative and computer work
Startup and co-working spaces	Flexible modular layout suits dynamic team sizes and regular layout reconfiguration
Back-office administrative departments	Individual storage and CPU bays support finance, HR, and operations staff workflows
Call center and shared service centers	Low dividers balance visual privacy and team visibility for supervisory oversight
Recommended pairing	Match with ergonomic mid-back mesh task chairs and monitor arms for full workstation setup
Layout spacing requirement	Minimum 1000mm clearance around desk perimeter for chair movement and pedestrian access

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for commercial use
EN 527-2:2016	Office work tables, dimensional and adjustability requirements for seated work
EN 1335-2:2009	Office work seating, safety requirements (reference for matching task chair compatibility)

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to static load, stability, and durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktop and pedestal panels
GB/T 3327-2016	Performance requirements for office desks, applicable to structural stability and load rating
GB 18584-2001	Limit of formaldehyde emission for wooden furniture, required for indoor office air quality

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and pedestal panels;
2. GB/T 3327-2016: Performance requirements for office desks, applicable to structural stability and load rating;
3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, required for indoor office air quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-6P-DS-4080

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-6P-DS-4080

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-6P-DS-4080Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun WS-6P-DS-4080 is a double-sided modular open-plan office workstation built to accommodate six users in a face-to-face bench configuration, with three work positions aligned along each long side separated by a central low privacy divider. The divider, crafted from frosted semi-transparent acrylic trimmed with aluminum, sits at a height that blocks direct sightlines between opposite-facing users while retaining open sightlines across the broader workspace for team visibility and supervisory oversight. The work surfaces feature a dark walnut matte melamine finish with matching 2mm impact-resistant PVC edge banding, supported by a dark grey powder-coated steel frame and legs. Each side of the workstation offers an 800mm deep work surface, with 650mm of under-desk knee clearance, and integrated ABS plastic cable grommets that route cords to steel under-desk cable trays for tidy wire management. The complete unit has an overall footprint of 4080 x 1600 x 750 mm, with a 25mm thick desktop, and end legs splayed to 700mm wide for stable support. Each user position is paired with a matching mobile storage pedestal, constructed from 18mm melamine-faced chipboard with matte dark grey laminated MDF drawer fronts. The three-drawer units roll on 50mm nylon swivel casters with brake locks, using cold-rolled steel ball-bearing full-extension slides, and include a keyed lock that secures the top pencil drawer and lower file drawers. A dedicated open CPU storage bay sits adjacent to each pedestal slot to hold desktop computer towers, and the wheeled pedestals can be repositioned freely under the desk to suit user preference. The workstation uses knock-down bolt-together construction with pre-drilled components, requiring assembly on site. It is well suited for open-plan corporate office zones arranged for six-person teams, flexible startup and co-working spaces that require regular layout adjustments, back-office administrative departments including finance, HR and operations, and call center or shared service environments that balance individual privacy with team oversight. When planning installation, maintain a minimum 1000mm clearance around the desk perimeter to support chair movement and pedestrian access, and pair the unit with ergonomic mid-back mesh task chairs and monitor arms for a complete functional setup. Procurement teams should note the unit ships across multiple cartons, with packaged gross weight of 180kg per set and total packaging volume of 1m³ per set, allowing for straightforward transport and staged deployment across large office fit-outs. The load-rated surfaces and hardware support consistent daily use for standard desk-based administrative and computer work.
