PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LWD-PED-1400-WL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LWD-PED-1400-WL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LWD-PED-1400-WLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

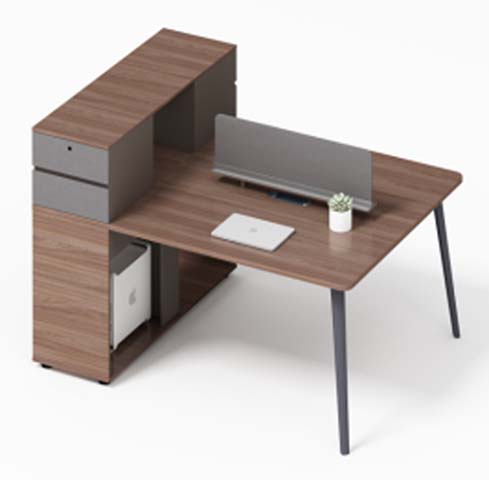

The Walnut L-Shaped Workstation Desk with Integrated Storage Pedestal presents a structured corner layout suited to focused work, document handling, and computer-based tasks. Its walnut-look wood-composite surfaces create a warm office appearance, while charcoal grey drawer fronts, dark grey powder-coated steel legs, and a grey fabric screen add a layered, contemporary contrast. The L-shaped form gives a main work side and a return with pedestal storage, supporting an organized footprint rather than a collection of separate pieces. Construction centers on wood-composite panels with a 25 mm primary panel thickness and a load-bearing top that may use a 40 mm composite build-up. The finished top is 50 mm thick and edged with 2 mm edge banding. Four steel legs support the workstation; the main leg section measures 80 mm with a 2 mm metal wall, using cold-rolled steel with a dark grey powder-coated finish. Main connections reference M6 to M8 fixings with at least two fixing points per main support. The visual specification is available within a recommended selection of six top finishes and three frame colors, with walnut-look panels, charcoal fronts, dark grey legs, and a grey fabric divider shown here. The integrated pedestal includes two drawers and a CPU bay, keeping personal or office materials and the computer tower within the desk footprint. The fabric screen acts as a divider and softens the workstation boundary in shared settings. Each main seat position has 680 mm of knee clearance height and 900 mm of clearance width. An 80 mm cable opening and a 120 mm deep cable tray help route power and data leads; the tray has a reference capacity for ten cables and a 10 kg tray load. The top has a static load reference of 150 kg uniformly distributed. Drawer slides are referenced at 45 kg per pair and 50,000 cycles, while the hinge opening target is 80,000 cycles and the finish-system target is at least 4,000 abrasion cycles. Main joints are intended to support five controlled assembly cycles. This desk fits private offices, open-plan work zones, reception workrooms, educational staff areas, hotel business centers, and substantial home offices. The integrated divider makes it particularly useful where visual separation is needed without enclosing the user. Buyers should confirm the selected finish and frame color, room access, assembly planning, and warranty terms before purchase. The recommended procurement warranty covers the structure for five years, hardware for three years, and finish for two years. Packaging references vary between concise and detailed logistics data, so carton count, 180 kg gross weight, 1 cubic meter volume, and a 40-minute assembly time should be verified for the ordered shipment.

Walnut L-Shaped Workstation Desk with Integrated Storage Pedestal Specifications
