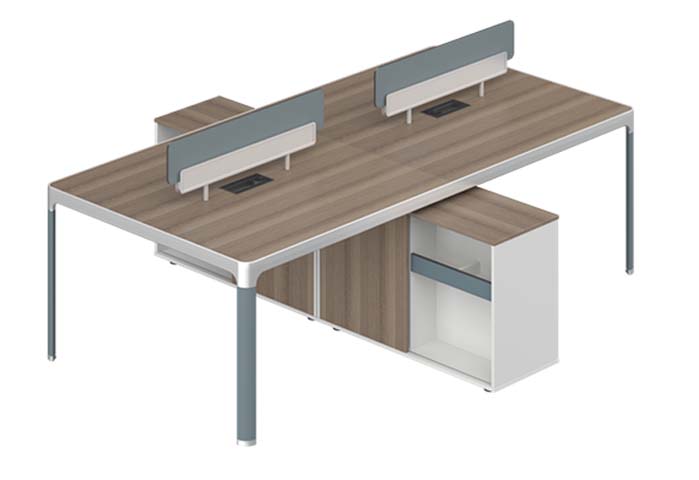

4-Person Face-to-Face Open Office Bench Workstation with Center Dividers and Under-Desk Storage (model OFW-BN4-2800-1200-WDGY) is listed under Open Workstation, with overall dimensions of 2800 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Wood-grain,finish,Steel,frame,Desk-mounted,privacy,dividers,Integrated,cable,management,Under-desk,mobile,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2800 x 1200 x 750 mm | |
|---|---|---|
| Per-seat worksurface dimensions | 1200 x 600 mm | |
| Desktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Seated knee clearance height | 675 mm | |
| Center privacy divider dimensions (per unit) | 1200 x 300 x 18 mm | |
| Desktop cable grommet dimensions | 200 x 100 mm | |
| Cylindrical steel leg diameter | 50 mm | |
| Closed under-desk storage cabinet dimensions | 1200 x 400 x 650 mm | |
| Open under-desk storage unit dimensions | 800 x 400 x 650 mm | |
| Storage caster diameter | 50 mm | |
| Under-desk cable tray clearance | 100 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat desktop static load capacity | 120 kg | |
|---|---|---|
| Drawer/slide cycle rating | 50000 cycles | |
| Total workstation net weight | 145 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Surface scratch resistance | 2000 revolutions | |
| Commercial warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop surface | Thermally fused melamine over E1 grade particleboard core | |
|---|---|---|
| Support legs | Powder-coated grey steel tube with silver ABS end caps | |
| Center privacy dividers | Dual-tone rigid composite panel with grey upper and off-white lower section | |
| Storage cabinet frames | Melamine-faced engineered wood with white side panels and wood-grain door fronts | |
| Storage casters | Nylon swivel casters with rubber rolling surface | |
| Edge trim | 2mm PVC edge banding with rounded profile |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed desktop cable ports route wiring to concealed under-desk tray | |
|---|---|---|
| Privacy screening | Center dividers block direct line of sight between facing seated users | |
| Storage mobility | Open under-desk storage unit rolls on casters for flexible position adjustment | |
| Modular expansion | Frame includes connection brackets to extend runs for additional workstations |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office work areas | Suitable for four staff in high-density collaborative office layouts | |
|---|---|---|
| Startup and co-working spaces | Modular design allows quick reconfiguration of workstations |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements | |
|---|---|---|
| EN 527-2:2019 | Office work tables, mechanical safety requirements and test methods | |
| EN 1335-1:2020 | Office work furniture, seating dimensional coordination for desk clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, covering static load and stability for office workstations | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, covering cabinet strength and caster durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel leg frames | |
| GB 18584-2001 | Indoor decoration material limit of formaldehyde emission for wood furniture | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, static load and stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and cabinet components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel leg frames; 3. GB 18584-2001: Indoor decoration material limit of formaldehyde emission for wood furniture; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, static load and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
