PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1250 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	2 users
Desktop distributed load	80 kg per user side
Upper shelf distributed load	15 kg per shelf segment
Open CPU compartment load	20 kg
Lower cabinet shelf load	25 kg
Product net weight	105 kg
Drawer static load	10 kg
Leveling adjustment per glide	10 mm
Recommended user weight per station	120 kg
Warranty target	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and cabinet panels	25 mm melamine-faced particleboard or MDF with sealed edges
Center privacy screen	Black or smoke-gray tempered glass with polished edges
Desk legs	Polished chrome-plated steel tube with splayed geometry
Upper dividers and end panels	Gray painted or melamine-faced composite panels with rounded top corners
Edge protection	2 mm PVC edge banding on work surfaces and 1 mm PVC on cabinet panels
Hardware and glides	Zinc-plated hinges, lock cylinder, cam-fix connectors, and nylon leveling glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person work layout	Back-to-back privacy divider separates two task zones while the shared storage run organizes files and devices
Cable and computer management	Rear open CPU bay with a circular cable grommet routes power and data from the desktop to equipment below
Secure personal storage	Right-hand lockable drawer and lower door cabinet provide secured stationery and document storage
Visual privacy and screening	Tempered-glass center screen limits direct sightlines while retaining light transmission between users

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suited to two-person clusters where privacy screening and immediate personal storage are required
Administrative or supervisory workspace	Fits accounts, sales, or administrative staff using laptops, documents, and a compact CPU tower

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Apply dimensional, structural, and safety requirements for office work surfaces
EN 527-2 mechanical safety	Recommend strength, durability, and stability tests for desk structures
EN 15372 furniture durability	Use strength, durability, and stability requirements for non-domestic storage furniture
EN 12600 glass impact guidance	Use pendulum-impact classification when specifying tempered privacy glass

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural guidance	Apply general technical requirements for wooden furniture dimensions, tolerances, and workmanship
GB/T 3325 metal furniture verification	Use for metal furniture strength, coating, and structural inspection where steel supports are part of the acceptance scope
GB/T 10357.6 static load test	Recommended desk static-load verification for the work surface and support structure
GB 18580 emission control	Use as the formaldehyde emission acceptance reference for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural guidance: Apply general technical requirements for wooden furniture dimensions, tolerances, and workmanship;
2. GB/T 3325 metal furniture verification: Use for metal furniture strength, coating, and structural inspection where steel supports are part of the acceptance scope;
3. GB/T 10357.6 static load test: Recommended desk static-load verification for the work surface and support structure;
4. GB 18580 emission control: Use as the formaldehyde emission acceptance reference for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2800-WAL-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2800-WAL-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2800-WAL-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

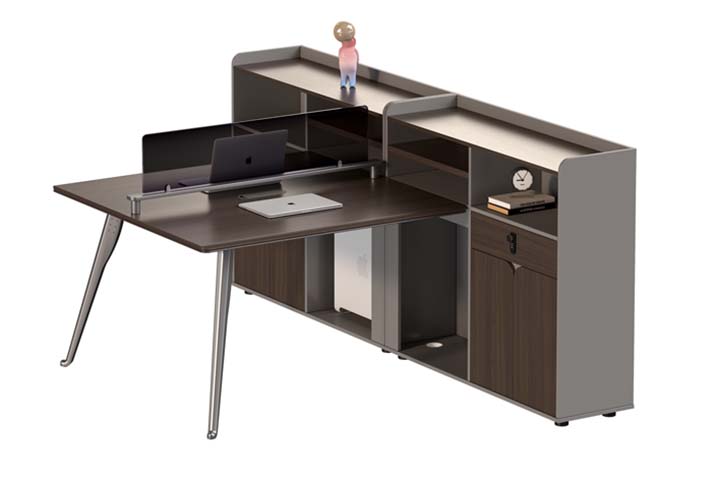

The Two-Person Panel Workstation with Side Storage and Overhead Shelves is a modern office workstation designed for two users in a compact, organized layout. Its back-to-back arrangement places a tempered-glass privacy divider between the task zones, limiting direct sightlines while preserving light transmission and visual openness. The workstation pairs the main work surfaces with a shared side storage run, overhead shelving, upper dividers, and end panels, producing a structured benching form rather than two separate desks. Rounded top corners and gray panel finishes give the system a clean, commercial appearance, while splayed polished chrome-plated steel legs add a light visual profile and supportive geometry. Construction uses melamine-faced wood-based panels for the desktop and cabinet body, specified as 25 mm melamine-faced particleboard or MDF with sealed edges. Work surfaces include 2 mm PVC edge banding, with 1 mm PVC edge banding on cabinet panels. The center screen is black or smoke-gray tempered glass with polished edges. Upper dividers and end panels use gray painted or melamine-faced composite panels. Additional construction details include zinc-plated hinges, a lock cylinder, cam-fix connectors, and nylon leveling glides. The finished top is 50 mm thick, and the chrome-plated steel support has an 80 mm main section with a 2 mm metal wall. Practical function is built around daily desk work, filing, computer placement, and cable control. Each main seat provides 680 mm high and 900 mm wide knee clearance. An 80 mm circular cable grommet connects the desktop to a rear open CPU bay, while the cable tray offers 120 mm of depth for routing power and data. The right-hand lockable drawer and lower door cabinet support secure storage for stationery and documents, with open and shelved storage providing space for devices, files, and reference materials. The desktop is rated for an 80 kg distributed load per user side; upper shelf segments support 15 kg, the open CPU compartment supports 20 kg, the lower cabinet shelf supports 25 kg, and the drawer supports a 10 kg static load. This workstation is suited to open-plan office benching, two-person clusters, administrative work areas, accounts or sales teams, and supervisory roles using laptops, documents, and compact CPU towers. It is also suitable for residential workrooms where two users need integrated storage and a defined shared layout. Procurement planning should account for the unbranded product identity, model WS-2P-2800-WAL-GRY, 105 kg net weight, assembly requirement, and multi-carton delivery. Installation time is referenced at 40 minutes per set, and purchasers should confirm final carton count, packaging dimensions, access routes, leveling conditions, and storage-side orientation before ordering.

Two-Person Panel Workstation with Side Storage and Overhead Shelves Specifications
