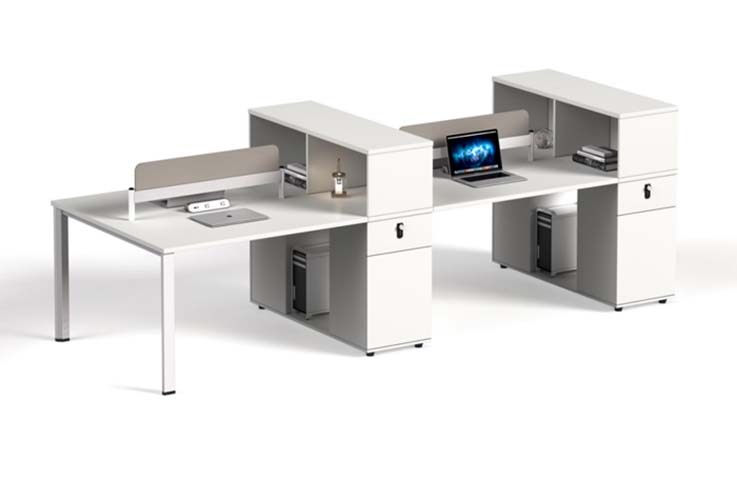

Four-Person Panel-Link Workstation with Central Storage Pedestals and Desktop Dividers (model WS-4P-CAB-2800) is listed under Open Workstation. Dimensions: 2800 × 1400 × 1100 mm. Materials: 25 mm melamine-faced particleboard or MDF panel with sealed PVC edge banding. Load capacity: 80 kg per seat. Product Features: four-seat,workstation,layout,storage,fabric,divider,metal,leg,support,white,and,taupe,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS-4P-CAB-2800 |
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Net weight | 145 kg |
| Distributed worktop load capacity | 80 kg per seat | Recommended users | 4 persons |
| Work surface distributed pressure allowance | 0.35 N/mm2 over loaded contact area | Recommended seat width allocation | 700 mm per person |
| Adjustable levelling range | 10 mm per foot | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Hinge Opening Life | Acceptance target 80000 cycles |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | Worktop construction | 25 mm melamine-faced particleboard or MDF panel with sealed PVC edge banding |
| Cabinet carcass | 18 mm white melamine-faced engineered wood with matching edge banding | Support legs | 40 x 40 mm powder-coated square steel tubing with silver finish |
| Privacy divider panel | 30 mm padded composite board upholstered in taupe woven fabric | Hardware and locks | Black key-lock insert on each shallow drawer with steel screws and connecting brackets |
| Feet and protective trims | Black injection-moulded polymer glides with anti-slip pads and steel threaded stems | Four-position face-to-face working layout | Four 1400 x 700 mm work positions share two central divider cabinets for compact team seating |
| Lockable personal drawer | One 180 mm high lockable drawer at each central pedestal secures documents and personal items | Open desktop storage cubby | Each seat has an upper open compartment sized for books, files or tabletop accessories |
| Under-desk equipment bay | Open lower cavity accommodates a vertical desktop computer tower while preserving the main knee zone | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office cluster | Suitable for four-person administrative or processing teams where personal drawers and low screens reduce visual distraction | Call centre or shared operations area | Appropriate where laptop or thin-client devices are used and CPU bays, desk-level storage and compact footprint are required |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 145 kg | |
|---|---|---|
| Distributed worktop load capacity | 80 kg per seat | |
| Recommended users | 4 persons | |
| Work surface distributed pressure allowance | 0.35 N/mm2 over loaded contact area | |
| Recommended seat width allocation | 700 mm per person | |
| Adjustable levelling range | 10 mm per foot | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25 mm melamine-faced particleboard or MDF panel with sealed PVC edge banding | |
|---|---|---|
| Cabinet carcass | 18 mm white melamine-faced engineered wood with matching edge banding | |
| Support legs | 40 x 40 mm powder-coated square steel tubing with silver finish | |
| Privacy divider panel | 30 mm padded composite board upholstered in taupe woven fabric | |
| Hardware and locks | Black key-lock insert on each shallow drawer with steel screws and connecting brackets | |
| Feet and protective trims | Black injection-moulded polymer glides with anti-slip pads and steel threaded stems |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-position face-to-face working layout | Four 1400 x 700 mm work positions share two central divider cabinets for compact team seating | |
|---|---|---|
| Lockable personal drawer | One 180 mm high lockable drawer at each central pedestal secures documents and personal items | |
| Open desktop storage cubby | Each seat has an upper open compartment sized for books, files or tabletop accessories | |
| Under-desk equipment bay | Open lower cavity accommodates a vertical desktop computer tower while preserving the main knee zone |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office cluster | Suitable for four-person administrative or processing teams where personal drawers and low screens reduce visual distraction | |
|---|---|---|
| Call centre or shared operations area | Appropriate where laptop or thin-client devices are used and CPU bays, desk-level storage and compact footprint are required |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk safety | Suitable safety, dimensional and structural reference for non-domestic work surfaces | |
|---|---|---|
| EN 527-2 mechanical test methods | Recommended test basis for desk strength, durability and stability acceptance | |
| EN 16139 seating-adjacent furniture strength | Non-domestic seating-area furniture strength reference where divider panels are user-contact components | |
| EN 13986 wood-based panels | Panel-performance reference for melamine-faced engineered board used in tops and cabinets | |
| EN 1022 stability test method | Useful stability-validation reference for the complete freestanding workstation assembly |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 desk and tablet products | Applicable standards and test results require confirmation | |
|---|---|---|
| ANSI/BIFMA X5.9 storage units | Applicable to lockable drawers, open shelves and cabinet carcass performance | |
| BIFMA E3 furniture sustainability option | Optional panel, metal and packaging material-evaluation framework for sustainable procurement |
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural suitability | General technical standard for wooden furniture cabinets applicable to carcass, drawer and fit checks | |
|---|---|---|
| GB/T 3325 metal furniture suitability | Applicable to the steel support legs, brackets and coated metal load-bearing components | |
| GB/T 10357.6 static load test | Applicable standards and test results require confirmation | |
| GB 18580 formaldehyde emission | Relevant emission-control reference for engineered-wood panels used in indoor furniture | |
| GB/T 24821 fabric upholstery reference | Applicable where the padded divider uses furniture upholstery fabric and laminated foam |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural suitability: General technical standard for wooden furniture cabinets applicable to carcass, drawer and fit checks; 2. GB/T 3325 metal furniture suitability: Applicable to the steel support legs, brackets and coated metal load-bearing components; 3. GB/T 10357.6 static load test: Applicable standards and test results require confirmation; 4. GB 18580 formaldehyde emission: Relevant emission-control reference for engineered-wood panels used in indoor furniture; 5. GB/T 24821 fabric upholstery reference: Applicable where the padded divider uses furniture upholstery fabric and laminated foam; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
