Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 1480 x 1240 x 1200 mm | |
|---|---|---|
| desktop work height | 750 mm | |
| central privacy screen height | 350 mm | |
| desktop panel thickness | 25 mm | |
| single user work surface area | 1200 x 600 mm | |
| underdesk knee clearance height | 600 mm | |
| underdesk knee clearance depth | 450 mm | |
| cable grommet diameter | 60 mm | |
| mobile pedestal dimensions | 400 x 500 x 600 mm | |
| steel leg tube wall thickness | 1.5 mm | |
| edge band thickness | 2 mm | |
| base foot rail height | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| desktop uniform distributed load | 50 kg/㎡ | |
|---|---|---|
| desktop single point static load | 50 kg | |
| drawer slide load rating | 30 kg | |
| drawer slide cycle rating | 50000 cycles | |
| recommended maximum user weight per seat | 120 kg | |
| frame static load rating | 300 kg | |
| surface abrasion resistance | 2000 cycles | |
| warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| worktop panel | 25mm melamine-faced particleboard, 2mm PVC edge banding | |
|---|---|---|
| frame legs | 1.5mm thick powder-coated carbon steel, Z-shaped cantilever design | |
| central privacy divider | 18mm thick melamine-faced fiberboard, matte black finish | |
| mobile pedestal body | 0.8mm thick cold-rolled steel with powder coat finish, two-tone white/black | |
| drawer handles | ABS plastic integrated pull handles, matte silver finish | |
| pedestal casters | 30mm diameter nylon swivel casters, 360-degree rotation | |
| cable management channel | Steel vertical leg with integrated cutouts for cable routing | |
| desktop grommets | ABS plastic cable grommets with brush inserts | |
| pedestal lock | Keyed cam lock securing top two drawers | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

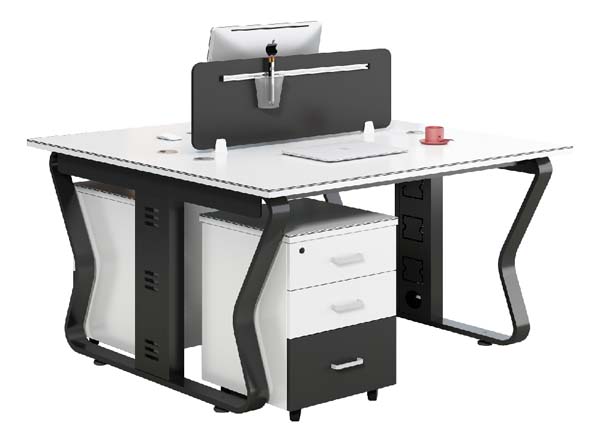

| dual user face-to-face layout | Two separate opposite-facing work zones separated by central divider | |
|---|---|---|
| desktop cable management | Dual grommet openings plus leg-mounted cable channels route cords off work surface | |
| mobile underdesk storage | 3-drawer rolling pedestal fits under work surface for file and supply storage | |
| pedestal drawer security | Keyed lock secures upper drawer compartments for personal document storage | |
| modular connectivity | Frame design supports linking to additional workstations for open office clusters | |
| floor level adjustment | Adjustable glides on leg bases compensate for uneven office flooring | |
| privacy screen mounting | Riser-mounted divider blocks direct line of sight between seated users | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| open plan office spaces | Face-to-face configuration for high-density staff work zones in commercial offices | |
|---|---|---|
| small business team work areas | Compact two-person unit ideal for startup offices and small team departments | |
| shared administrative workstations | Suitable for administrative, customer service and data entry staff seating | |
| modular office expansion | Connectable design supports scaling to larger multi-person workstation clusters | |
| co-working space desks | Durable construction suitable for high-traffic shared work environments | |
| paired task work seating | Ideal for teams requiring close collaboration while maintaining visual privacy |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensions and mechanical safety, applicable to ergonomic sizing | |
| EN 1335-2:2009 | Office furniture safety requirements for work surfaces and storage components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard, applicable to structural load testing | |
|---|---|---|
| ANSI/BIFMA X5.6-2016 | Panel systems workstations performance standard, applicable to divider system |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and panel components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame components | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to worktop substrate material | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and panel components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame components; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to worktop substrate material; 4. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
