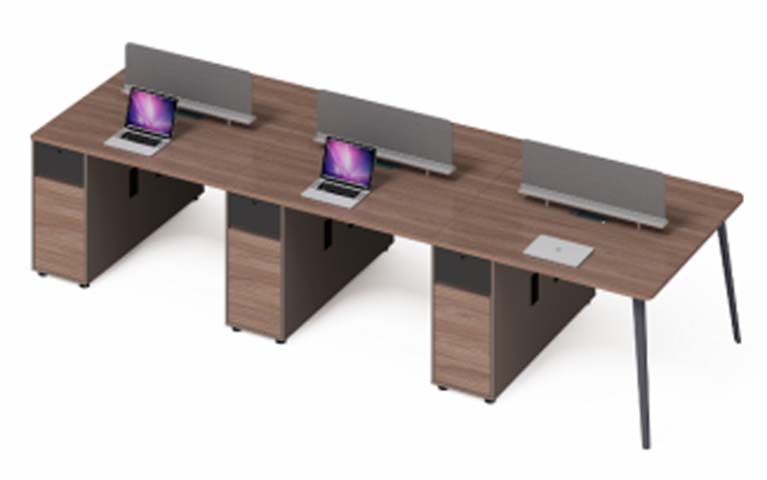

Three-Person Modular Office Workstation with Privacy Screens and Support Pedestals (model WS-3P-WAL-SCR-3600) is listed under Open Workstation. Dimensions: 3600 × 1400 × 1100 mm. Materials: 25 mm wood-based board with walnut woodgrain laminate or melamine surface and sealed matching edge. Load capacity: 120 kg total. Product Features: walnut,woodgrain,charcoal,panel,gray,divider,screen,panel-support,workstation,modular,multi-seat,desk. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-3P-WAL-SCR-3600 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Distributed work-surface load | 120 kg total | Individual seat load | 40 kg per user |
| Support pedestal top load | 60 kg per pedestal | Privacy screen lateral load | 15 kg per screen |
| Seating capacity | 3 users face-to-face across the run | Product net weight | 165 kg |
| Leveling adjustment | 10 mm per foot | Warranty duration | 5 years |
| Colorway count | 2 visible finishes | Top Static Load Reference | 150 kg uniformly distributed |
| Worktop construction | 25 mm wood-based board with walnut woodgrain laminate or melamine surface and sealed matching edge | Support pedestals | Walnut-grain side panels with charcoal composite front/modesty panels forming floor-standing bases |
| Privacy screens | 20 mm gray upholstered acoustic board or fabric-faced composite panel with light lower support rail | Metal end legs | Black powder-coated steel tube with splayed rectangular stance and floor glides |
| Leveling feet | Black polymer or nylon adjustable glides on all floor-contact support points | Edge and joinery hardware | PVC or ABS edge banding with cam-lock and screw-down panel connectors |
| Three-bay modular layout | Three 1200 mm work positions share a continuous 3600 mm surface and can be installed as one linked bench | Face-to-face privacy separation | Each 350 mm high divider blocks the direct sightline between facing users while retaining open desk access |
| Cable management access | Vertical slots in charcoal modesty panels route monitor and laptop cables from worktop toward under-desk outlets | Floor leveling | Rotating glides under every pedestal and metal leg provide up to 10 mm height correction without lifting the full bench |
| Total packed volume | 0.72 CBM | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office benching | Suitable for three facing work positions in call centers, administrative offices and shared staff zones because screens provide sightline separation | Project-based office installation | Recommended for repeatable workstation rows where linked supports, cable slots and compact footprints simplify planning and power routing |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed work-surface load | 120 kg total | |
|---|---|---|
| Individual seat load | 40 kg per user | |
| Support pedestal top load | 60 kg per pedestal | |
| Privacy screen lateral load | 15 kg per screen | |
| Seating capacity | 3 users face-to-face across the run | |
| Product net weight | 165 kg | |
| Leveling adjustment | 10 mm per foot | |
| Warranty duration | 5 years | |
| Colorway count | 2 visible finishes | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25 mm wood-based board with walnut woodgrain laminate or melamine surface and sealed matching edge | |
|---|---|---|
| Support pedestals | Walnut-grain side panels with charcoal composite front/modesty panels forming floor-standing bases | |
| Privacy screens | 20 mm gray upholstered acoustic board or fabric-faced composite panel with light lower support rail | |
| Metal end legs | Black powder-coated steel tube with splayed rectangular stance and floor glides | |
| Leveling feet | Black polymer or nylon adjustable glides on all floor-contact support points | |
| Edge and joinery hardware | PVC or ABS edge banding with cam-lock and screw-down panel connectors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Three-bay modular layout | Three 1200 mm work positions share a continuous 3600 mm surface and can be installed as one linked bench | |
|---|---|---|
| Face-to-face privacy separation | Each 350 mm high divider blocks the direct sightline between facing users while retaining open desk access | |
| Cable management access | Vertical slots in charcoal modesty panels route monitor and laptop cables from worktop toward under-desk outlets | |
| Floor leveling | Rotating glides under every pedestal and metal leg provide up to 10 mm height correction without lifting the full bench |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total packed volume | 0.72 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office benching | Suitable for three facing work positions in call centers, administrative offices and shared staff zones because screens provide sightline separation | |
|---|---|---|
| Project-based office installation | Recommended for repeatable workstation rows where linked supports, cable slots and compact footprints simplify planning and power routing |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk dimensional suitability | Verify seated work-surface height, knee clearance and strength requirements against office desk dimensions | |
|---|---|---|
| EN 527-2 safety and strength | Require vertical load, horizontal stability and durability test reports for the linked bench structure | |
| EN 13986 wood-based panels | Specify panel performance, bonding class and formaldehyde characteristics in the supplier BOM | |
| EN 1023 structural strength and stability | Use as supporting acceptance reference for non-domestic storage-support furniture panels |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural suitability | Use as acceptance reference for wooden furniture dimensions, tolerances and workmanship inspection | |
|---|---|---|
| GB/T 3325 metal furniture suitability | Use for inspection requirements on the steel end legs and welded or bolted metal support parts | |
| GB 18580 emission testing | Require E1-grade or lower formaldehyde-emission test evidence for wood-based panels before purchase | |
| GB/T 10357 furniture strength testing | Use desk stability, vertical load and durability test methods for purchaser inspection |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural suitability: Use as acceptance reference for wooden furniture dimensions, tolerances and workmanship inspection; 2. GB/T 3325 metal furniture suitability: Use for inspection requirements on the steel end legs and welded or bolted metal support parts; 3. GB 18580 emission testing: Require E1-grade or lower formaldehyde-emission test evidence for wood-based panels before purchase; 4. GB/T 10357 furniture strength testing: Use desk stability, vertical load and durability test methods for purchaser inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
