PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended seated users	4 users
Distributed worktop load	120 kg total
Per-user desktop load	30 kg
Pedestal static load	25 kg per cabinet
Drawer sliding duty	50,000 open-close cycles
Leveling adjustment capacity	10 mm per foot
Workstation net weight	118 kg
Recommended floor live area allowance	3.36 square meters per workstation set
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain melamine-faced particleboard with PVC edge banding
Pedestal panels	18 mm melamine-faced composite board with matching wood front and charcoal side panels
Drawer front and lock area	Charcoal laminated upper drawer face with key-lock insert
Divider screen	22 mm fabric-wrapped acoustic panel with light gray edge trim
Screen support rail	Silver-gray metal or rigid extruded rail fixed to desktop with two stand-offs
Leg frame	Charcoal powder-coated rectangular steel tube with splayed profile

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-position layout	Continuous 2800 x 1200 mm surface divided into four 1400 x 600 mm task zones for back-to-back bench work
Privacy and sight-line division	Two 1200 mm long upholstered screens rise 350 mm above the desktop to separate facing users
Under-desk storage	Two fixed support pedestals each provide one upper shallow drawer and one lower file/storage compartment
Locking storage	Each pedestal uses a keyed lock on the upper front for securing personal or office items

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four employees in bench-style open offices because paired screens separate facing users while retaining a compact shared footprint
Project and administrative work areas	Appropriate for laptop, document and monitor-based tasks, with lockable under-desk storage for each work side

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-WD-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-WD-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-WD-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

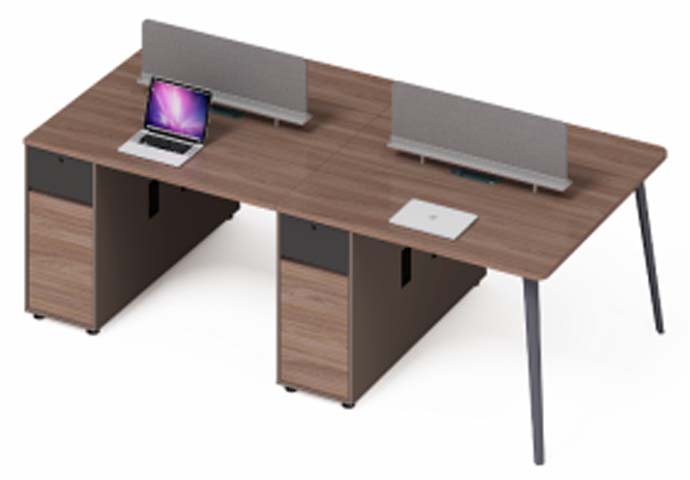

The Four-Person Modular Office Workstation, model WS-4P-WD-2800, offers a structured back-to-back bench layout for four seated users. Its continuous work surface is organized into four task zones, creating a compact shared footprint while maintaining clear individual work areas. Two fabric-covered divider screens run along the center of the workstation and rise above the desktop to separate facing users, reduce direct sight lines, and support a calmer open-plan environment. The light gray edge trim complements the wood-grain worktops, charcoal pedestal side panels, silver-gray support rail, and charcoal splayed metal legs, giving the workstation a coordinated commercial office appearance. Construction combines melamine-faced board, fabric-wrapped acoustic panels, powder-coated steel, and black plastic or metal hardware. The worktop uses 25 mm wood-grain melamine-faced particleboard with PVC edge banding and has a finished top thickness of 50 mm. Pedestal panels are made from 18 mm melamine-faced composite board, with matching wood fronts and charcoal side panels. Each divider is a 22 mm fabric-wrapped acoustic panel supported by a silver-gray metal or rigid extruded rail fixed to the desktop with stand-offs. The leg frame is a charcoal powder-coated rectangular steel tube with a splayed profile, featuring an 80 mm main section, 2 mm metal wall, and leveling feet with 10 mm adjustment capacity per foot. Designed for practical daily use, the workstation provides an effective knee clearance of 680 mm high and 900 mm wide per main seat. The distributed worktop load is rated at 120 kg total, with a per-user desktop load of 30 kg. An 80 mm diameter cable opening and cable tray with 120 mm depth help manage monitor and power cables. Two fixed support pedestals occupy the under-desk area; each includes an upper shallow drawer and a lower file or storage compartment, with a keyed lock on the upper front. The pedestal static load is 25 kg per cabinet, and the drawers are rated for 50,000 open-close cycles. This unbranded workstation is well suited to bench-style open offices, project rooms, administrative departments, and other shared workplaces focused on laptop, document, and monitor-based tasks. It is also appropriate for residential study or work areas that can accommodate a four-position layout, especially where separated seating and lockable storage are useful. Procurement planning should account for the workstation’s 118 kg net weight, multi-carton delivery, and assembly requirement. The stated reference assembly time is 40 minutes per set; packaging details vary in the supplied information, so buyers should confirm carton count, packaged dimensions, and gross weight before arranging shipping or installation. Site access, floor protection, leveling conditions, and cable layout should also be reviewed in advance.

Four-Person Modular Office Workstation with Divider Screens and Under-Desk Pedestals Specifications
