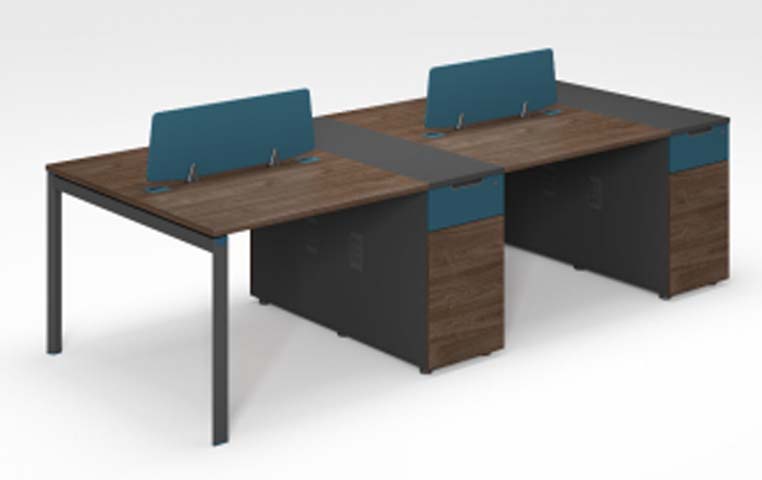

Four-Person Benching Workstation with Divider Screens and Under-Desk Pedestals (model WS-BENCH-4P-2800-2) is listed under Open Workstation. Dimensions: 2800 × 1400 × 1100 mm. Materials: 25 mm wood-grain high-pressure laminate board with sealed impact-resistant edge banding. Load capacity: 120 kg. Product Features: four-person,benching,layout,fabric,divider,screens,fixed,metal,legs,under-desk,storage,pedestals,cable,management. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-BENCH-4P-2800-2 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Seating capacity | 4 users | Distributed worktop load | 120 kg |
| Individual workstation load | 40 kg | Pedestal drawer load | 25 kg per drawer |
| Divider screen lateral load | 15 kg | Product net weight | 160 kg |
| Floor load at full use | 320 kg | Warranty duration | 5 years |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Work surfaces | 25 mm wood-grain high-pressure laminate board with sealed impact-resistant edge banding | Support frame | Charcoal powder-coated square steel legs and connecting rails with welded or bolted joints |
| Divider screens | Teal woven fabric over an acoustic or composite core with slim straight edge trim | Screen brackets | Satin silver die-cast or steel twin-post brackets fixed through each worktop |
| Pedestal bodies | Matte black board or steel side panels with wood-grain drawer fronts and teal upper accent strips | Cable hardware | Dark polymer grommets with removable caps set into each workstation |
| Four-seat occupancy layout | Two-by-two face-to-face benching provides four independent 1200 mm work positions while sharing the central service spine | Visual privacy separation | Two low teal divider screens separate opposite users and reduce direct sightlines without blocking room visibility |
| Cable routing system | Each seat uses a 60 mm worktop grommet and the central black spine to route power and data cables toward under-desk outlets | Integrated personal storage | Two under-surface pedestal units provide drawer storage at the inner end of each paired workstation and act as modesty panels |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan office cluster | Suitable for four staff in a compact call-center, administration, or back-office cluster because each user has a defined surface, screen, and cable access |
| Project-based team area | Recommended where two pairs of users share power and data along one spine while retaining individual drawer storage and low visual separation | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Distributed worktop load | 120 kg | |
| Individual workstation load | 40 kg | |
| Pedestal drawer load | 25 kg per drawer | |
| Divider screen lateral load | 15 kg | |
| Product net weight | 160 kg | |
| Floor load at full use | 320 kg | |
| Warranty duration | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm wood-grain high-pressure laminate board with sealed impact-resistant edge banding | |
|---|---|---|
| Support frame | Charcoal powder-coated square steel legs and connecting rails with welded or bolted joints | |
| Divider screens | Teal woven fabric over an acoustic or composite core with slim straight edge trim | |
| Screen brackets | Satin silver die-cast or steel twin-post brackets fixed through each worktop | |
| Pedestal bodies | Matte black board or steel side panels with wood-grain drawer fronts and teal upper accent strips | |
| Cable hardware | Dark polymer grommets with removable caps set into each workstation |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-seat occupancy layout | Two-by-two face-to-face benching provides four independent 1200 mm work positions while sharing the central service spine | |
|---|---|---|
| Visual privacy separation | Two low teal divider screens separate opposite users and reduce direct sightlines without blocking room visibility | |
| Cable routing system | Each seat uses a 60 mm worktop grommet and the central black spine to route power and data cables toward under-desk outlets | |
| Integrated personal storage | Two under-surface pedestal units provide drawer storage at the inner end of each paired workstation and act as modesty panels |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office cluster | Suitable for four staff in a compact call-center, administration, or back-office cluster because each user has a defined surface, screen, and cable access | |
|---|---|---|
| Project-based team area | Recommended where two pairs of users share power and data along one spine while retaining individual drawer storage and low visual separation |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
