Automatic mm / inch conversion · Core engineering specifications
| Overall cluster dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Per-user work surface size | 1200 x 600 mm | |
| Desktop thickness | 25 mm | |
| PVC edge banding thickness | 2.0 mm | |
| Privacy divider height above worktop | 400 mm | |
| Per-user divider width | 600 mm | |
| Central mobile pedestal dimensions | 600 x 400 x 650 mm | |
| Under-desk knee clearance height | 625 mm | |
| Under-desk knee clearance depth per side | 575 mm | |
| Steel leg tube section | 60 x 30 mm | |
| Steel leg/frame wall thickness | 1.2 mm | |
| Cable grommet cutout size | 252 x 115 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Desktop uniform static load capacity | 120 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 open-close cycles | |
| Melamine surface abrasion resistance | 2000 revolutions | |
| Surface hardness rating | 2H | |
| Recommended maximum user weight per station | 130 kg | |
| Net product weight | 135 kg | |
| Adjustable leveling foot adjustment range | 15 mm | |
| Manufacturer warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop panels | 25mm E1 grade melamine-faced particleboard, light wood grain finish | |
|---|---|---|
| Edge banding | 2.0mm thick impact-resistant PVC, color-matched to worktop finish | |
| Desk legs and support frame | 1.2mm thick powder-coated matte black steel, splayed tapered design | |
| Privacy dividers | Fabric-wrapped MDF core, light blue finish, mounted with black ABS brackets | |
| Pedestal drawer fronts | 18mm melamine-faced particleboard, light wood grain, matching worktop | |
| Pedestal side panels | 18mm melamine-faced particleboard, matte black finish | |
| Drawer hardware | Cold-rolled steel ball-bearing full-extension slides, black metal drawer pulls, keyed cam locks | |
| Cable grommets | Black ABS plastic with integrated brush seal, recessed into worktop | |
| Pedestal casters | 30mm diameter black nylon swivel casters, two with locking brakes | |
| Leveling feet | Injection-molded nylon base with steel threaded stud, fitted to leg bases | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

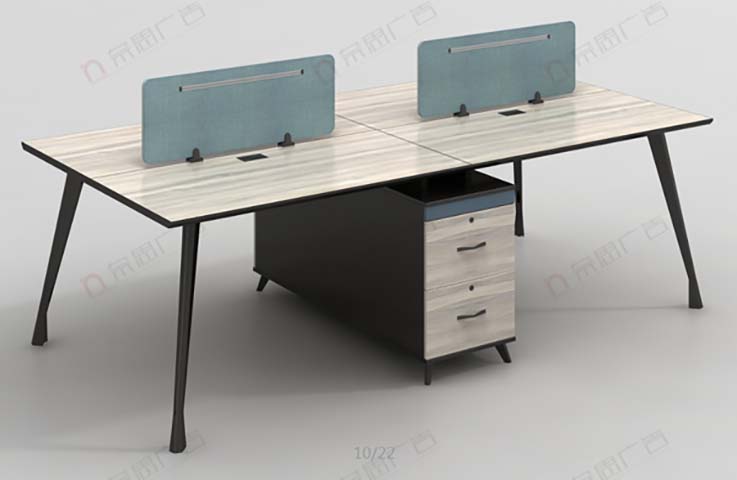

| Seating configuration | Two users seated on each long side, face-to-face across central dividers for 4 total positions | |
|---|---|---|
| Visual privacy | Two low-mounted blue dividers separate adjacent seated users, reducing cross-station visual distraction | |
| Cable management | One recessed brush grommet per work position routes monitor and device cables below the work surface | |
| Storage access | Central 2-lockable-drawer mobile pedestal rolls out for access from either side of the bench | |
| Floor stability | Threaded adjustable leveling feet on all legs compensate for uneven office flooring, eliminating desk wobble | |
| Drawer locking | Keyed locks on upper two pedestal drawers secure personal office supplies and documents | |
| Mobility of pedestal | Swivel casters on pedestal base allow repositioning for storage access or workspace reconfiguration | |
| Assembly structure | Knock-down flat-pack design with cam lock and bolt connections for on-site assembly | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open-plan office staff zones | Designed for corporate open work areas to accommodate 4 team members with separated personal workspaces | |
|---|---|---|
| Small startup team offices | Compact 4-person footprint provides integrated storage and cable management without large cubicle partitions | |
| Shared co-working spaces | Durable commercial-grade construction supports frequent user rotation and daily heavy use | |
| Government and institutional offices | Neutral light wood and blue finish meets public sector workspace aesthetic and durability requirements | |
| Back-office administrative areas | Integrated drawer storage keeps supplies accessible while maintaining clean desk surfaces for daily administrative work |
EU Market Access Requirements* EN Standards
| EN 527-1:2011+A1:2016 | Office work tables and desks, safety and strength requirements for commercial workspace use | |
|---|---|---|
| EN 527-2:2016+A1:2019 | Office work tables, dimensional requirements for seated user ergonomic clearance | |
| EN 13986:2004+A1:2015 | Wood-based panels for structural use, performance requirements for furniture grade panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, defining static load, durability and stability test requirements |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection | |
|---|---|---|
| GB/T 4897.3-2015 | Particleboard for furniture use, specifies panel structural and physical performance requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade or lower emission for indoor use | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, specifies static load and stability test methods |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection; 2. GB/T 4897.3-2015: Particleboard for furniture use, specifies panel structural and physical performance requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade or lower emission for indoor use; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, specifies static load and stability test methods; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
