PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1650 × 1250 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed worktop load	100 kg
Storage shelf load	25 kg per shelf
Drawer load	20 kg
Net weight reference	145 kg
Color options	2 color groups
Warranty reference	5 years
Hardware cycle reference	20000 drawer operations
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain melamine-faced panel with sealed straight edge
Storage carcass	18 mm light grey melamine-faced particleboard or MDF panels
Wood door and drawer fronts	Wood-grain melamine-faced panel with matching edge banding
Front support frame	Painted die-cast aluminum or steel twin-splayed leg with central bracket
Privacy screen	8 mm smoked translucent acrylic or glass panel with metallic lower rail
Hardware	Lock cylinder, drawer slides, shelf connectors, and frame fasteners

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person seating layout	Two users sit side-by-side across a 2800 mm shared surface separated by a central 320 mm privacy screen
Integrated rear storage	The floor-standing hutch combines open cubbies, a CPU bay, one lockable drawer, and a door compartment for each-side organization
Equipment accommodation	A dedicated 320 mm vertical bay accepts a compact computer tower with shelf-level access for cable routing
Cable management	One oval desk grommet provides cable pass-through from the laptop zone toward the rear storage cavity

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	2860 x 760 x 180 mm for the longest pack; remaining packs grouped within 1450 x 520 x 420 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two staff in open-plan areas where visual privacy, file storage, and computer equipment are combined in one footprint
Project workstation procurement	Suitable for standardized departmental installation with repeatable grey carcass, wood accents, and cable-access provisions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-STORAGE-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-STORAGE-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-STORAGE-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

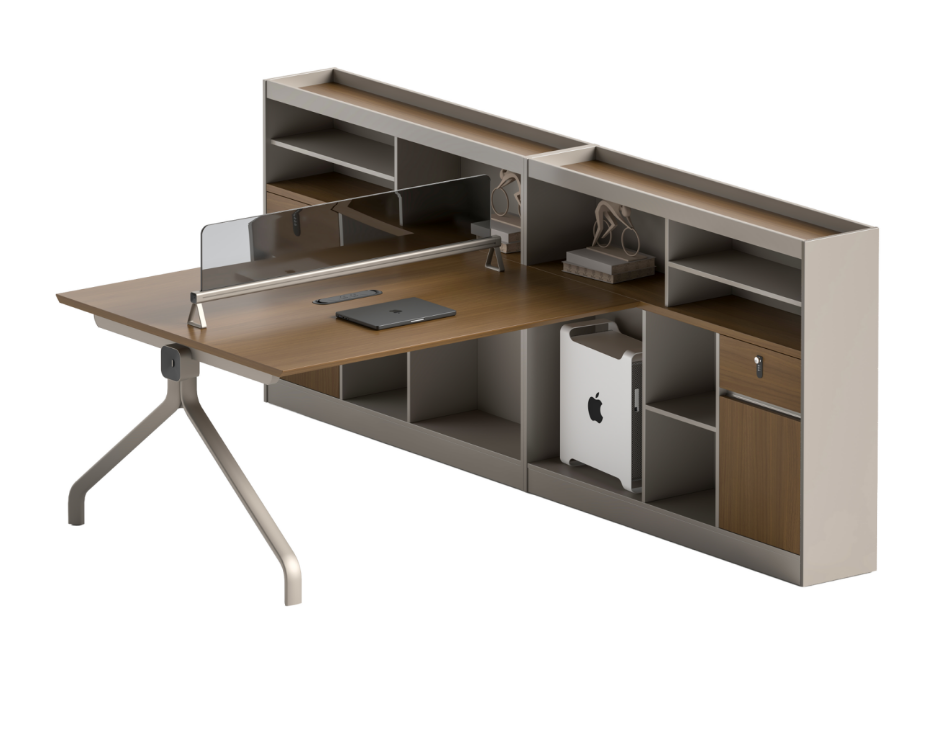

The Two-Person Integrated Workstation with Central Storage Hutch and Privacy Divider is a modern office workstation designed for two users working side by side. Model WS-2P-STORAGE-2800 combines a shared work surface, central visual separation, and rear storage in a single coordinated layout, giving open-plan teams a compact solution for daily computing, paperwork, and personal storage. Its appearance balances warm wood-grain surfaces with a light grey storage body, painted metal supports, and a smoked translucent divider, producing a professional look suited to standardized commercial interiors. The workstation is offered in two color groups and is supplied unbranded. Visually, the layout is organized around a long shared worktop with a central privacy screen separating the two seating zones. Behind the users, a floor-standing hutch forms the storage spine and integrates open cubbies, a CPU bay, a lockable drawer, and a door compartment for each-side organization. A dedicated vertical bay accommodates a compact computer tower and supports shelf-level cable routing, while an oval desk grommet provides a pass-through from the laptop area toward the rear storage cavity. These features help keep visible cables and equipment controlled without requiring separate storage furniture. The worktop uses a 25 mm wood-grain melamine-faced panel with a sealed straight edge and has a finished top thickness of 50 mm. Door and drawer fronts use matching wood-grain melamine with coordinated edge banding, while the storage carcass is built from 18 mm light grey melamine-faced particleboard or MDF panels. The front support consists of a painted die-cast aluminum or steel twin-splayed leg with a central bracket. The main support section is 80 mm with a 2 mm metal wall, and each main seat provides 680 mm high and 900 mm wide effective knee clearance. The privacy element is an 8 mm smoked translucent acrylic or glass panel with a metallic lower rail. Hardware includes a lock cylinder, drawer slides, shelf connectors, and frame fasteners. Functionally, the workstation is rated for two users and supports a distributed worktop load of 100 kg, 25 kg per storage shelf, and 20 kg in the drawer. Its cable opening is 80 mm in diameter, with a cable tray depth of 120 mm. The product is appropriate for open-plan offices, departmental installations, project-based fit-outs, and residential work rooms where two adjacent work positions, file storage, and computer equipment need to share one footprint. Procurement teams should plan around the 145 kg net weight and allow space for delivery and assembly. Reference assembly time is 40 minutes per set, although packaging records include both a two-carton set reference and a four-carton packaged gross weight reference of 180 kg per set, so shipment configuration should be confirmed before ordering. The listed warranty reference is five years.

Two-Person Integrated Workstation with Central Storage Hutch and Privacy Divider Specifications
