PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Per-worktop distributed load	80 kg
Central top display load	20 kg
Single open-shelf load	15 kg
Number of users	2
Seating capacity	2
Drawer and door count	2 lower enclosed storage fronts
Open shelf bays	6
Recommended floor load	3.0 kPa
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-composite board with walnut grain melamine finish and sealed exposed edges
Central cabinet	18 mm walnut-look composite panels with taupe lower side panels and fixed vertical dividers
Leg structure	Four black powder-coated steel tube legs with visible outward splay
Shelf and cabinet interiors	Matching dark-edge composite shelves with fixed horizontal divisions
Cable grommet	Black square plastic cable port set into the top edge of the divider near a workstation
Hardware and glides	Steel connector fittings with floor-contact leveling glides assumed at cabinet bases

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-way work layout	Opposing 1200 mm desks provide independent seated work zones separated by a full-height storage spine
Central privacy divider	The 1100 mm spine blocks direct sightlines between seated users while retaining a narrow top display surface
Integrated open storage	Six shelf bays accept binders, books and frequently used materials from the inner desk sides
Cable routing	The square black grommet allows monitor and power leads to pass from the work surface into the central divider zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office neighborhoods	Suitable for two-person accounting, administration or procurement teams needing separated screens and immediate file storage
Compact private office	Fits a shared manager-and-assistant room where central bookshelves replace a separate storage cabinet

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk suitability	Apply dimensional, safety and structural requirements for office desks to the two seated work surfaces
EN 527-2 mechanical safety	Use office desk strength, durability and stability requirements for production testing of the complete workstation
EN 16139 storage furniture suitability	Apply strength, durability and stability requirements for non-domestic storage furniture to the central shelving cabinet
EN 13986 panel assessment	Require wood-based panel performance and property documentation for load-bearing furniture panels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk and table products	Use backstop load, leg strength, stability and surface-performance tests for the work surfaces and steel supports
ANSI/BIFMA X5.9 storage units	Apply shelf, door, stability and structural-load test criteria to the central storage divider
BIFMA E3 furniture sustainability	Use material, energy and human-health credit criteria if the buyer requires a sustainable-furniture submission

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural suitability	Apply General Technical Specifications for Wooden Furniture to panel dimensions, edge sealing and cabinet assembly
GB/T 3325 metal furniture suitability	Apply metal furniture technical requirements to steel-leg strength, coating integrity and stability
GB 18580 emission testing	Use formaldehyde emission limits for wood-based panels as a procurement acceptance item for all composite boards
GB/T 10357 furniture strength testing	Use desk strength, durability and stability test methods for desktop loading and leg-frame verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural suitability: Apply General Technical Specifications for Wooden Furniture to panel dimensions, edge sealing and cabinet assembly;
2. GB/T 3325 metal furniture suitability: Apply metal furniture technical requirements to steel-leg strength, coating integrity and stability;
3. GB 18580 emission testing: Use formaldehyde emission limits for wood-based panels as a procurement acceptance item for all composite boards;
4. GB/T 10357 furniture strength testing: Use desk strength, durability and stability test methods for desktop loading and leg-frame verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-CAB-DIV-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-CAB-DIV-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-CAB-DIV-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

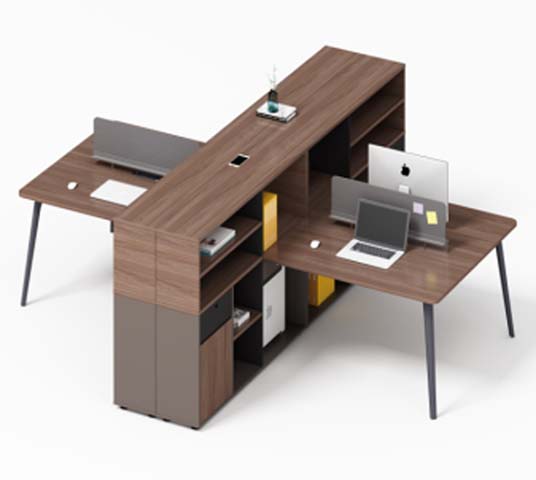

The Two-Person Face-to-Face Workstation with Central Storage Divider is an unbranded office workstation configured as two opposing desks joined by a full-height storage spine. Its layout gives each user a separate seated work zone while keeping shared storage and visual separation at the center. The central divider rises between the two positions, blocking direct sightlines between seated users and retaining a narrow top surface for display items. Walnut-look composite surfaces, taupe lower cabinet panels, and visibly splayed black steel legs create a structured commercial appearance that combines warm wood grain with contrasting metal supports. Each work surface uses 25 mm wood-composite board with a walnut grain melamine finish and sealed exposed edges, contributing to a finished top thickness of 50 mm at the assembled workstation. The central cabinet is built from 18 mm walnut-look composite panels with taupe lower side panels and fixed vertical dividers. Matching dark-edge composite shelves provide fixed horizontal divisions, while four black powder-coated steel tube legs support the desk areas. Steel connector fittings join the structure, and floor-contact leveling glides are positioned at the cabinet bases. A black square plastic cable port is set into the top edge of the divider beside a workstation, allowing monitor and power leads to pass toward the central cable-routing zone. The workstation seats two users in a face-to-face arrangement, with each main seat providing 680 mm high and 900 mm wide effective knee clearance. Six open shelf bays are accessible from the inner desk sides for binders, books, and frequently used materials. Two lower enclosed storage fronts add concealed storage, and the narrow central top surface is suited to lighter display items. Rated distributed load capacity is 80 kg per worktop, 20 kg for the central display top, and 15 kg for a single open shelf. The product net weight is 145 kg, reflecting its panel, cabinet, and steel construction. This configuration is well suited to open-plan office neighborhoods where two people in accounting, administration, or procurement roles need divided screen privacy and immediate file storage. It also works in a compact private office, such as a shared manager-and-assistant room, where the central bookshelf and cabinet can replace a separate storage unit. Procurement planning should account for the model reference WS2-CAB-DIV-2800, the two-user capacity, and the need to place the divider where opposing sightline separation is beneficial. The supplied packaging reference notes one set across two cartons, while logistics information also records a packaged gross weight of 180 kg per set in four cartons and one cubic meter of packaging volume; buyers should confirm shipment configuration before delivery. Reference assembly time is 40 minutes per set, and access for unpacking, placement, leveling, and cable setup should be planned in advance.

Two-Person Face-to-Face Workstation with Central Storage Divider Specifications
