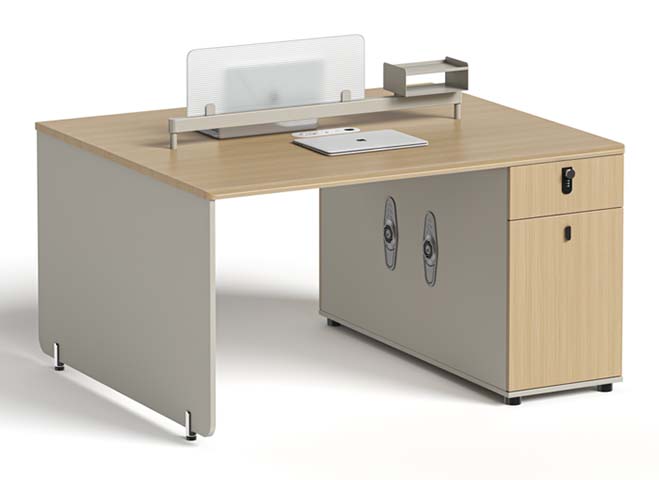

Product supplierSingle Workstation Desk with Integrated Storage and Desktop Privacy Screen, 18 to 25 mm melamine-faced wood-composite panels with sealed matching edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop distributed static load | 80 kg | |
|---|---|---|
| Pedestal top drawer load | 15 kg | |
| Lower filing drawer load | 30 kg | |
| Central cabinet shelf load | 25 kg | |
| Desktop riser load | 10 kg | |
| Privacy screen panel load | 5 kg | |
| Leveling adjustment | 15 mm | |
| Product net weight | 95 kg | |
| Recommended user weight at workstation | 120 kg | |
| Warranty duration | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop and cabinet panels | 18 to 25 mm melamine-faced wood-composite panels with sealed matching edge banding | |
|---|---|---|
| Modesty and support panels | 25 mm gray melamine or painted composite panels with softly radiused vertical edges | |
| Rear support rail | Rectangular powder-coated steel rail supporting the privacy screen and equipment shelf | |
| Storage hardware | Steel cam-and-doweled cabinet joinery with black recessed drawer pulls and twin cabinet handles | |
| Drawer lock | Keyed tubular cam lock on the top drawer with a black lock escutcheon | |
| Base protection | Black nylon or rubber leveling glides on steel threaded stems at all floor contact points |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seated work configuration | Single-user L-shaped workstation with a 750 mm worktop, open knee bay and right-hand storage return for computer and paperwork tasks | |
|---|---|---|
| Storage operation | Right pedestal provides one lockable utility drawer, one lower filing drawer and a two-door central compartment for office documents | |
| Cable and equipment organization | Rear steel rail, raised screen and two-tier shelf create a rear device zone; a white cable port plate is visible near the laptop position | |
| Floor leveling and installation | Threaded glides at the panel and pedestal corners provide 15 mm vertical adjustment during on-site assembly |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office workstation | Suited to manager or staff offices where one user needs a computer work zone, filing storage and a rear privacy screen | |
|---|---|---|
| Open-plan focused task seat | Applicable in open offices that require localized visual screening without converting the desk into a multi-person bench |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety guidance | EN 527 | |
|---|---|---|
| Office furniture mechanical guidance | EN 527 | |
| Office storage safety guidance | EN 14073 | |
| Office storage durability guidance | EN 14073 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk performance guidance | ANSI/BIFMA X5.5 | |
|---|---|---|
| Storage performance guidance | ANSI/BIFMA X5.9 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission guidance | GB/T 39600 E1 | |
|---|---|---|
| Wood-based panel structural guidance | GB/T 4897 | |
| Furniture safety guidance | GB/T 3324 |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission guidance: GB/T 39600 E1; 2. Wood-based panel structural guidance: GB/T 4897; 3. Furniture safety guidance: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
