PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1200 × 750 mm
Tabletop thickness	25 mm
Undertable knee clearance height	680 mm
Per-seat edge length (long sides)	600 mm
Per-seat edge length (short ends)	1200 mm
Base X-leg span (lengthwise)	2100 mm
Base X-leg span (widthwise)	1000 mm
Base leg tube section	60 x 30 mm
Edge radius (rounded corners)	30 mm
Base contact pad diameter	50 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	8 people
Distributed static top load	120 kg
Total net weight (assembled)	90 kg
Surface scratch resistance	2000 cycles
Surface stain resistance grade	Grade 4
Structural wobble deflection	2 mm
Base static load rating	300 kg
Recommended warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop core	25 mm high-density MDF
Tabletop surface	Walnut wood veneer with matte polyurethane topcoat
Tabletop edge	Matched walnut wood veneer edge banding
Support base	2 mm thick powder-coated silver steel tubing
Top-to-base connection plate	5 mm thick powder-coated steel
Floor glides	Non-marking nylon height-adjustable glides
Internal bracing	Steel cross bracing welded at base intersection
Hardware fasteners	Grade 8.8 zinc-plated steel bolts
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height configuration	Fixed 750 mm work height
Assembly design	Knock-down flat-pack construction
Tabletop cable access	Central integrated cable grommet
Perimeter seating access	Unobstructed leg room on all four sides
Glide adjustment	10 mm height adjustment range per glide
Surface functionality	Scratch and stain resistant flat work surface
Stability feature	Wide X-leg footprint distribution
Mounting compatibility	Pre-drilled mounting holes for under-table cable management
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate meeting rooms	Fits 8-person boardroom and team meeting spaces for collaborative discussion
Executive office spaces	Works as a large conference surface in private executive suites for client meetings
Training rooms	Supports laptop-based training sessions and group workshop activities
Co-working spaces	Serves as a shared dedicated meeting surface for member team bookings
Recommended companion seating	Cantilever-frame meeting chairs with 450 mm seat height for proper ergonomic fit
Finish compatibility	Dark walnut top and silver base pair with dark or light neutral office interior schemes
Recommended power access	Pair with floor power outlets or under-table cable management for AV equipment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables: safety and strength requirements, applicable to structural performance
EN 15372:2016	Office furniture: strength, durability and safety for non-domestic tables
EN 13722:2004	Furniture: assessment of surface resistance to dry heat for table surfaces
EN 71-3:2019	Migration of certain elements, applicable to surface finish safety for commercial use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products: safety and performance standard for office tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to tabletop structural performance
GB/T 3327-2016	Office furniture: desks and tables, applicable to dimensional and stability requirements
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to tabletop core material
GB/T 4893.8-2013	Surface wear resistance test for furniture surfaces, applicable to topcoat durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop structural performance;
2. GB/T 3327-2016: Office furniture: desks and tables, applicable to dimensional and stability requirements;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to tabletop core material;
4. GB/T 4893.8-2013: Surface wear resistance test for furniture surfaces, applicable to topcoat durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-X2400-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-X2400-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-X2400-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

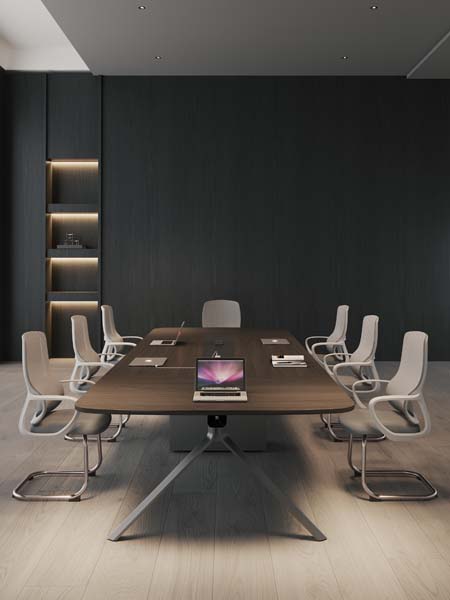

This 8-person dark walnut veneer conference table (model CT-X2400-WAL) balances modern streamlined design with robust, purpose-built construction for collaborative workspace settings. Its visual profile pairs a wide, rectangular tabletop finished in rich dark walnut with a prominent central X-shape silver metal base, creating a clean, professional silhouette that complements both dark and light neutral office interior palettes. The layout delivers unobstructed leg room across all four sides, with seating positions arranged to comfortably accommodate eight users without cramped entry or movement space around the perimeter.
The table’s construction prioritizes durability for high-traffic use. Its 25mm thick tabletop features a high-density MDF core wrapped in matched walnut wood veneer, finished with a matte polyurethane topcoat and matching walnut veneer edge banding; load-bearing sections of the top use a 40mm composite build-up for extra structural rigidity. The central support structure is fabricated from 2mm thick powder-coated silver steel tubing, with welded steel cross bracing at the X-base intersection to reinforce stability, connected to the tabletop via 5mm thick powder-coated steel plates and secured with Grade 8.8 zinc-plated steel bolts. Non-marking nylon height-adjustable glides sit at the base leg ends to level the table on uneven flooring, while the wide X-leg footprint distributes weight evenly to minimize wobble during use.
Practical functional features support seamless meeting activities. The fixed 750mm work height pairs optimally with cantilever-frame meeting chairs featuring a 450mm seat height for ergonomic alignment, and a central integrated cable grommet keeps power and data cords organized for connected devices. The matte tabletop offers reliable scratch and stain resistance to hold up to regular use with laptops, documents, and meeting refreshments.
This table is well suited for a range of commercial and flexible work environments, including 8-person corporate boardrooms and team meeting spaces, private executive offices for client meetings, training rooms supporting laptop-based workshops, and co-working spaces as a bookable shared meeting surface.
For procurement planning, note the table ships as a knock-down flat-pack set across two cartons, with a reference assembly time of 40 minutes per unit. It features a fixed-height trestle design, and purchasers should confirm layout space accommodates the full table footprint to allow easy chair movement and access around all edges. The dark walnut and silver finish offers versatile coordination with existing office furniture schemes, reducing the need for full space redesign to integrate the piece.

8-Person Dark Walnut Veneer Conference Table with Central X-Shape Metal Base Specifications
