PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed work-surface load	80 kg total
Pedestal drawer static load	15 kg per drawer
Pedestal cabinet top support load	30 kg
Unit net weight	68 kg
Leveling adjustment	10 mm travel per foot
Drawer cycle reference	50,000 cycles
Seating capacity	2 task chairs
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak straight grain
Storage pedestal	Light oak melamine drawer fronts with light gray melamine cabinet sides
Divider panel	Blue-gray fabric-wrapped acoustical panel with rounded vertical corners
Divider support and cable cover	Light gray powder-coated steel or aluminum rail with two rectangular cable exits
Edge protection	PVC or ABS edge banding in matching light gray and oak tones
Base hardware	Black nylon adjustable leveling feet with steel threaded stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Face-to-face workspace division	Central upholstered divider separates two opposing users and limits direct sight lines across the shared top
Cable routing	Central rail contains two visible cable pass-through slots for monitor and power leads
Integrated personal storage	Near-side pedestal provides one shallow stationery drawer and one tall file or personal-effects compartment
Drawer security	Single keyed lock position is shown at the shallow drawer front for securing the pedestal

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packed carton count	3 cartons
Total packed volume	0.360 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suits two-person face-to-face clusters in open offices where divider screening, cable exits, and personal storage are required
Project-based procurement layout	Can be repeated in rows for call centers, administration teams, or staff workpoints with light oak and gray coordination

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture structural strength	EN 527:2002
Office work-surface dimensions	EN 527:2011
Formaldehyde emissions from wood panels	EN 13986:2004+A1:2015
Upholstered furniture ignitability	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office furniture desk structural acceptance	GB/T 3324
Wood-based panel formaldehyde control	GB 18580
Office furniture fire safety	GB 20286

Standardized tender description text

This product must meet the following technical requirements:
1. Office furniture desk structural acceptance: GB/T 3324;
2. Wood-based panel formaldehyde control: GB 18580;
3. Office furniture fire safety: GB 20286;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1200X1200-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1200X1200-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1200X1200-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

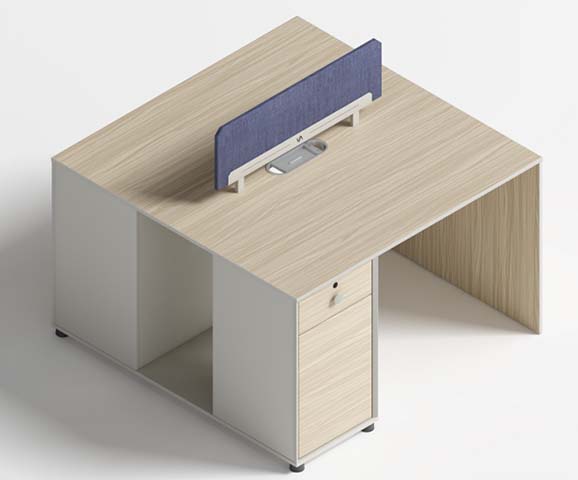

The Two-Person Panel Workstation with Central Divider and Integrated Pedestal is an unbranded office workstation designed for face-to-face seating in organized commercial environments. Its layout places two users opposite each other across a shared work surface, separated by a central upholstered divider that reduces direct sight lines and gives each position a greater sense of individual space. The workstation has a light oak straight-grain finish paired with light gray panels, while the blue-gray divider introduces a restrained accent suitable for coordinated office interiors. The work surface is made from 25 mm melamine-faced particleboard and is protected by matching light gray and oak-toned PVC or ABS edge banding. The finished top thickness is 50 mm. The divider is a fabric-wrapped acoustical panel with rounded vertical corners, supported by a light gray powder-coated steel or aluminum rail. This central rail also serves as the cable management cover and includes two rectangular cable exits for monitor and power leads. Beneath the surface, the leg or support section uses an 80 mm main section with a 2 mm metal wall. Black nylon adjustable leveling feet with steel threaded stems provide 10 mm of adjustment at each foot. Integrated storage is built into the near-side pedestal. It includes one shallow stationery drawer and one tall compartment suited to files or personal effects. The drawer fronts use light oak melamine, while the cabinet sides are finished in light gray melamine. A single keyed lock position at the shallow drawer front secures the pedestal. The recommended distributed work-surface load is 80 kg total, with 15 kg static load capacity per drawer and 30 kg support capacity on the pedestal cabinet top. The drawer cycle reference is 50,000 cycles. Cable routing is concentrated at the center of the workstation through two visible pass-through slots, with an 80 mm cable opening and a cable tray depth of 120 mm. Each main seat offers 680 mm high and 900 mm wide effective knee clearance. These features make the workstation appropriate for open-plan benching, two-person clusters, call centers, administration areas, and project-based staff workpoints that can be repeated in rows. For procurement, buyers should plan for delivery and installation as a multi-carton consignment, confirm the latest packing configuration before order acceptance, and allocate the referenced assembly time of 40 minutes per set. The unit net weight is 68 kg. The light oak, gray, and blue-gray palette should be checked against adjacent furniture and interior finishes. Floor leveling access, cable management requirements, pedestal orientation, and secure storage needs should also be confirmed during space planning.

Two-Person Panel Workstation with Central Divider and Integrated Pedestal Specifications
