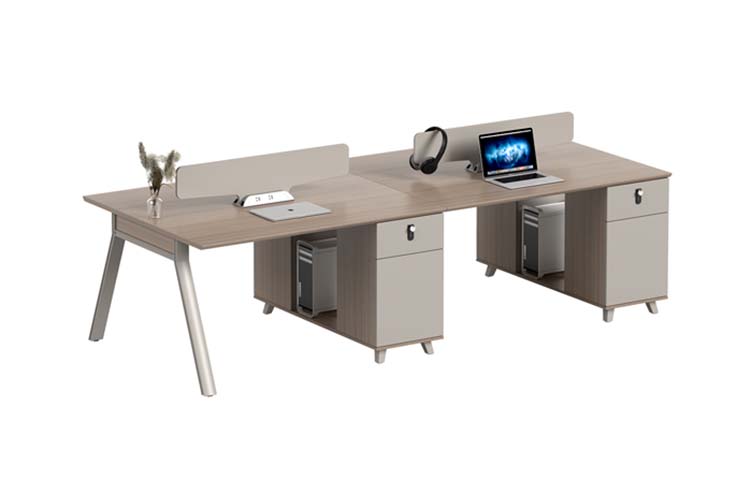

Product supplierFour-Person Panel-Based Office Workstation with Storage Pedestals and Central Dividers, 25 mm melamine-faced wood-composite board with sealed PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended users | 4 persons | |
|---|---|---|
| Distributed worktop load | 120 kg | |
| Pedestal top drawer load | 15 kg | |
| Lower cabinet shelf load | 25 kg | |
| CPU bay capacity | 20 kg per bay | |
| Unit net weight | 145 kg | |
| Pedestal lock count | 2 keyed locks | |
| Drawer slide cycle target | 50,000 cycles | |
| Seating configuration tolerance | 600 mm chair centerline minimum | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25 mm melamine-faced wood-composite board with sealed PVC edge banding | |
|---|---|---|
| Privacy panels | 25 mm rigid panel with soft gray fabric-look face or matte laminate surface | |
| Storage cabinet carcass | 18 mm melamine-faced particleboard or MDF panels in oak-tone and light gray finishes | |
| Drawer and door fronts | 18 mm laminated composite board with integrated recessed pulls and black plastic locks | |
| Support legs | Powder-coated silver-gray steel round tube with splayed A-frame geometry | |
| Hardware | Black plastic key locks, steel drawer slides, hinges, and adjustable gray leveling feet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy division | Two continuous center screens separate face-to-face users and provide a 350 mm high visual barrier above the worktop. | |
|---|---|---|
| Personal storage | Each side includes one 160 mm shallow lockable drawer and one 500 mm lower cabinet door for personal files and office items. | |
| Computer storage | Open under-desk bays beside both pedestals accept vertical computer towers with cable access toward the desktop. | |
| Cable management | A white desktop port with dual covers is visible at the center, providing cable pass-through between work surface and under-desk equipment. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits 1:1 staff desks in four-person clusters because each user receives a 1400 mm work zone, divider screening, and lockable storage. | |
|---|---|---|
| Administrative or back-office workspace | The CPU bays, cable port, and file pedestal support desktop computers, paperwork, and daily personal equipment in fixed workstations. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety | EN 527:2011 | |
|---|---|---|
| Office dimensional guidance | EN 527:2014 | |
| Formaldehyde panel emission | EN 13986:2004+A1:2015 | |
| Surface abrasion performance | EN 14354:2016 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Table structural standard | ANSI/BIFMA X2021 | |
|---|---|---|
| Facility mobility and storage | ANSI/BIFMA X2019 | |
| Sustainability declaration | ANSI/BIFMA E2019e |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desk structural safety | GB/T 3324 | |
|---|---|---|
| Formaldehyde emission | GB 18580 | |
| Surface durability | GB/T 4893.1through GB/T 4893.9 | |
| Hardware and stability checks | GB/T 10357.1through GB/T 10357.7 |
Standardized tender description text
This product must meet the following technical requirements: 1. Desk structural safety: GB/T 3324; 2. Formaldehyde emission: GB 18580; 3. Surface durability: GB/T 4893.1through GB/T 4893.9; 4. Hardware and stability checks: GB/T 10357.1through GB/T 10357.7; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
