Automatic mm / inch conversion · Core engineering specifications
| Overall desk dimensions | 2800 x 1200 x 1100 mm | |
|---|---|---|
| Work surface height from floor | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Privacy divider height above desktop | 350 mm | |
| Per-user individual work surface width | 1200 mm | |
| Per-side work surface depth from center divider | 600 mm | |
| Under-desk seated knee clearance height | 620 mm | |
| Central desktop cubby storage dimensions | 600 x 300 x 350 mm | |
| Desktop cable grommet diameter | 80 mm | |
| Splayed steel leg outer diameter at floor contact | 50 mm | |
| Under-desk open shelf compartment height | 300 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Total workstation net weight | 175 kg | |
|---|---|---|
| Per-seat work surface static load capacity | 90 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Surface stain and moisture resistance rating | Class 1 | |
| Recommended maximum user capacity | 4 | |
| Standard product warranty | 3 years | |
| Leveling foot adjustment range | 15 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Work surface and drawer fronts | 25mm E1-grade melamine-faced particleboard, light washed woodgrain finish | |
|---|---|---|
| Desk support legs | 1.5mm thick powder-coated matte black tapered steel, splayed design | |
| Privacy divider panels | 18mm particleboard core upholstered in blue-grey woven polyester fabric, matte black mounting brackets | |
| Central desktop cubby frames | 18mm matte black melamine-faced engineered wood with light woodgrain internal shelf | |
| Under-desk cabinet carcass | 18mm matte black melamine-faced engineered wood, 2mm PVC impact-resistant edge banding | |
| Drawer hardware | Cold-rolled steel drawer slides, zinc alloy lock cores, matte black steel pull handles | |
| Cable management grommets | Matte black ABS plastic recessed desk grommets with brush seals | |
| Cabinet and leg base feet | Nylon and steel adjustable leveling feet, 15mm adjustment travel | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

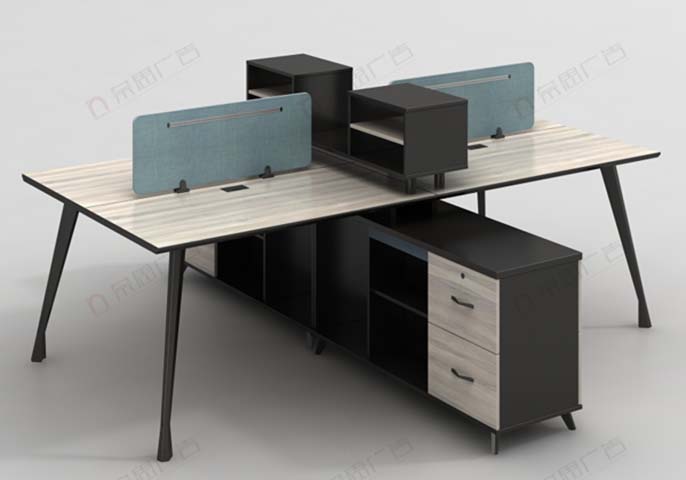

| Modular work position layout | Double-sided face-to-face configuration with 4 dedicated seated workstations separated by fabric dividers | |
|---|---|---|
| Lockable drawer storage | Each user position includes 2 lockable stacked drawers for secure personal document and supply storage | |
| Open under-desk shelving | Two open fixed shelf compartments per work side for quick-access storage of bags, files or office peripherals | |
| Desktop cable management | Recessed grommets on each work surface route power and data cables from equipment to under-desk channels | |
| Central desktop storage cubbies | Two raised open storage compartments mounted at desk center for shared office supplies or small equipment | |
| Visual privacy screening | Low-profile fabric dividers block direct sightlines between adjacent and opposing seated users without blocking overhead light | |
| Floor leveling adjustment | Integrated adjustable feet on legs and storage cabinets allow stable installation on uneven office floors | |
| Knock-down modular assembly | Pre-drilled components with connecting hardware allow on-site reconfiguration or disassembly for office moves | |
| Lockable drawer pedestal width per user | 600 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Open-plan corporate office staff zones | Suits 4-person team clusters for general administrative, design or operational staff work | |
|---|---|---|
| Co-working space dedicated team pods | Provides semi-private individual workspaces with shared storage for flexible co-working members | |
| Startup office agile work areas | Integrated storage and cable management reduces clutter for fast-growing small office fit-outs | |
| Government and public institution clerical areas | Durable commercial construction and lockable storage meet daily high-use office requirements | |
| Call center and shared service workspaces | Compact per-seat dimensions maximize staff density while maintaining individual work privacy |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to structural load testing | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to drawer and cabinet stability | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction use, applicable to engineered board performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard, applicable to commercial office desk load and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to drawer and cabinet durability testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and storage cabinet construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade board selection for indoor use | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable to worktop and cabinet core material |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and storage cabinet construction; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade board selection for indoor use; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to worktop and cabinet core material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
