PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total work positions	8 users
Worktop distributed load	100 kg per position
Pedestal drawer load	25 kg per drawer
Task chair weight capacity	120 kg per chair
Workstation net weight	320 kg total
Chair seat height range	440 to 540 mm
Caster rolling durability target	100000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	White thermally fused laminate on 25 mm particleboard or MDF core, with sealed impact-resistant edges
Support frame	White powder-coated square steel legs with welded or bolted horizontal rails
Privacy screens	Light gray 18 mm fabric-faced or melamine-faced composite divider panels
Storage pedestals	White steel or steel-clad mobile drawer cabinets with recessed handles and black locks
Task chair upholstery	Black breathable mesh back, black mesh or molded back frame, with black and orange fabric seat pads
Chair base and hardware	Black nylon five-star bases, black twin-wheel casters, steel gas cylinders and painted arm supports

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Back-to-back privacy separation	A continuous 350 mm-high center screen divides opposite-facing users while preserving open sight lines above the panel
Cable routing	Each desktop includes a 60 mm round grommet for monitor and power cables, with under-desk routing toward the pedestal-side leg zone
Under-desk filing	Each seat is paired with a compact two-drawer mobile pedestal that stores documents and can be pulled clear for legroom access
Task chair adjustment	Swivel mesh chairs provide 100 mm gas-lift height adjustment, reclining back support, fixed arms and twin-wheel mobility

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for eight employees in call centers, administration teams or shared operational areas because the low screens provide privacy without blocking room light
Project and training teams	The 1200 mm modules and mobile pedestals suit individual computer work plus frequent side communication and reconfiguration

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture structural safety	EN 16139:2013+A1:2021 strength, durability and stability for non-domestic seating
Office work surface safety	EN 527:2011 dimensions and safety requirements for office desks
Office work surface durability	EN 527:2002 mechanical safety and structural test methods
Castor performance	EN 12528:1999 furniture castors for swivel chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chairs standard	ANSI/BIFMA X2017 general-purpose office chairs
Storage cabinets standard	ANSI/BIFMA X2019storage units
Office desks standard	ANSI/BIFMA X2021desk products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office furniture desk safety	GB/T 3324 general technical requirements for wooden furniture
Office furniture structural strength	GB/T 10357.1table strength and load tests
Formaldehyde emission	GB 18580formaldehyde emission control for interior wood-based panels
Office chair safety	GB/T 28004swivel office chair requirements

Standardized tender description text

This product must meet the following technical requirements:
1. Office furniture desk safety: GB/T 3324 general technical requirements for wooden furniture;
2. Office furniture structural strength: GB/T 10357.1table strength and load tests;
3. Formaldehyde emission: GB 18580formaldehyde emission control for interior wood-based panels;
4. Office chair safety: GB/T 28004swivel office chair requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-8P-4800-WHITE-MESH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-8P-4800-WHITE-MESH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-8P-4800-WHITE-MESHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

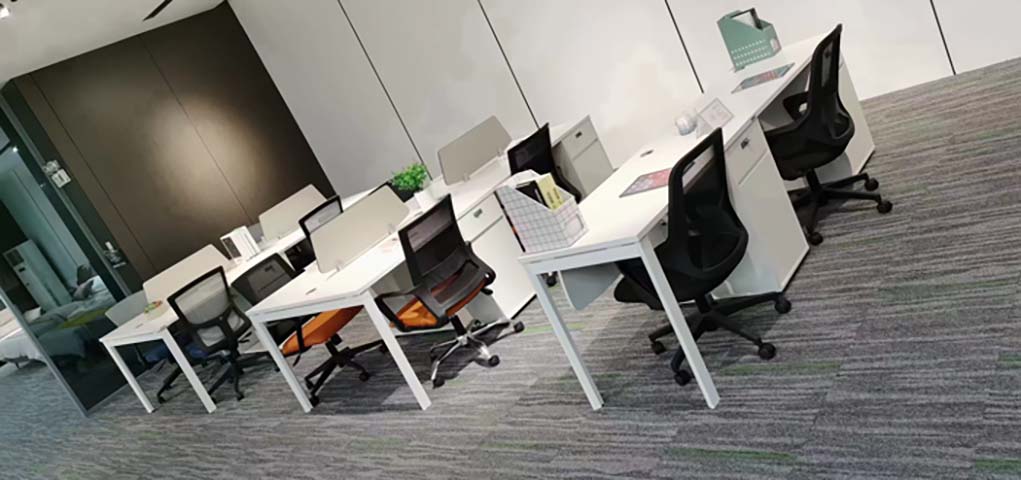

The Eight-Person Modular Panel Workstation presents a coordinated open-plan office layout with eight individual work positions arranged for efficient team use. Its visual character is clean and contemporary, combining white laminate surfaces, white powder-coated steel framing, light gray divider panels, and black mesh task chairs. A continuous low center screen separates opposite-facing users while retaining open sight lines above the panel, giving the system visual privacy without enclosing each seat or blocking room light. Integrated mobile pedestals sit beneath or beside the work positions, reinforcing the orderly footprint and keeping personal storage close at hand. Construction is based on white thermally fused laminate work surfaces over a particleboard or MDF core, finished with sealed impact-resistant edges. The finished top thickness is 50 mm. The support frame uses white powder-coated square steel legs with welded or bolted horizontal rails; the main leg section is 80 mm with a 2 mm metal wall. Divider screens are light gray, 18 mm composite panels faced with fabric or melamine. Each seat is paired with a compact white steel or steel-clad two-drawer mobile pedestal featuring recessed handles and black locks. The included swivel task chairs use black breathable mesh backs, black and orange fabric seat pads, black nylon five-star bases, twin-wheel casters, steel gas cylinders, and painted fixed arm supports. Practical functionality is built around daily computer-based work. Each desktop includes a round cable grommet, with under-desk routing directed toward the pedestal-side leg area, while the stated cable opening size is 80 mm in diameter and the cable tray depth is 120 mm. The mobile drawers provide document storage and can be pulled clear when additional legroom is needed. Each main seat offers 680 mm high and 900 mm wide effective knee clearance. The chairs provide swivel movement, reclining back support, twin-wheel mobility, and a 100 mm gas-lift adjustment, with seat height from 440 to 540 mm. This workstation is well suited to call centers, administration teams, shared operational areas, project groups, and training environments where eight people need focused computer space alongside easy side communication. The low-panel design makes it particularly appropriate for open offices that value daylight and team visibility. Procurement planning should account for modular layout coordination, chair load requirements, pedestal access, cable management placement, and floor protection. The product is unbranded and supplied as a set; reference packaging information should be confirmed for the specific order because packing records differ, with noted references including two cartons and four cartons, and a reference gross weight of 180 kg per set. Assembly time is referenced at 40 minutes per set.

Eight-Person Modular Panel Workstation with Integrated Pedestals and Mesh Task Chairs Specifications
