PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop distributed load capacity	120 kg per work surface
Single pedestal drawer load rating	20 kg per drawer
Divider screen panel load rating	5 kg
Suggested seated-user capacity	4 users
Net weight reference	185 kg
Drawer slide durability target	50000 open-close cycles
Recommended floor live load	3.0 kPa per occupied workstation zone
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm wood-grain melamine or high-pressure laminate panel with black edge banding
Metal support frame	Matte black powder-coated square steel tube, 50 x 50 mm leg section
Divider screens	Blue fabric-wrapped panel board, 18 mm thickness, secured by black metal brackets
Storage pedestal exterior	Walnut-look laminate side and drawer fronts with blue accent strip and black recessed pull
Privacy panels	Dark graphite rigid panel beneath each work surface
Cable management hardware	Four black circular plastic grommets set into the worktops near the screens

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-person benching layout	Two users sit on each long side, with one 1400 mm work bay, one screen and two cable outlets per user pair
Desktop cable routing	Four 80 mm grommets allow monitor and power cables to pass from the worktop to the under-desk zone
Visual division system	Two low desk-mounted screens provide sightline separation without blocking overhead collaboration
Under-desk storage	Two mobile pedestal units supply drawer or file storage while preserving the outer knee bays

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	1.18 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office neighborhood	Suitable for four staff in a compact bench cluster where low screens reduce visual distraction while maintaining team visibility
Project and administrative work zones	Supports monitors, keyboards and paperwork across four 1400 mm bays, with under-desk drawers for personal files and stationery

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 applicability	EN 527office desks safety, strength and durability requirements suit the bench worktop and leg assembly
EN 527-2 applicability	EN 527 mechanical safety, strength and durability test methods can be used for procurement verification
EN 14073-2 applicability	EN 14073storage furniture safety requirements can apply to the two under-desk pedestals
EN 14073-3 applicability	EN 14073stability and structure requirements are relevant for drawer and file storage acceptance
EN 1022 applicability	EN 1022 seating stability is not directly applicable, but the standard may guide stability review if chairs are added to the package

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 applicability	ANSI/BIFMA X5.5 desk products can be specified for desk strength, load, fatigue and stability testing
ANSI/BIFMA X5.9 applicability	ANSI/BIFMA X5.9 storage units can be used for drawer, lock and pedestal performance verification
ANSI/BIFMA e3 applicability	ANSI/BIFMA e3 can provide a multi-attribute sustainability framework for materials, energy and social-impact reporting
ANSI/BIFMA X5.1 applicability	ANSI/BIFMA X5.1 applies only if office chairs are procured with the workstation package

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	GB/T 3324 wooden furniture general technical requirements can be used for laminate panel dimensions, edge quality and workmanship acceptance
GB/T 3325 applicability	GB/T 3325 metal furniture technical requirements can apply to the steel legs, brackets and welded or bolted metal components
GB/T 10357.5 applicability	GB/T 10357.5 furniture strength and durability testing can define desk load and durability acceptance
GB 18580 applicability	GB 18580 formaldehyde emission limits can be specified for wood-based panels used in the worktops and pedestals
GB/T 33719 applicability	GB/T 33719 office furniture storage units can guide drawer operation, stability and load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: GB/T 3324 wooden furniture general technical requirements can be used for laminate panel dimensions, edge quality and workmanship acceptance;
2. GB/T 3325 applicability: GB/T 3325 metal furniture technical requirements can apply to the steel legs, brackets and welded or bolted metal components;
3. GB/T 10357.5 applicability: GB/T 10357.5 furniture strength and durability testing can define desk load and durability acceptance;
4. GB 18580 applicability: GB 18580 formaldehyde emission limits can be specified for wood-based panels used in the worktops and pedestals;
5. GB/T 33719 applicability: GB/T 33719 office furniture storage units can guide drawer operation, stability and load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-BENCH4-2800-WAL-BLU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-BENCH4-2800-WAL-BLU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-BENCH4-2800-WAL-BLUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

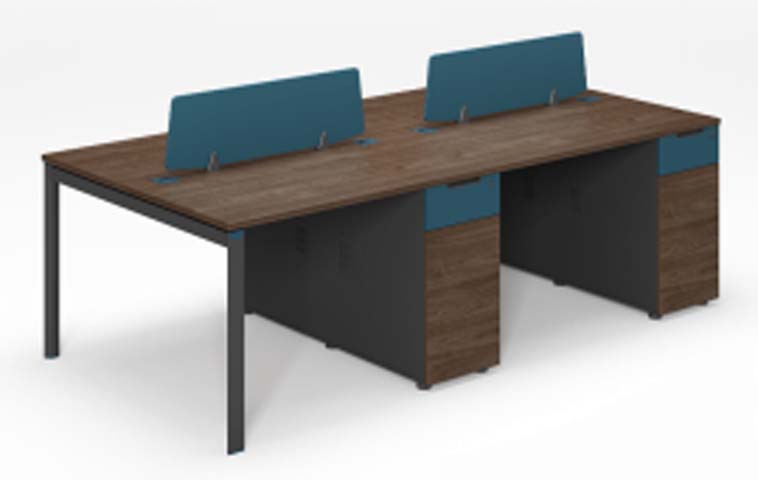

The Four-Person Bench Workstation with Screens and Under-Desk Pedestals is an unbranded office benching solution designed for compact team seating. Model WS-BENCH2800-WAL-BLU uses a two-sided layout, with two users on each long side. Each user pair shares a work bay, a low divider screen and two cable outlets, creating four defined seated positions while preserving the open sightlines associated with bench-style planning. Visually, the workstation combines walnut-look laminate surfaces with dark graphite modesty panels, blue fabric-covered divider screens and matte black metal framing. The worktops and storage panel fronts use wood-grain laminate, while the pedestal fronts include a blue accent strip and black recessed pull. Two low, desk-mounted screens provide separation between facing users without fully enclosing individual positions or blocking overhead collaboration. Dark privacy panels beneath the work surfaces help conceal the under-desk area, and black circular cable grommets provide a neat detail where cabling enters the worktop. Construction is based on wood-grain melamine or high-pressure laminate worktops with black edge banding, supported by a matte black powder-coated square steel tube frame. The divider panels are fabric-wrapped board secured with black metal brackets, and the storage units use laminate side panels and drawer fronts. Two mobile pedestals sit under the desk, offering drawer or file storage while leaving the outer knee bays accessible. Four plastic grommets are set into the worktops near the screens, allowing monitor and power cables to route from the desktop into the under-desk zone. Each work surface is rated for a distributed load of 120 kg, each pedestal drawer is rated for 20 kg, and each divider screen panel has a 5 kg load rating. The drawer slides have a durability target of 50,000 open-close cycles. The reference net weight is 185 kg, component thickness is 40 mm according to load-bearing role, and the recommended floor live load is 3.0 kPa per occupied workstation zone. A 5 mm operating clearance is allowed for hardware and moving parts. This workstation is suited to open-plan office neighbourhoods, project rooms and administrative areas where four staff need shared workspace for monitors, keyboards, paperwork and personal storage. It is particularly appropriate where low visual division is desired without converting the area into enclosed cubicles. Procurement teams should plan for two cartons per set, a 40-minute assembly reference, access and floor-load suitability, placement of the mobile pedestals within the bench layout, and coordination of power and data cabling to the grommet positions.

Four-Person Bench Workstation with Screens and Under-Desk Pedestals Specifications
