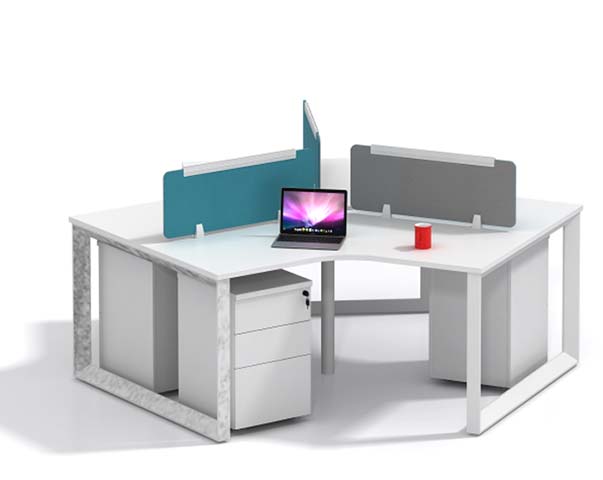

120-Degree 2-Person Office Workstation Cluster with Privacy Screens and Under-Desk Pedestals (model WS-120D-2P-WH) is listed under Open Workstation, with overall dimensions of 2400 × 1600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,workstation,desktop,privacy,dividers,closed-loop,metal,leg,frame,under-desk,drawer,pedestals,two-seat,angled,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2400 x 1600 x 1200 mm | |
|---|---|---|
| Per-user worktop width | 1600 mm | |
| Per-user worktop depth | 800 mm | |
| Standard work surface height | 750 mm | |
| Privacy screen height above worktop | 450 mm | |
| Under-desk pedestal dimensions | 400 x 580 x 645 mm | |
| Seated knee clearance height | 645 mm | |
| Worktop thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Steel frame tube section | 60 x 30 mm | |
| Steel frame wall thickness | 2 mm | |
| Leveling foot adjustment range | 30 mm | |
| Cable grommet diameter | 80 mm | |
| Central support leg cross-section | 80 x 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-position worktop static load | 100 kg | |
|---|---|---|
| Per drawer static load capacity | 100 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Pedestal lock security | Keyed individual lock per unit | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight per position | 136 kg | |
| Frame corrosion resistance | Powder coated finish, 500 hour salt spray rating | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25mm E1 grade melamine-faced particleboard | |
|---|---|---|
| Frame finish | 2mm thick steel tube with white electrostatic powder coating | |
| Edge protection | 2mm thick ABS impact-resistant edge banding | |
| Privacy screens | Fabric-wrapped MFC core panels | |
| Pedestal construction | Melamine-faced particleboard carcass with steel drawer slides | |
| Leveling feet | Reinforced nylon with threaded steel insert |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Floor leveling adjustment | Threaded glides provide 30mm height adjustment | |
|---|---|---|
| Cable management system | Desktop grommets route cords to under-desk cable trays | |
| Privacy divider mounting | Bracketed screen attachment to rear worktop edge | |
| Pedestal mobility | Optional casters allow pedestal repositioning under desk |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Two individual adjacent work zones with visual privacy for team seating | |
|---|---|---|
| Call center or collaborative team area | Angled layout supports adjacent team communication while defining personal space |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, recommended for structural validation | |
|---|---|---|
| EN 1335-2:2009 | Office chair safety requirements, applicable for paired seating compatibility | |
| EN 13986:2004 | Wood-based panels for construction, formaldehyde emission Class E1 requirement |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, recommended for load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | Office chairs standard, for compatible seating load alignment |
Standards applicable to China-market projects
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, recommended acceptance ≤0.124mg/m3 | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and pedestal | |
| GB/T 24821-2009 | Performance requirements for office desks and workstations |
This product must meet the following technical requirements: 1. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended acceptance ≤0.124mg/m3; 2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal; 3. GB/T 24821-2009: Performance requirements for office desks and workstations; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
