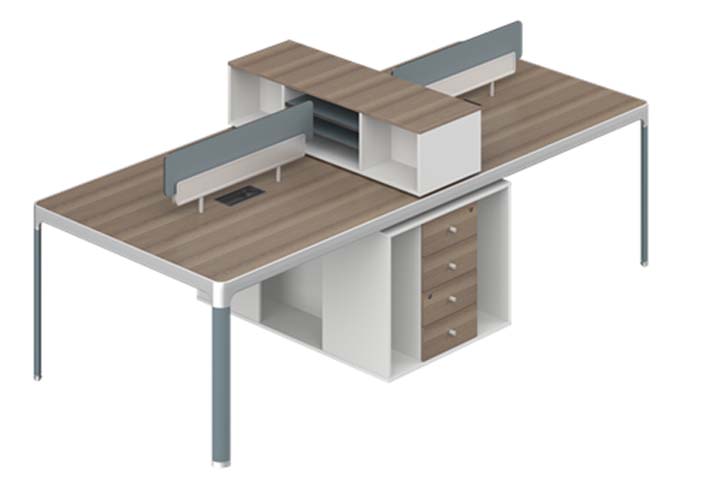

Cross-Shaped 4-Person Office Workstation with Dividers and Under-Desk Storage (model WS-CR4-2400) is listed under Open Workstation, with overall dimensions of 2400 × 2400 × 750 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,workstation,4-person,seating,integrated,storage,privacy,dividers,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 2400 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 165 kg | |
|---|---|---|
| Desktop static load capacity | 100 kg | |
| User capacity | 4 people | |
| Adjustable foot height range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panels | 25 mm melamine-faced particleboard with 2 mm ABS edge trim | |
|---|---|---|
| Support frame and legs | Powder-coated steel tubing with gray-blue finish | |
| Privacy divider panels | Fabric-upholstered acoustic board with light gray lower trim | |
| Central and under-desk storage carcass | 18 mm melamine-faced particleboard with matte light gray finish | |
| Drawer fronts | 18 mm melamine-faced particleboard with matching wood-grain finish | |
| Hardware components | Zinc-plated steel drawer slides, lock cores, connecting bolts and leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workspace division | Cross-mounted fabric dividers separate four individual work zones to reduce cross-user visual distraction | |
|---|---|---|
| Integrated storage | Central overhead open cubbies and under-desk lockable 4-drawer pedestal provide on-desk and under-desk document storage | |
| Cable management | Recessed desktop cable grommet and internal routing channels guide power and data cords away from work surfaces | |
| Leveling adjustment | Adjustable feet on each table leg allow stable installation on uneven indoor office floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | 4-person cross layout maximizes space efficiency for team-based departments and general administrative staff | |
|---|---|---|
| Startup and shared workspaces | Integrated storage and dividers balance privacy and collaboration without requiring additional ancillary furniture |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural load and stability testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensional coordination for seating and desk clearance alignment |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability and stability performance verification |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel components and structural performance | |
|---|---|---|
| GB/T 3327-2016 | Performance and dimension standards for office desks and workstations, applicable to structural safety and sizing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel components and structural performance; 2. GB/T 3327-2016: Performance and dimension standards for office desks and workstations, applicable to structural safety and sizing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
