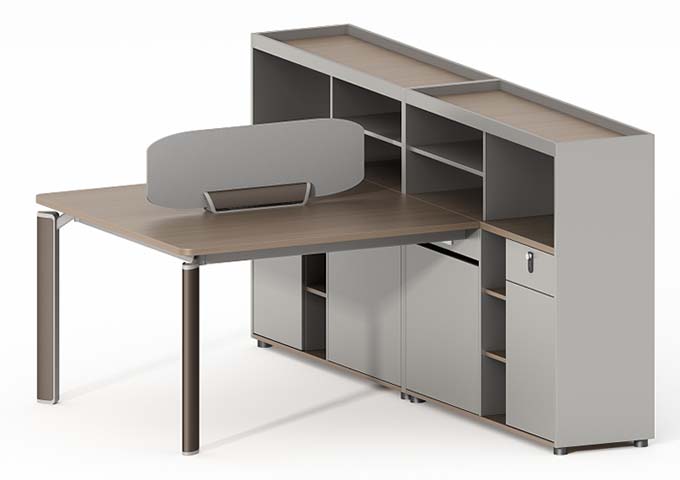

L-Shaped Executive Workstation with Integrated Storage Hutch and Privacy Divider (model OFD-LWS-1600) is listed under Open Workstation, with overall dimensions of 1600 × 1800 × 1200 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: Modern,furniture,L-shaped,workstation,integrated,storage,desktop,privacy,screen,lockable,drawer. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1600 x 1800 x 1200 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended maximum user weight load | 150 kg | |
|---|---|---|
| Work surface distributed load capacity | 80 kg | |
| Product net weight | 115 kg | |
| Standard warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and shelf panels | 18mm thick E1 grade melamine faced particleboard, 1mm PVC edge banding | |
|---|---|---|
| Desk support legs | 60mm diameter powder coated carbon steel tube, polished ABS end caps | |
| Privacy divider | 12mm thick MDF core, grey fabric wrap, polished metal mounting bracket | |
| Cabinet carcass | 16mm thick E1 grade melamine faced particleboard, matching PVC edge banding | |
| Door and drawer panels | 18mm thick melamine faced particleboard, soft-close concealed hinges | |
| Leveling feet | Injection molded nylon, zinc-plated steel threaded stem |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Built-in rear cable routing channel between work surface and hutch for office wiring | |
|---|---|---|
| Lockable storage drawer | Keyed cam lock secures top drawer for private document storage | |
| Desktop privacy divider | Curved fabric screen blocks direct line of sight for focused individual work | |
| Adjustable floor leveling | Threaded feet compensate for uneven flooring to keep work surface stable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Flat pack carton dimensions | 1850 x 900 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suitable for individual managers requiring integrated storage and private work space | |
|---|---|---|
| Open plan office cubicle | Configurable as high-partition workstation for reduced visual distraction |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety and ergonomic requirements | |
| EN 13722:2004 | Office furniture storage units strength and durability requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance and safety test standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units for office environments performance standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk carcass and panels | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks, applicable to work surface and structural stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all board components | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture finishes, applicable to melamine worktops |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk carcass and panels; 2. GB/T 3327-2017: Performance requirements for office desks, applicable to work surface and structural stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all board components; 4. GB/T 4893.8-2013: Surface wear resistance test for furniture finishes, applicable to melamine worktops; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
