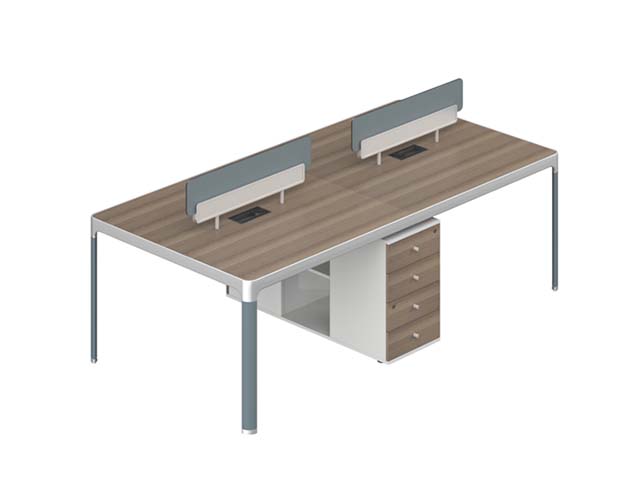

4-Person Face-to-Face Office Workstation with Divider Screens and Storage Pedestal (model WS-4P-2400-1200-MOB) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modular,workstation,seating,integrated,cable,management,under-desk,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 120 kg | |
|---|---|---|
| Recommended user weight capacity per seat | 120 kg | |
| Unit net weight | 85 kg | |
| Adjustable foot leveling range | 10 mm | |
| Surface abrasion resistance rating | 2000 cycles | |
| Recommended product service life | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and finish | 25mm E1 grade particleboard with walnut woodgrain melamine finish | |
|---|---|---|
| Frame and leg construction | 1.2mm thick powder-coated matte grey steel tube frame and cylindrical legs | |
| Divider screen structure | 18mm MDF core with two-tone fabric and laminate upholstery, steel support posts | |
| Edge protection | 2mm thick impact-resistant ABS edge banding on all desktop perimeters | |
| Mobile pedestal construction | 18mm melamine-faced particleboard cabinet body, 4 drawers with polished metal pulls | |
| Cable grommet finish | Black ABS plastic embedded cable port with brush seal |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Supports 4 users in face-to-face arrangement for open office teamwork | |
|---|---|---|
| Cable management | Two embedded brush-seal cable ports route power and data cables below desktop | |
| Under-desk storage | Integrated mobile 4-drawer pedestal fits under desk for personal file and supply storage | |
| Privacy screening | Two dual-seat dividers separate facing workstations to reduce visual distraction |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total carton gross weight | 102 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office work areas | Suitable for 4-person team workstations to maximize open office density while preserving individual privacy | |
|---|---|---|
| Co-working and flexible office spaces | Designed for shared work environments with modular expansion capability and integrated storage for hot-desking use |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and performance requirements for commercial workplace use | |
|---|---|---|
| EN 527-2:2016 | Office worktables mechanical safety, strength and durability test methods | |
| EN 1335-1:2020 | Office furniture ergonomic dimensional requirements for seated workstations |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to desk and pedestal structural testing | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture safety and performance requirements, applicable to steel frame and leg testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to particleboard components | |
| GB/T 10357.1-2013 | Furniture mechanical test for table surface strength and durability, applicable for desktop load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desk and pedestal structural testing; 2. GB/T 3325-2017: Metal furniture safety and performance requirements, applicable to steel frame and leg testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particleboard components; 4. GB/T 10357.1-2013: Furniture mechanical test for table surface strength and durability, applicable for desktop load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
