PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed worktop load	80 kg
Pedestal drawer load	15 kg per drawer
Workstation net weight	58 kg
Floor loading footprint	0.035 kg per square centimeter of foot contact
Drawer slide durability target	50,000 open-close cycles
Pedestal stability test reference	20 kg extended-drawer tip-resistance load
Work surface seating capacity	2 task chairs
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak grain and dark 2 mm edge banding
Support frame	Graphite-gray powder-coated square steel legs and side rails
Fixed pedestal	Graphite-gray and light-oak melamine-faced panel cabinet with two drawer fronts
Drawer runners	Side-mounted ball-bearing metal slides with outward extension
Central divider	18 mm panel wrapped in blue-gray woven fabric
Cable and divider fitting	Silver-finish metal clamp with circular cable pass-through

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person facing layout	Two users work from opposite sides, each with a 600 mm-deep task zone separated by a central divider
Personal storage	A fixed two-drawer pedestal provides one shallow stationery drawer and one lower filing drawer integrated with the worktop support
Central cable routing	The metal divider fitting includes a circular cable port for monitor or power leads to pass through the work-zone center
Visual privacy	A 350 mm-high fabric divider blocks the immediate seated sightline while retaining open office visibility above the panel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person bench clusters where opposite-facing users need a compact 1400 mm footprint, storage, and moderate visual privacy
Administrative or clerical workspace	Suitable for daily document, laptop, and monitor work, with one fixed pedestal for personal filing and stationery storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-FP-1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-FP-1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-FP-1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

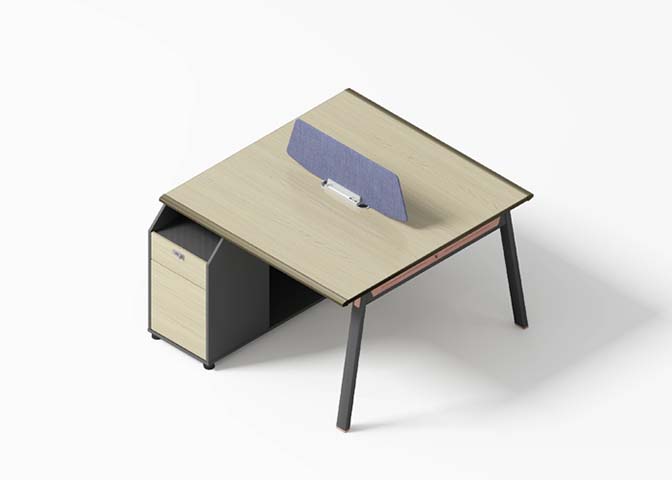

The Two-Person Panel-Based Office Workstation is an unbranded model WS-2P-FP-1400 designed for facing bench-style work in open-plan and administrative environments. Its layout places two users on opposite sides, with a 600 mm-deep task zone on each side and a central divider separating the immediate work areas. The divider has a low, 350 mm-high profile, giving seated users visual privacy at desk level while preserving sightlines and an open feel above the panel. The overall composition combines light oak-grain work surfaces with graphite-gray framing and a blue-gray woven fabric divider for a restrained, contemporary office appearance. The work surface is built from 25 mm melamine-faced particleboard with a light oak grain and dark 2 mm edge banding, while the finished top thickness is 50 mm. Support is provided by graphite-gray powder-coated square steel legs and side rails. The main leg section measures 80 mm with a 2 mm metal wall, and each main seat position offers 680 mm high and 900 mm wide knee clearance. The fixed pedestal uses graphite-gray and light-oak melamine-faced panels with two drawer fronts, integrated into the worktop support. Its upper shallow drawer suits stationery, and the lower filing drawer provides personal document storage. Drawers run on side-mounted ball-bearing metal slides with outward extension. Practical features center on shared efficiency and basic cable organization. A silver-finish metal clamp secures the divider and includes a circular 80 mm cable pass-through, allowing monitor or power leads to route through the center of the workstation rather than across the work surface. A cable tray with 120 mm depth supports lead containment below. The workstation is rated for two users, with a distributed worktop load of 80 kg and a 15 kg load per pedestal drawer. This model is suited to two-person bench clusters, clerical offices, administrative departments, and other compact work settings where document, laptop, and monitor tasks take place. It is also appropriate for residential use only where a commercial-style double desk with integrated storage is desired. Procurement planning should account for fixed rather than mobile pedestal storage, assembly time of 40 minutes per set, and delivery in multiple cartons. Buyers should also confirm building access, floor protection, assembly coordination, and the need for two-person handling, given the workstation’s 58 kg net weight and substantial packaged configuration.

Two-Person Panel-Based Office Workstation with Fixed Pedestal and Center Divider Specifications
