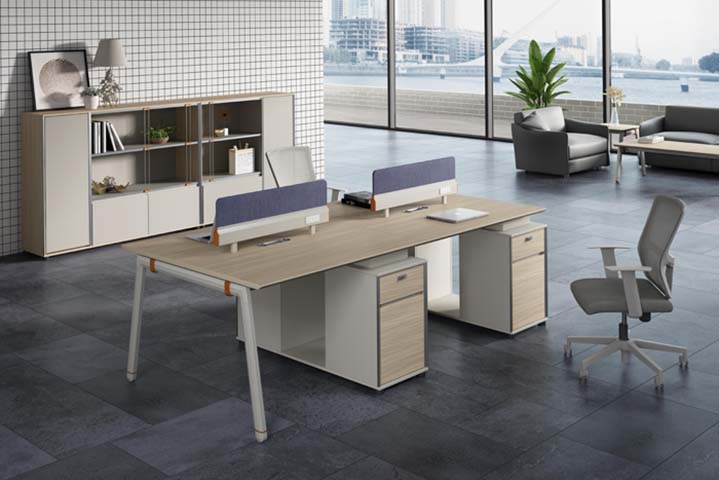

Four-Person Open-Plan Office Workstation with Divider Screens and Under-Desk Pedestals (model WS-4P-OAK-WHT-2400) is listed under Open Workstation. Dimensions: 2400 × 1200 × 1100 mm. Materials: 25 mm wood-grain high-pressure laminate or melamine board with sealed edge banding. Load capacity: 120 kg. Product Features: modern,style,four-person,benching,structure,fabric,screens,laminate,under-desk,storage. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-4P-OAK-WHT-2400 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Distributed worktop load | 120 kg | Per-seat worktop load | 40 kg |
| Pedestal top load | 30 kg | Lower file drawer load | 25 kg |
| Upper drawer load | 10 kg | Net weight | 165 kg |
| Seating capacity | 4 users | Panel acoustic role | Speech-dampening desk-level divider, not a certified acoustic partition |
| Pedestal drawer cycle target | 50,000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface | 25 mm wood-grain high-pressure laminate or melamine board with sealed edge banding | Storage carcass | 18 mm light-grey and oak-toned melamine-faced particleboard |
| Steel support frame | Light-grey painted rectangular steel legs and perimeter rails with orange joint accents | Divider panels | Blue-grey woven fabric over composite board with light-grey lower trim |
| Drawer fronts | Oak-tone laminate panels with integrated recessed pulls and grey edge framing | Hardware | Ball-bearing drawer slides, leveler feet, frame connectors and screen support posts |
| Seating layout | Face-to-face four-person benching layout with two 1200 mm work positions per side | Visual separation | Two upholstered desk-mounted screens separate adjacent users without blocking room sightlines |
| Storage arrangement | Two under-top pedestals provide one shallow drawer and one deep filing drawer per two adjacent users | Cable management | Recessed desktop cable ports route cables toward the under-top frame zone |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open office areas | Four-person benching unit for team zones where shared support and individual screens are needed |
| Project procurement fit | Suitable for standardized office floors needing combined work surfaces, storage and divider panels | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop load | 120 kg | |
|---|---|---|
| Per-seat worktop load | 40 kg | |
| Pedestal top load | 30 kg | |
| Lower file drawer load | 25 kg | |
| Upper drawer load | 10 kg | |
| Net weight | 165 kg | |
| Seating capacity | 4 users | |
| Panel acoustic role | Speech-dampening desk-level divider, not a certified acoustic partition | |
| Pedestal drawer cycle target | 50,000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain high-pressure laminate or melamine board with sealed edge banding | |
|---|---|---|
| Storage carcass | 18 mm light-grey and oak-toned melamine-faced particleboard | |
| Steel support frame | Light-grey painted rectangular steel legs and perimeter rails with orange joint accents | |
| Divider panels | Blue-grey woven fabric over composite board with light-grey lower trim | |
| Drawer fronts | Oak-tone laminate panels with integrated recessed pulls and grey edge framing | |
| Hardware | Ball-bearing drawer slides, leveler feet, frame connectors and screen support posts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating layout | Face-to-face four-person benching layout with two 1200 mm work positions per side | |
|---|---|---|
| Visual separation | Two upholstered desk-mounted screens separate adjacent users without blocking room sightlines | |
| Storage arrangement | Two under-top pedestals provide one shallow drawer and one deep filing drawer per two adjacent users | |
| Cable management | Recessed desktop cable ports route cables toward the under-top frame zone |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office areas | Four-person benching unit for team zones where shared support and individual screens are needed | |
|---|---|---|
| Project procurement fit | Suitable for standardized office floors needing combined work surfaces, storage and divider panels |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
