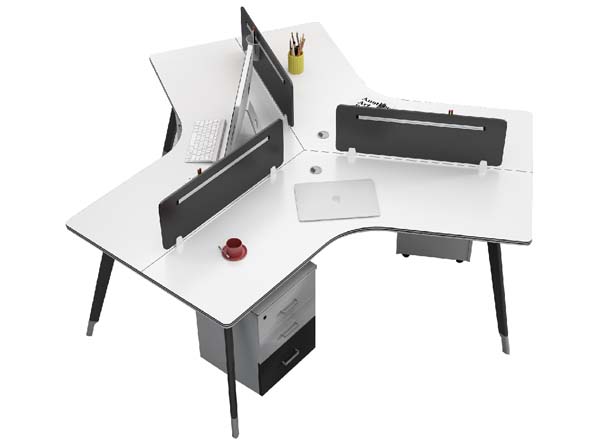

Product supplier120-Degree 3-Person Cluster Office Workstation Desk with Dividers, 25mm E1-grade particleboard with matte white melamine finish and black PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2400 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity per station | 120 kg | |
|---|---|---|
| Total product net weight | 195 kg | |
| Recommended user capacity | 3 people | |
| Drawer static load per drawer | 25 kg | |
| Divider panel impact resistance | 15 J | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Product service life recommendation | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panel | 25mm E1-grade particleboard with matte white melamine finish and black PVC edge banding | |
|---|---|---|
| Support legs | Tapered 50mm powder-coated black steel tubes with grey anti-slip floor glides | |
| Desk dividers | Acrylic core with black fabric outer covering and integrated cable management slots | |
| Mobile pedestal body | 0.8mm cold-rolled steel with light grey epoxy powder coat | |
| Pedestal drawer fronts | Black powder-coated steel with recessed metal pull handles | |
| Cable grommets | ABS plastic with brushed silver finish | |
| Pedestal casters | 50mm black nylon swivel casters, 2 per pedestal with brake function | |
| Structural support frame | 20x40mm rectangular powder-coated steel cross-bracing under worktops | |
| Divider mounting brackets | White ABS plastic clips securing screens to worktop surface | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 3-station 120-degree layout | Evenly spaced angular work positions to support collaborative team work while minimizing unused floor space | |
|---|---|---|
| Privacy divider screens | Mounted between adjacent stations to block direct line of sight for reduced visual distraction during focused work | |
| Integrated cable management | Round grommets at each station and divider slots route monitor and power cables off the work surface for a tidy layout | |
| Mobile under-desk storage pedestals | 3-drawer rolling units fit under each worktop to hold documents and office supplies, lockable for personal storage | |
| Levelling floor glides | Adjustable grey glides on leg ends to compensate for uneven office flooring and stabilize the workstation | |
| Modular assembly | Bolt-together construction allows disassembly for office reconfiguration or relocation | |
| Smooth worktop surface | Stain-resistant melamine finish supports writing, keyboard use and placement of monitors and desk accessories | |
| Caster mobility for pedestals | Swivel casters allow pedestals to be pulled out for access or repositioned under the desk when not in use | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | 3-person clustered layout supports small team collaboration while giving each user dedicated personal workspace | |
|---|---|---|
| Startup and co-working spaces | Compact angular footprint maximizes seating count without wasting floor space in flexible work environments | |
| Call center and back office zones | Divider screens reduce visual distraction to support focused task work for extended shifts | |
| Small team project rooms | Station layout facilitates easy communication between team members without requiring users to turn away from their work surfaces | |
| Quick-deploy temporary office spaces | Modular bolt-together assembly allows fast installation and reconfiguration as team sizes change |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office desk safety and strength | EN 527:2011 Office work tables and desks, safety requirements | |
|---|---|---|
| Office desk stability | EN 527:2002 Office work tables and desks, mechanical safety test methods | |
| Furniture formaldehyde emission | EN 13986:2004 Wood-based panels for construction, E1 emission class |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk load and durability | ANSI/BIFMA X2021Desk Products standard | |
|---|---|---|
| Mobile pedestal durability | ANSI/BIFMA X2019Storage Units standard |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desk panel formaldehyde emission | GB/T 18580E1 limit | |
|---|---|---|
| Desk structural stability | GB/T 3324General technical requirements for wooden furniture | |
| Steel frame coating adhesion | GB/T 1993Impact resistance test for paint films |
Standardized tender description text
This product must meet the following technical requirements: 1. Desk panel formaldehyde emission: GB/T 18580E1 limit; 2. Desk structural stability: GB/T 3324General technical requirements for wooden furniture; 3. Steel frame coating adhesion: GB/T 1993Impact resistance test for paint films; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
