PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	132 kg
Distributed desktop load	80 kg per seat
Pedestal top load	40 kg
Drawer load capacity	15 kg
Seating capacity	2 users
Leveling adjustment	10 mm
Suggested warranty period	5 years
Color options	2 visible finishes
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with sealed matching edge banding
Storage cabinets	18 mm melamine-faced board carcass with light doors and charcoal side panels
Structural supports	Powder-coated steel panel leg and black modesty/support panels
Privacy screens	Fabric-wrapped divider panel with silver metal mounting clamp
Drawer and door hardware	Black lock cylinders, drawer slide hardware and hinged lower door
Floor protection	Circular black nylon or PP leveling glides at cabinet and panel-leg bases

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person seating layout	Back-to-back workstations use four connected top panels and two low central screens to separate users
Integrated personal storage	Each outer pedestal provides one shallow lockable drawer and one lower door compartment for personal or office storage
Cable routing	Each user position includes one 60 mm circular cable grommet feeding into the cabinet-side cable zone
Leveling and floor fixing	Floor-standing cabinets and panel legs use adjustable glides for installation on uneven office floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.420 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suited to two-person bench clusters in open offices because low screens separate sightlines while retaining compact collaboration access
Staff or administrative work area	Integrated pedestals and cable grommets support daily computer work, filing and personal storage without adding separate mobile cabinets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety recommendation	EN 527safety, strength and durability requirements for office work tables
Office desk test recommendation	EN 527 mechanical safety, strength and durability test methods
Storage furniture recommendation	EN 14073safety requirements for office storage furniture
Office storage durability recommendation	EN 14073stability and structural strength test methods

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600 E1 limit for artificial board used in desks and storage panels
Wood furniture surface recommendation	GB/T 3324 general technical requirements for wooden furniture dimensions, edge sealing and workmanship
Hardware acceptance recommendation	GB/T 10357 drawer and cabinet strength and stability test methods for desk-integrated storage

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600 E1 limit for artificial board used in desks and storage panels;
2. Wood furniture surface recommendation: GB/T 3324 general technical requirements for wooden furniture dimensions, edge sealing and workmanship;
3. Hardware acceptance recommendation: GB/T 10357 drawer and cabinet strength and stability test methods for desk-integrated storage;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2400-PED-SCREEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2400-PED-SCREEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2400-PED-SCREENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

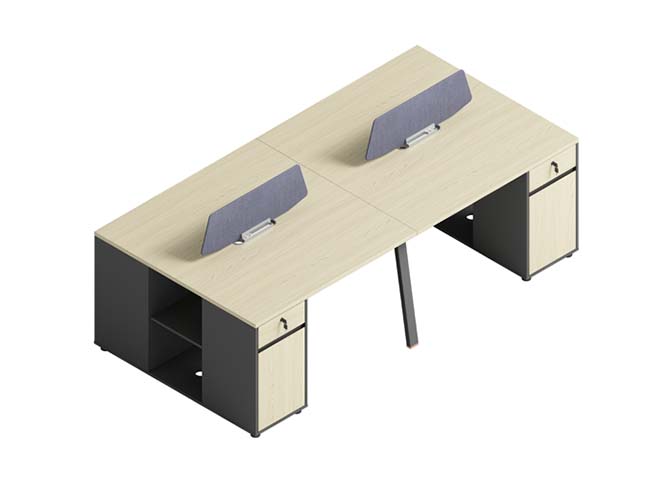

The Two-Person Panel-Leg Workstation with Integrated Pedestals and Privacy Screens is a structured office workstation designed for back-to-back use. Its layout uses four connected top panels with two low central divider screens, creating separate work zones while keeping the overall bench arrangement compact and easy to access. The integrated pedestals sit at the outer positions, giving each user a defined storage area close at hand without requiring separate mobile cabinets. Visually, the workstation combines light-toned storage doors with charcoal side panels, black modesty and support panels, and charcoal powder-coated steel panel legs. The low fabric-covered screens add a softer surface to the bench layout and are secured with metal mounting brackets. This gives the system a modern commercial appearance suited to organized open-plan environments while maintaining visual separation between users. The work surfaces use melamine-faced particleboard with sealed matching edge banding, while the storage cabinets use melamine-faced board construction. Each pedestal includes one shallow lockable drawer and one lower door compartment with hinged access, supporting personal belongings, office supplies, and filing. Black lock cylinders, drawer slide hardware, and the lower door hardware provide the practical operating components. The steel panel leg section forms a substantial structural support, and circular black nylon or PP leveling glides are fitted at the cabinet and panel-leg bases to help installation on uneven office floors. Each seating position includes a circular cable grommet that feeds cabling into a cabinet-side routing zone, helping keep computer and power leads controlled around the work surface. The seating layout is planned for two users, with distributed desktop loading and separate pedestal and drawer load capacities as part of the product specification. Leveling adjustment is incorporated into the floor-standing base system. This workstation is well suited to two-person bench clusters in open-plan offices, where the low screens reduce direct sightlines without blocking nearby collaboration. It is also appropriate for staff or administrative work areas that combine daily computer tasks, paperwork, filing, and personal storage in one fixed footprint. Buyers should plan for two main users, review available floor space and circulation requirements, and coordinate delivery and assembly access. The product is supplied unbranded and should be specified by its model and included components, storage configuration, screen layout, support finish, and cable management provisions.

Two-Person Panel-Leg Workstation with Integrated Pedestals and Privacy Screens Specifications
