PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 1200 × 1120 mm
Work surface height	750 mm
Per-seat worktop width	1400 mm
Per-side worktop depth	600 mm
Privacy divider height above worktop	370 mm
Worktop panel thickness	25 mm
PVC edge banding thickness	2 mm
Seated knee clearance height	650 mm
Knee clearance depth per seat	450 mm
Per-user pedestal dimensions	400 x 500 x 680 mm
Open under-desk shelf dimensions	400 x 280 x 600 mm
Steel leg tube wall thickness	1.5 mm
Divider panel thickness	25 mm
Raised divider shelf dimensions	300 x 200 x 30 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cluster net weight	125 kg
Work surface static load capacity	120 kg
Drawer slide cycle rating	50000 cycles
Cabinet door hinge cycle rating	80000 cycles
Maximum recommended user weight per seat	136 kg
Cable grommet cable capacity	8 cables per port
Surface abrasion resistance	2000 cycles
Warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm melamine-faced chipboard, grey matte finish, stain and scratch resistant
Edge banding	2mm PVC edge sealing, impact and moisture resistant
Support legs	1.5mm thick powder-coated white steel, angled outrigger design
Central privacy dividers	25mm MDF core with terracotta fabric front accent, light grey structural frame
Storage pedestals	18mm melamine-faced particleboard, light grey carcass, wood-grain drawer/door fronts
Drawer slides	Cold-rolled steel ball-bearing full-extension slides, zinc-plated finish
Cabinet hinges	Cold-rolled steel concealed soft-close hinges, nickel-plated finish
Pedestal bases	Injection-molded plastic leveling glides, 10mm height adjustment
Integrated power units	ABS plastic housing, 250V 10A rated power outlets with USB charging ports
Raised divider shelves	18mm melamine-faced board, matching light grey worktop finish
Pedestal locks	Zinc alloy keyed cam locks, 2 keys per lock
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	6 seated users, 3 per side in linear back-to-back layout
Per-user storage	1 lockable top drawer for stationery, 1 lower lockable cabinet door for personal items
Open under-desk storage	Adjacent open shelf at each seat for books, files or personal items
Central power access	Integrated power and USB outlets mounted on central divider for each pair of seats
Cable management	60mm cable grommets routed through worktop to under-desk cable trays
Leveling adjustment	10mm height adjustment on pedestal and leg glides for uneven floors
Privacy screening	370mm high central dividers reduce visual distraction between opposing seats
Small item display	Raised shelves on central dividers hold plants, stationery or small personal items
Drawer operation	Full-extension drawers open fully to access complete interior without obstruction
Modular reconfiguration	Cluster can be split into smaller 2-person or 4-person sections for layout changes
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate offices	Ideal for large staff departments requiring high-density, organized seating with privacy screening
Call center and customer support floors	Integrated power and per-user storage supports long-shift desk work
Co-working and shared office spaces	Modular design allows flexible layout changes as tenant needs evolve
Startup and tech company work floors	Modern neutral and terracotta accent finish matches contemporary office design schemes
Administrative and back-office departments	Dedicated personal storage reduces desk clutter for routine administrative tasks
Project team work areas	Back-to-back layout supports both individual focused work and quick team collaboration
Educational institution staff offices	Durable commercial construction withstands high daily use in school administration areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for work surfaces and legs
EN 527-2:2019	Office work tables, dimensional requirements for seated workstations
EN 13722:2004	Office furniture, storage cabinets performance and strength requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, covers load capacity, stability and durability requirements
ANSI/BIFMA X5.9-2019	Storage units standard, applies to integrated pedestal drawers and cabinets

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk and storage components
GB/T 3327-2017	Performance requirements for office desks, applicable to work surface load and stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and storage components;
2. GB/T 3327-2017: Performance requirements for office desks, applicable to work surface load and stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L6-3612-TRC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L6-3612-TRC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L6-3612-TRCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

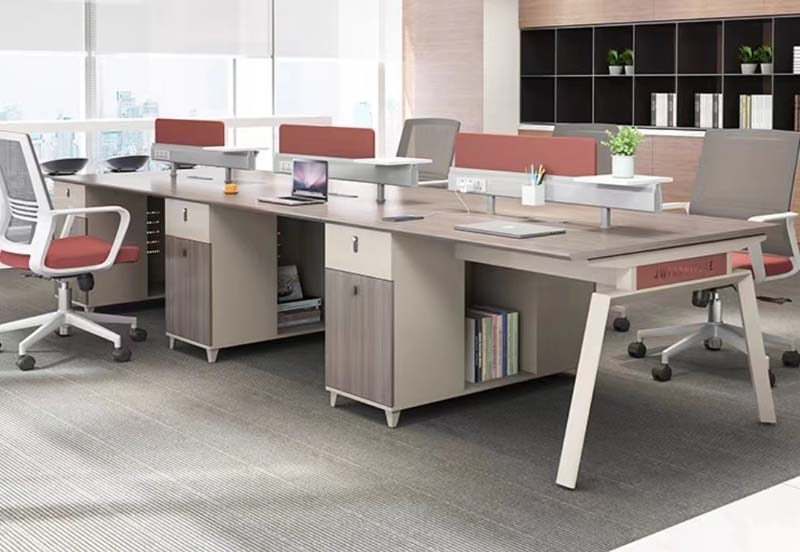

The 6-Person Linear Back-to-Back Modular Office Workstation (model WS-L3612-TRC) is an unbranded open-plan seating solution designed for high-density collaborative work environments. Its linear back-to-back layout arranges three seats per opposing side, anchored by central terracotta fabric-accented privacy dividers set within a light grey structural frame, combining warm accent tones with neutral grey and white finishes for a contemporary visual profile.
Each workstation features 25mm thick grey matte melamine-faced chipboard work surfaces, sealed with 2mm impact and moisture resistant PVC edge banding, supported by 1.5mm thick angled outrigger powder-coated white steel legs. Integrated storage pedestals are constructed from 18mm melamine-faced particleboard with light grey carcasses and wood-grain drawer and door fronts, fitted with zinc-plated cold-rolled steel full-extension ball-bearing drawer slides rated for 50000 open-close cycles, and nickel-plated cold-rolled steel concealed soft-close hinges rated for 80000 cycles. Terracotta privacy dividers sit 370mm above the 750mm high work surface, reducing visual distraction between opposing seats while retaining open sightlines for quick team communication.
The system delivers targeted functional utility for daily office use: each seat includes one lockable top drawer for stationery, one lower lockable cabinet for personal items, and an adjacent open under-desk shelf for books, files or frequently used items. Integrated power units with 250V 10A outlets and USB charging ports are mounted on the central divider for every pair of seats, paired with 60mm cable grommets (each accommodating 8 cables) routed to under-desk cable trays to minimize cord clutter. Injection-molded plastic leveling glides on legs and pedestal bases offer 10mm of height adjustment to compensate for uneven floors, while work surfaces support a 120kg static load, with a maximum recommended user weight of 136kg per seat.
This workstation is suited for open-plan corporate departments, call center and customer support floors, co-working spaces, startup and tech office floors, administrative back-office teams, and project work areas, supporting both individual focused work and quick cross-seat collaboration. For procurement, note the set ships across 4 cartons with a total packaged gross weight of 180kg and 1 cubic meter packaging volume, requiring 40 minutes of assembly per set; no third-party certifications are specified for this model.
