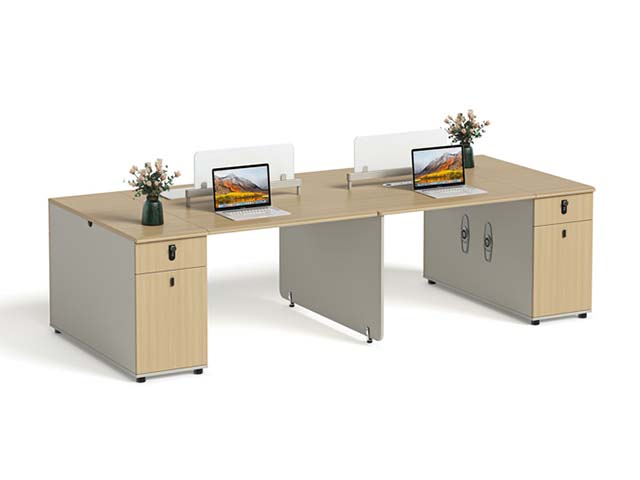

Two-Person Panel Workstation with Side Pedestals and Screens (model WS-2P-2800-OAK-WHT) is listed under Open Workstation. Dimensions: 2800 × 1400 × 1100 mm. Materials: 25 mm laminate-faced wood-composite panel with sealed edge banding; oak-toned finish is visible and substrate grade needs BOM confirmation.. Load capacity: 80 kg per workstation position. Product Features: modern,style,two-person,workstation,pedestal,storage,privacy,screen,laminate,finish,metal,support. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS-2P-2800-OAK-WHT |
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Product net weight | 145 kg |
| Distributed desktop load | 80 kg per workstation position | Pedestal top load | 40 kg per side return |
| Drawer dynamic load | 20 kg per drawer | Seating capacity | 2 users |
| Drawer count | 4 drawers | Privacy screen count | 2 screens |
| Leveling adjustment | 10 mm per foot | Warranty duration | 5 years |
| Top Static Load Reference | 150 kg uniformly distributed | Work surface | 25 mm laminate-faced wood-composite panel with sealed edge banding; oak-toned finish is visible and substrate grade needs BOM confirmation. |
| Storage pedestals | Melamine- or laminate-faced composite panels in matching oak tone, with gray side panels and black adjustable feet. | Privacy screens | White rigid panel screens mounted on silver metal rail brackets; exact acoustic or fabric facing is not visible. |
| Drawer hardware | Black recessed lock and pull fittings with silver escutcheon detail; slide type and lock barrel grade need BOM confirmation. | Structural hardware | Powder-coated metal brackets, rails and foot assemblies connect panels; visible fastener style supports knockdown assembly. |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | Two-person independent work zones | Each user receives a 1400 mm-wide seat position, laptop area, screen and dedicated two-drawer pedestal. |
| Pedestal storage and locking | Each side cabinet provides one shallow top drawer and one taller lower drawer with a visible front lock. | Visual privacy separation | Two 350 mm-high desktop screens separate the seated users while preserving open sightlines above the panels. |
| Leveling and installation | Four pedestal feet and two central support feet level the knockdown desk on uneven floors without permanent floor fixing. | Carton count | 4 cartons |
| Total gross weight | 155 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Open-plan office | Suits a 2800 mm-wide two-seat cluster where staff require individual laptop space, locked drawers and low visual separation. |
| Administrative or finance workspace | Pedestal locks and side-return surfaces support document handling, personal storage and peripheral equipment at each seat. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 145 kg | |
|---|---|---|
| Distributed desktop load | 80 kg per workstation position | |
| Pedestal top load | 40 kg per side return | |
| Drawer dynamic load | 20 kg per drawer | |
| Seating capacity | 2 users | |
| Drawer count | 4 drawers | |
| Privacy screen count | 2 screens | |
| Leveling adjustment | 10 mm per foot | |
| Warranty duration | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm laminate-faced wood-composite panel with sealed edge banding; oak-toned finish is visible and substrate grade needs BOM confirmation. | |
|---|---|---|
| Storage pedestals | Melamine- or laminate-faced composite panels in matching oak tone, with gray side panels and black adjustable feet. | |
| Privacy screens | White rigid panel screens mounted on silver metal rail brackets; exact acoustic or fabric facing is not visible. | |
| Drawer hardware | Black recessed lock and pull fittings with silver escutcheon detail; slide type and lock barrel grade need BOM confirmation. | |
| Structural hardware | Powder-coated metal brackets, rails and foot assemblies connect panels; visible fastener style supports knockdown assembly. | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-person independent work zones | Each user receives a 1400 mm-wide seat position, laptop area, screen and dedicated two-drawer pedestal. | |
|---|---|---|
| Pedestal storage and locking | Each side cabinet provides one shallow top drawer and one taller lower drawer with a visible front lock. | |
| Visual privacy separation | Two 350 mm-high desktop screens separate the seated users while preserving open sightlines above the panels. | |
| Leveling and installation | Four pedestal feet and two central support feet level the knockdown desk on uneven floors without permanent floor fixing. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 4 cartons | |
|---|---|---|
| Total gross weight | 155 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits a 2800 mm-wide two-seat cluster where staff require individual laptop space, locked drawers and low visual separation. | |
|---|---|---|
| Administrative or finance workspace | Pedestal locks and side-return surfaces support document handling, personal storage and peripheral equipment at each seat. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
