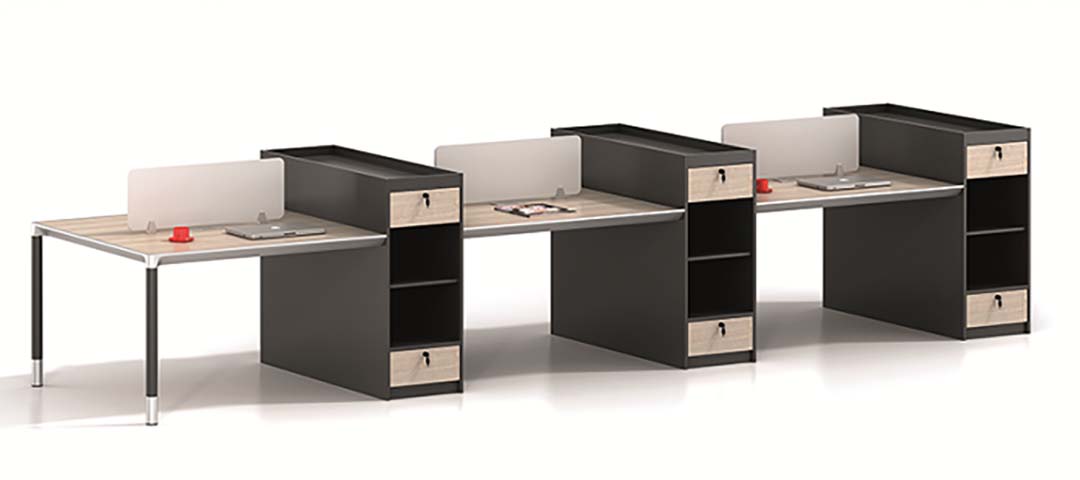

3-Person Linear Bench Office Workstation with Integrated Divider Pedestals (model OFW-3PL-DP1200) is listed under Open Workstation, with overall dimensions of 4800 × 700 × 1100 mm and main material of Particle‑board (PB). Load capacity: 80 kg. Certifications: Modular,bench,structure,integrated,storage,dividers,desk-mounted,privacy,screens,seated,work,height. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 4800 x 700 x 1100 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Per-seat work surface width | 1600 mm | |
| Work surface thickness | 25 mm | |
| Divider pedestal height | 1100 mm | |
| Divider pedestal depth | 600 mm | |
| Divider pedestal width per unit | 400 mm | |
| Low privacy screen height above desk | 350 mm | |
| Knee clearance height under desk | 670 mm | |
| Knee clearance depth per seat | 450 mm | |
| PVC edge banding thickness | 2 mm | |
| Drawer internal usable height | 150 mm | |
| Open shelf internal usable height | 280 mm | |
| Steel support leg outer diameter | 60 mm | |
| Cable grommet internal diameter | 60 mm | |
| Top storage tray depth on pedestal | 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniform static load per work surface | 80 kg | |
|---|---|---|
| Load capacity per lockable drawer | 15 kg | |
| Drawer slide operational cycle life | 50000 cycles | |
| Unit net weight | 200 kg | |
| Recommended maximum user weight per seat | 110 kg | |
| Cable tray rated load | 5 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1-grade melamine-faced particleboard | |
|---|---|---|
| Edge banding | 2mm PVC, hot-melt laminated to all exposed panel edges | |
| Support legs | Powder-coated cylindrical steel, chrome-plated foot caps | |
| Divider pedestals | 18mm melamine-faced particleboard, dark charcoal finish | |
| Drawer fronts | Light oak-look melamine-faced particleboard with keyed locks | |
| Privacy screens | Matte light gray rigid composite panel, desk-mounted brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration per divider | 2 lockable drawers (top and bottom) + 2 middle open shelves | |
|---|---|---|
| Cable management | Integrated under-desk raceways + top cable channels on pedestals | |
| Modular assembly | Linear connection of 3 individual seat units supported by dividing pedestals | |
| Floor leveling | Adjustable glides on all leg and pedestal bases to correct uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff areas | Linear 3-seat layout for high-density team workspace with personal storage | |
|---|---|---|
| Small business admin departments | Pre-configured cluster for rapid deployment of 3 adjacent work positions |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to safety and dimensional requirements for office work tables | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Applicable to mechanical safety and durability requirements for office desks | |
| EN 13986:2004+A1:2015 | Applicable to formaldehyde emission requirements for wood-based construction panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to durability and safety performance testing for office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture | |
|---|---|---|
| GB 18580-2017 | Applicable to formaldehyde emission limits for wood-based panel materials (E1 grade) | |
| GB/T 10357.1-2013 | Applicable to mechanical performance test methods for desks: static load and stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture; 2. GB 18580-2017: Applicable to formaldehyde emission limits for wood-based panel materials (E1 grade); 3. GB/T 10357.1-2013: Applicable to mechanical performance test methods for desks: static load and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
