PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	78 kg
Desktop distributed load	80 kg per user
Overhead shelf load	25 kg total
Pedestal shelf load	20 kg
Suggested user capacity	2 persons
Panel fastener lateral pull-out	15 kg per fitting
Drawer-slide cycle target	0 cycles
Surface abrasion acceptance	Class 2A, 40,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particle board with sealed PVC edge banding
Storage panels	18 mm grey melamine-faced engineered board with matching edge banding
Center privacy screen	Fabric-wrapped panel with woven dark-grey textile over an internal board core
Support legs	White powder-coated round steel tubes with welded top fixing plates
Leveling feet	Injection-molded black nylon pads with adjustable threaded inserts
Joining hardware	Zinc-plated steel cam locks, dowels, corner brackets and floor glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person seated work layout	Two side-by-side work zones share one bench structure while the vertical divider limits direct visual contact
Center cable and divider service zone	A recessed dark strip anchors the divider and provides a 250 mm cable-routing channel between users
Open overhead storage	The full-width rear hutch provides two open compartments for books, files or desktop accessories
Right-end pedestal support	The floor-standing cabinet supports one end of the top and includes an open lower cubby for storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office benching	Suitable for two adjacent staff positions where visual separation and compact overhead filing are required
Study or shared back-office area	Fits two-person administrative, drafting or computer tasks with storage located at one end and clear knee space at the legs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength and durability	EN 527 mechanical safety, strength and durability requirements for work tables and desks
Office furniture dimensional safety	EN 527dimensions and safety requirements for office work tables
Storage furniture stability	EN 14073safety requirements for office storage furniture supporting the pedestal and hutch
Upholstered panel fire behavior	EN 1021and EN 1021cigarette and match ignition tests for the fabric-wrapped divider

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Work surface physical property acceptance	GB/T 3324, dimensions, edge quality, strength and stability tests for wooden furniture
Formaldehyde emission acceptance	GB 18580, emission limits for engineered wood components used in indoor furniture
Office furniture safety acceptance	GB/T 3326, dimensional coordination and clearance checks for desks and storage furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Work surface physical property acceptance: GB/T 3324, dimensions, edge quality, strength and stability tests for wooden furniture;
2. Formaldehyde emission acceptance: GB 18580, emission limits for engineered wood components used in indoor furniture;
3. Office furniture safety acceptance: GB/T 3326, dimensional coordination and clearance checks for desks and storage furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1500-DIV-OHS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1500-DIV-OHS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1500-DIV-OHSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

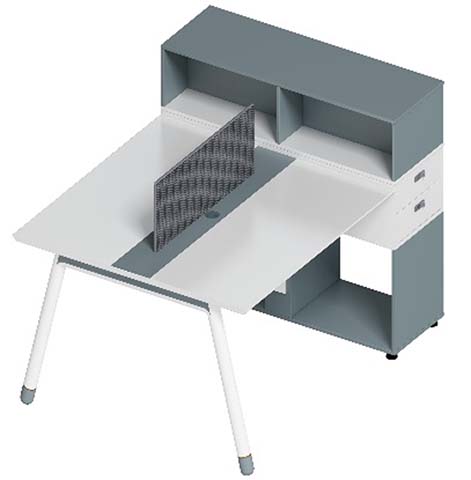

The Two-Person Workstation with Center Divider and Overhead Storage, model WS-2P-1500-DIV-OHS, is an unbranded office workstation designed for two adjacent seated positions in one coordinated bench layout. Its grey and white finish combines a broad work surface, a vertical center privacy screen, full-width rear overhead storage, and a right-end pedestal support. The layout places two work zones side by side while limiting direct visual contact between users, creating a compact arrangement suitable for individual focused work within a shared setting. At the rear, the open hutch is divided into two compartments for books, files, and desktop accessories. The floor-standing pedestal at the right end supports one end of the top and includes an open lower cubby for additional storage. The work surface is made from 25 mm melamine-faced particle board with sealed PVC edge banding, while storage panels use 18 mm grey melamine-faced engineered board with matching edge banding. The finished top thickness is 50 mm. The center divider is a fabric-wrapped panel with woven dark-grey textile over an internal board core. White powder-coated round steel tubes with welded top fixing plates provide support, and the 80 mm main leg section has a 2 mm metal wall. Joining hardware includes zinc-plated steel cam locks, dowels, corner brackets, and floor glides, with black injection-molded nylon leveling feet using adjustable threaded inserts. Practical cable management is integrated into the center service zone. A recessed dark strip anchors the divider and provides a 250 mm cable-routing channel between users. The cable opening is 80 mm in diameter, and the cable tray depth is 120 mm. Each main seat offers 680 mm high and 900 mm wide effective knee clearance. The desktop supports a distributed load of 80 kg per user, the overhead shelf is rated for 25 kg total, and the pedestal shelf supports 20 kg. The workstation is appropriate for open-office benching where two staff positions require visual separation and overhead filing in a space-efficient form. It also suits study spaces or shared back-office areas for two-person administrative, drafting, or computer tasks, particularly where storage at one end and clear leg space are preferred. Procurement planning should account for the 78 kg net product weight and the stated load capacities. The model is supplied as one set, with packaging references indicating multiple cartons and a separate return or pedestal pack; the main top package measures 2500 by 1050 by 350 mm. The reference assembly time is 40 minutes per set. Drawer-slide cycle rating is listed as zero cycles, so selection should be based on the open cubby and shelf configuration rather than drawer use.

Two-Person Workstation with Center Divider and Overhead Storage Specifications

Suppliers and stock
