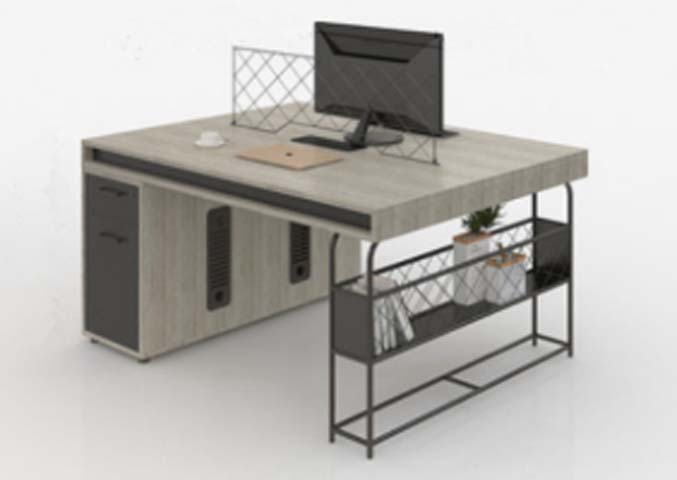

Industrial Concrete-Gray Office Workstation Desk with Left 2-Drawer Pedestal, Right Wire Mesh Shelf and Desktop Divider (model IND-WS-1830-GRY-2DR) is listed under Open Workstation, with overall dimensions of 1830 × 760 × 750 mm and main material of Particle‑board (PB). Load capacity: 500 kg. Certifications: industrial,style,single-user,workstation,integrated,storage,mesh,divider,metal,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1830 x 760 x 750 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Left pedestal dimensions | 400 x 520 x 680 mm | |
| Upper box drawer internal dimensions | 330 x 480 x 120 mm | |
| Lower file drawer internal dimensions | 330 x 480 x 250 mm | |
| Central knee clearance width | 870 mm | |
| Under-desk knee clearance height | 680 mm | |
| Right wire side shelf dimensions | 1200 x 250 x 600 mm | |
| Desktop mesh divider height | 300 mm | |
| Cable management grommet diameter | 60 mm | |
| Steel support tube wall thickness | 1.0 mm | |
| Pedestal panel thickness | 18 mm | |
| Adjustable foot height adjustment | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop evenly distributed static load | 500 kg | |
|---|---|---|
| Upper box drawer rated load | 20 kg | |
| Lower file drawer rated load | 30 kg | |
| Side wire shelf per-tier static load | 20 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Laminate surface Taber abrasion resistance | 500 cycles | |
| Steel frame salt spray corrosion resistance | 500 hours | |
| Product net weight | 92 kg | |
| Recommended seated user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | Thermally fused concrete-gray laminate over particleboard core, scratch and stain resistant | |
|---|---|---|
| Frame and shelf structure | Black powder-coated 19-gauge steel tubular frame, welded joints for rigidity | |
| Left storage pedestal | Light gray wood-look laminate particleboard cabinet with matte black drawer fronts | |
| Mesh components | Diamond-pattern black powder-coated steel wire for desktop divider and side shelf infill | |
| Drawer hardware | Full-extension cold-rolled steel ball-bearing drawer slides, integrated drawer stops | |
| Edge protection | Black PVC T-mold edge banding along worktop perimeter, impact resistant |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer operation | Two stacked pull-out drawers on left pedestal, full-extension slides provide full access to interior | |
|---|---|---|
| Cable management | Vented cable pass-through ports on pedestal inner face route wires from desk surface to floor | |
| Storage configuration | Two-tier open right wire shelf provides accessible open storage for books and small decor | |
| Work surface privacy | Rear diamond-mesh desktop divider creates partial visual separation between adjacent workstations |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office workstations | Suits single-seat open office layouts with integrated storage and partial divider | |
|---|---|---|
| Home office studies | Fits residential work spaces with built-in storage for documents and office supplies |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks: safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables: mechanical safety requirements for adjustable and fixed desks | |
| EN 15372:2016 | Durability and stability requirements for non-domestic office storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Standard for office desks: static, dynamic and durability load testing requirements | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for office storage units including drawer pedestals, slide and lock performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate pedestal and worktop components | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks and workstations, applicable to structural and load testing | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable to laminate worktop |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate pedestal and worktop components; 2. GB/T 3327-2016: Performance requirements for office desks and workstations, applicable to structural and load testing; 3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable to laminate worktop; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
