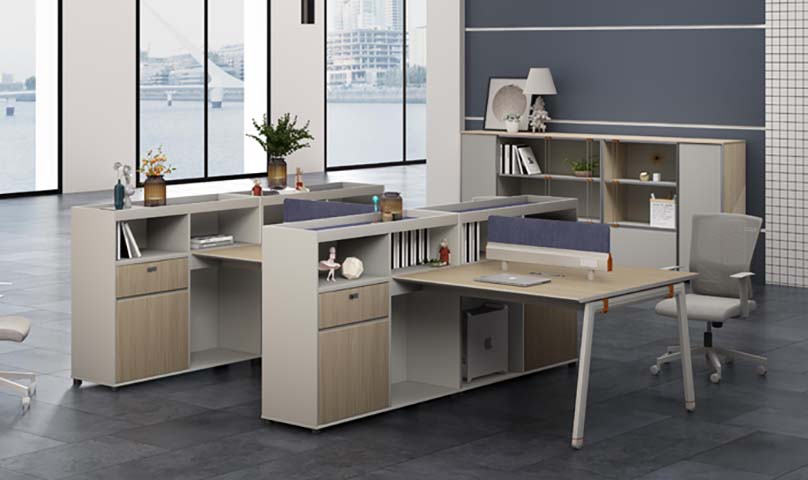

Product supplierFour-Person Modular Office Workstation with Integrated Storage and Dividers, 25 mm melamine-faced particleboard with 2 mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 2800 x 2400 x 1150 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Number of users | 4 people | |
|---|---|---|
| Distributed desktop static load | 120 kg per work surface | |
| Single drawer load rating | 20 kg | |
| Open shelf load rating | 15 kg per shelf level | |
| Total workstation net weight | 260 kg | |
| Rear cabinet static load | 80 kg total | |
| Leveling adjustment per foot | 10 mm | |
| Suggested floor area per person | 1.68 m2 | |
| Hardware durability target | 100,000 drawer cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm melamine-faced particleboard with 2 mm PVC edge banding | |
|---|---|---|
| Storage cabinet panels | 18 mm melamine-faced engineered wood in light gray and oak finish | |
| Privacy panels | Fabric-wrapped divider over 16 mm composite core with aluminum or plastic edge frame | |
| Support frame | Powder-coated square steel legs and horizontal rails with floor glides | |
| Drawer and door hardware | Steel ball-bearing drawer slides, recessed label-pull handles and concealed hinges | |
| Back panels and shelf boards | 8 mm melamine back panel with 18 mm adjustable or fixed shelf boards |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-position benching layout | Two parallel face-to-face workstation pairs share a central storage and divider spine | |
|---|---|---|
| Integrated personal storage | Each outer position includes one shallow drawer and one lower door cabinet for individual storage | |
| Open shelf organization | Center and side shelves provide exposed binder, book and display storage above the seated work zone | |
| Visual privacy separation | Upholstered desktop screens reduce sight lines between adjacent and facing users |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for four employees in call centers, administration teams or shared project areas because storage and dividers are built into the footprint | |
|---|---|---|
| Procurement configuration | Can be specified as a four-seat cluster or repeated in rows for standardized departmental layouts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength recommendation | EN 16139 strength, durability and safety requirements | |
|---|---|---|
| Formaldehyde emission recommendation | EN 13986 E1 classification for wood-based panels | |
| Fabric fire safety recommendation | EN 1021cigarette ignition test for upholstered components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600 E1 limit for engineered-wood panels | |
|---|---|---|
| Wood furniture quality recommendation | GB/T 3324 dimensional and structural furniture acceptance requirements | |
| Fire safety recommendation | GB 8624 B1 flame spread classification for upholstered divider fabrics |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600 E1 limit for engineered-wood panels; 2. Wood furniture quality recommendation: GB/T 3324 dimensional and structural furniture acceptance requirements; 3. Fire safety recommendation: GB 8624 B1 flame spread classification for upholstered divider fabrics; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
