PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	2800 x 1600 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	120 kg
Total workstation weight	185 kg
Seating capacity	2 users
Structure service life reference	8 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface and cabinet panels	18mm thick melamine-faced particleboard, vertical wood grain finish, E1 grade core
Support frame and table legs	1.5mm thick powder-coated steel, matte light grey finish
Privacy screen panel	Fabric-wrapped high-density fiberboard core, grey textured surface
Cabinet door panels	18mm thick melamine-faced particleboard, matching wood grain finish
Adjustable feet	Nylon base with steel threaded stem, black finish
Hardware components	Zinc-alloy lock, steel hinges, nylon cable grommets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated storage system	Combines upper open display shelves, lower lockable cabinets and open CPU bays for organized storage
Desktop privacy divider	Fabric-covered screen mounted between work zones to reduce visual distraction
Integrated power access	Power socket unit mounted on divider base for easy device charging and power connection
Cable management	Desk-top cable grommet and under-desk routing space to organize power and data cables

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Dual-position design supports team-based work while providing individual work privacy
Small team work zones	Integrated storage reduces need for separate filing cabinets, saving floor space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-INT-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-INT-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-INT-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

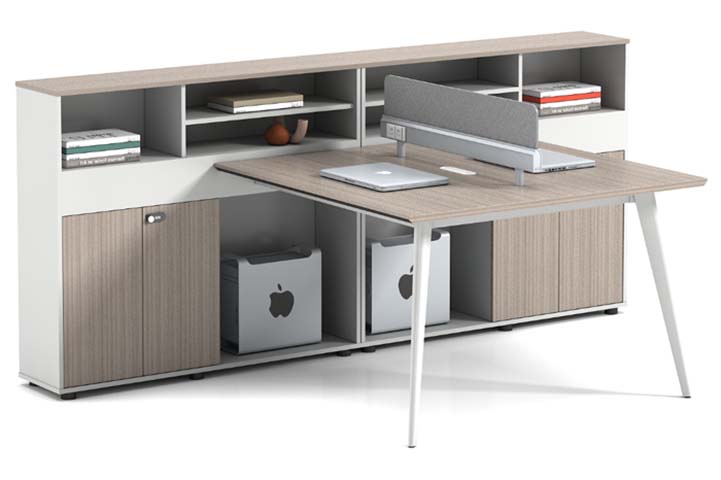

This two-person office workstation balances shared team access and individual personal space, designed to suit collaborative open-plan work environments without sacrificing focused work functionality. Visually, the unit features a clean modern profile with a vertical wood grain finish across all melamine work and cabinet surfaces, paired with a matte light grey powder-coated steel frame. A fabric-wrapped grey textured privacy screen rises between the two dedicated work zones, creating clear visual separation without the closed-off feel of fully partitioned desks. The symmetrical layout positions integrated storage units along the outer edge of each seat, keeping shared walkways clear and maintaining equal access for both users. The 2800 mm wide, 1600 mm deep, and 1100 mm tall unit is built for durable daily use: all work surfaces and cabinet panels use 18 mm thick E1 grade melamine-faced particleboard with a 50 mm thick finished desktop edge, supported by a steel frame with 80 mm main leg sections and 2 mm metal wall thickness. The privacy screen uses a high-density fiberboard core wrapped in textured grey fabric, while adjustable black nylon feet with steel threaded stems keep the unit stable on uneven flooring. Hardware includes zinc-alloy locks, steel hinges, and nylon cable grommets, engineered for consistent long-term operation. Functional design elements support organized, low-distraction work: the integrated storage system combines upper open display shelves, lower lockable cabinets, and open CPU bays to eliminate the need for separate freestanding storage furniture, preserving valuable floor space. The desktop privacy divider cuts down on cross-seat visual distraction, while a power socket unit mounted at the divider base puts charging and power connections within easy reach of both users. A routed cable management system uses 80 mm diameter desktop grommets and a 120 mm deep under-desk cable tray to keep power and data cords tidy and out of sight. Each seat offers 680 mm of vertical knee clearance and 900 mm of width per position, with the desktop supporting 120 kg of static load and a 150 kg uniformly distributed top load. The workstation is ideally suited for open plan office areas and small team work zones, where its dual-seat layout supports close team collaboration while giving each user defined personal work space. For procurement planning, note that each unit ships across cartons, requires 40 minutes of assembly time, and has a total assembled weight of 185 kg, with a structural service life reference of 8 years. Drawer slides support 45 kg per pair with a 50,000-cycle operational life, and hinges meet an 80,000 opening cycle acceptance target, suitable for regular daily office use.

FurnDim

Two-Person Office Workstation with Integrated Storage and Privacy Screen Specifications

WS-2P-INT-2800
