PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation weight	165 kg
Static distributed top load	120 kg total, 60 kg per user
Pedestal drawer load	25 kg per drawer
Open shelf load	15 kg per shelf
Occupant capacity	2 users
Chair clearance per position	750 mm nominal seat zone
Leveling adjustment	10 mm
Suggested warranty	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain high-pressure laminate panel with sealed impact-resistant edge
Cabinet carcass	18 mm graphite-gray melamine-faced particleboard panels
Back and modesty panels	18 mm gray laminated panel with exposed vertical support sides
Divider screens	Rigid light-gray panel with a slim gray lower rail and two mounting clips
Center support	50 mm round powder-coated steel post with floor contact foot
Cabinet hardware	Epoxy-coated drawer fronts, adjustable leveling feet and concealed panel connectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Face-to-face benching layout	Two users sit on opposite sides of a shared linear bench, with low screens separating their work zones.
Privacy divider system	Two 320 mm-high panels clamp to the work surface and reduce direct visual distraction.
Integrated end storage	Each outer end combines a floor cabinet, lower drawer-front zone and upper open shelf.
Central cable management	A 60 mm desk grommet position is included beneath each work surface for monitor and power cables.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for two-person departments that need separated work surfaces but compact shared footprint.
Reception or administrative work area	End cabinets provide document storage while the low screens preserve visitor-facing visibility.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-ENDCAB-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-ENDCAB-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-ENDCAB-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

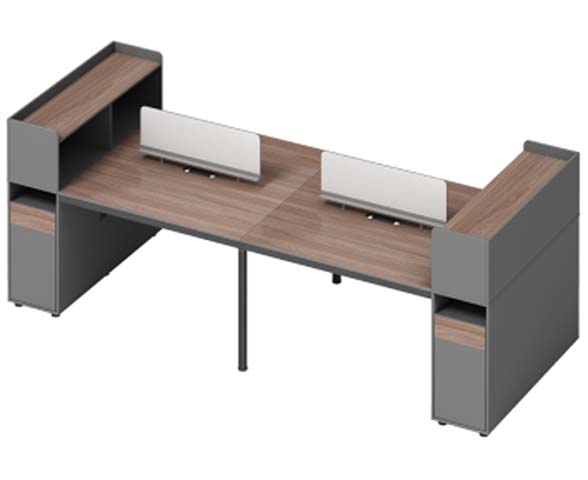

This two-person face-to-face workstation is a compact benching solution designed for users who need distinct work zones within a shared linear layout. Model WS-2P-ENDCAB-3200 is offered as an unbranded office workstation. Two occupants sit on opposite sides of the shared work surface, while low divider screens mounted along the center reduce direct visual distraction without fully enclosing either position. The workstation has a structured, balanced appearance: wood-grain laminate tops contrast with graphite-gray panel cabinets, a round powder-coated steel center post, and light-gray divider screens with slim gray lower rails. Storage is integrated at both outer ends, where each pedestal combines a floor-standing cabinet, lower drawer-front area, and upper open shelf. These end cabinets visually frame the workstations and keep files or personal items close at hand. Back and modesty panels, together with exposed vertical support sides, give the layout a finished panel-based look. Construction combines panel furniture and metal support. The work surface uses a 25 mm wood-grain high-pressure laminate panel with a sealed impact-resistant edge, and the stated finished top thickness is 50 mm. Cabinet bodies are built from 18 mm graphite-gray melamine-faced particleboard, with 18 mm gray laminated back and modesty panels. The center support is a 50 mm powder-coated steel post with a floor contact foot; the main support section is 80 mm with a 2 mm metal wall. Divider screens are available in fabric or laminate form, attach with mounting clips, and clamp to the work surface. Hardware includes epoxy-coated drawer fronts, adjustable leveling feet, and concealed panel connectors. Practical features support daily office use. Each main seat position provides effective knee clearance of 680 mm in height and 900 mm in width, with a nominal 750 mm chair clearance zone. Cable management is built into the center: an 80 mm cable opening and a cable tray with 120 mm depth help route monitor and power leads, and each work surface includes a 60 mm desk grommet position beneath it. Load ratings include a static distributed top load of 120 kg total, or 60 kg per user, 25 kg per pedestal drawer, and 15 kg per open shelf. Leveling adjustment is 10 mm, and the finished workstation weighs 165 kg. The system is well suited to open-plan office benching for two-person departments, especially where separated work surfaces are needed without a large footprint. It also fits reception and administrative areas: the end pedestals provide document storage, while the low screens preserve visitor-facing visibility. Procurement planning should account for assembly and delivery handling. The supplied packaging information contains differing package-count and carton references, so buyers should confirm the exact packing configuration before ordering. The stated assembly reference is 40 minutes per set, with packaging volume listed as 1 m³ per set. Access routes, lift capacity, and storage for cabinet contents should also be checked, given the system’s weight and end-pedestal configuration.

Two-Person Face-to-Face Workstation with End Storage Pedestals and Divider Screens Specifications
