PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Static desktop load capacity	80 kg per workstation
Workstation net weight	125 kg
Mobile pedestal rolling load	40 kg
Work surface allowable distributed load	160 kg per 1400 x 600 mm module
Divider panel tack or display load	3 kg per panel
Assembly time	90 minutes
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain melamine-faced particleboard with sealed PVC edge banding
Divider screen	Gray fabric-wrapped panel over an engineered-board or acoustical core
Support legs	Matte dark-gray powder-coated steel tube legs with level feet
Pedestal body	Gray laminate side and back panels with wood-grain drawer fronts
Drawer runners	Side-mounted ball-bearing steel slides, 450 mm nominal travel
Hardware	Cam-and-dowel panel connectors with steel mounting plates and 50 mm nylon casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Four work positions are arranged face-to-face in two linked bench-style rows
Privacy separation	Two continuous low screens divide opposing users while retaining open sightlines above 350 mm height
Mobile storage	Each under-desk pedestal rolls on four casters and includes drawers plus an open storage compartment
Storage placement	Pedestals can be positioned under the work surface without blocking the 680 mm knee clearance height

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits four-person team benching where users require individual work surfaces but shared collaboration access
Project workstation area	Can be grouped in rows for call centers, administration, or procurement teams using repeatable 2800 mm modules

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-WAL-GRY-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-WAL-GRY-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-WAL-GRY-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

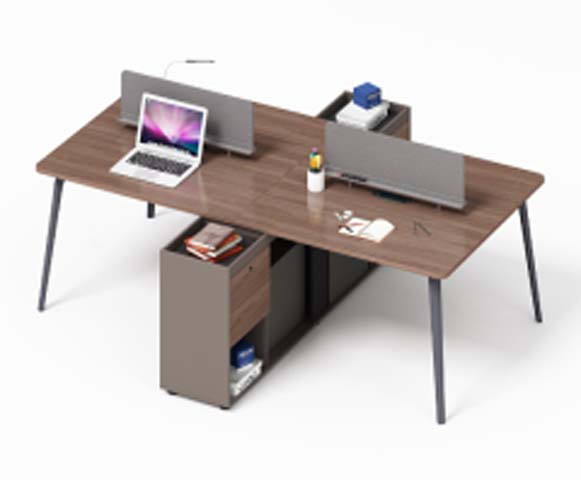

The Four-Person Panel-Based Workstation with Low Dividers and Mobile Pedestals is a modern bench-style office system designed to balance individual workspace, visual separation, and team accessibility. Four work positions are arranged face-to-face in two linked rows, with two continuous low divider screens running between opposing users. The screens define personal work zones while keeping sightlines open above the panel height, supporting both focused tasks and easy collaboration in shared environments. Its visual character combines wood-grain laminate work surfaces with gray fabric-covered divider panels and matte dark-gray powder-coated steel legs, giving the workstation a neutral, contemporary appearance suitable for standard commercial interiors. Each position benefits from a structured layout with under-desk mobile storage, while the pedestal forms use gray laminate side and back panels with coordinated wood-grain drawer fronts. Construction is based on durable panel and steel components. The work surface uses wood-grain melamine-faced particleboard with sealed PVC edge banding and a finished top thickness of 50 mm. Divider panels are fabric-wrapped over an engineered-board or acoustical core, and support is provided by steel tube legs with level feet. Cam-and-dowel panel connectors, steel mounting plates, and a defined leg section with a metal wall contribute to a stable furniture system intended for routine office use. Practical functions are integrated into the layout. Cable openings with an accompanying tray help manage desktop cabling, while each mobile pedestal rolls on four nylon casters and includes drawers plus an open storage compartment. The pedestals can be placed beneath the work surface without blocking the stated knee clearance height, helping maintain legroom and a clean floor area. Drawers operate on side-mounted ball-bearing steel slides. Rated capacities include a static desktop load of 80 kg per workstation, an allowable distributed work-surface load of 160 kg per module, a pedestal rolling load of 40 kg, and a divider tack or display load of 3 kg per panel. This configuration is well suited to open-plan offices, four-person team benching, project areas, call centers, administration floors, and procurement or operational teams that require repeatable workspace modules. It works where users need separate surfaces and storage but still share a collaborative setting. For procurement, planners should confirm site access, floor protection, assembly coordination, and cable requirements before delivery. The product is unbranded, sold as a four-user set, and supplied in multiple cartons; logistics details should be checked against the current quotation. Buyers should also review pedestal placement, chair compatibility, divider loading needs, and whether the wood-and-gray finish aligns with the intended interior scheme.

Four-Person Panel-Based Workstation with Low Dividers and Mobile Pedestals Specifications
