PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1200 × 1100 mm
Work surface height	750 mm
Per-user worktop length	1200 mm
Worktop depth	600 mm
Knee clearance height under worktop	650 mm
Knee clearance width per seat	1100 mm
Upper divider shelving height	350 mm
Worktop panel thickness	25 mm
Edge banding thickness	3 mm
Lower storage bay inner width (CPU/file)	300 mm
Angled steel leg cross-section	50 x 50 mm
Cable grommet diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	120 kg
Drawer slide dynamic load rating	45 kg
Drawer slide cycle life	50000 cycles
Cabinet door hinge cycle life	80000 cycles
Recommended maximum user weight per seat	150 kg
Net weight of complete workstation	135 kg
Standard commercial warranty	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm melamine-faced MDF with matte dark wood finish
Storage and divider panels	18mm melamine-faced particleboard with matte dark grey finish
Support legs	Powder-coated steel angled cantilever frame
Edge trim	3mm high-impact PVC edge banding
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Cabinet hinges	Cold-rolled steel concealed soft-close hinges
Cabinet locks	Zinc alloy keyed cam locks
Adjustable feet	Nylon base with steel threaded stem
Finish abrasion resistance	Class 2 melamine laminate
Shelf construction	18mm melamine-faced particleboard open grid shelving
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating capacity	2 side-by-side users
Upper open shelving	Integrated rear divider shelves for books, files and desk accessories
Lower storage configuration	1 lockable drawer, 1 closed cabinet door, 2 open CPU bays per two-person unit
CPU bay access	Pull-out open bays with vented front panels for tower computer storage
Cable management	Rear panel cutouts and under-desk cable tray for power/data routing
Leveling adjustment	Threaded adjustable feet at cabinet base compensate for uneven floors
Modular connectivity	Pre-drilled joining points allow connection to additional workstation units
Lockable storage	Keyed lock secures upper drawer for personal document security
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office work areas	Suits 2-person teams in corporate open office layouts
Startup and co-working spaces	Modern dark two-tone finish fits contemporary collaborative offices
Administrative and staff work zones	Supports daily computer-based task work with CPU and file storage
Small office private team rooms	Fits compact multi-user rooms without separate storage furniture
Recommended pairing	Pair with two standard 5-star base ergonomic task chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables – Dimensions and safety requirements
EN 527-2:2016	Office work tables – Mechanical safety requirements
EN 13722:2004	Office furniture – Storage units – Safety and strength requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products – Safety and performance standard
ANSI/BIFMA X5.9-2019	Storage Units – Safety and performance standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2017	Performance requirements for office desks and tables
GB 18584-2001	Formaldehyde emission limits for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2017: Performance requirements for office desks and tables;
3. GB 18584-2001: Formaldehyde emission limits for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-LIN-2412

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-LIN-2412

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-LIN-2412Open Export Tool

Quick Actions

Post an RFQ

Product Description

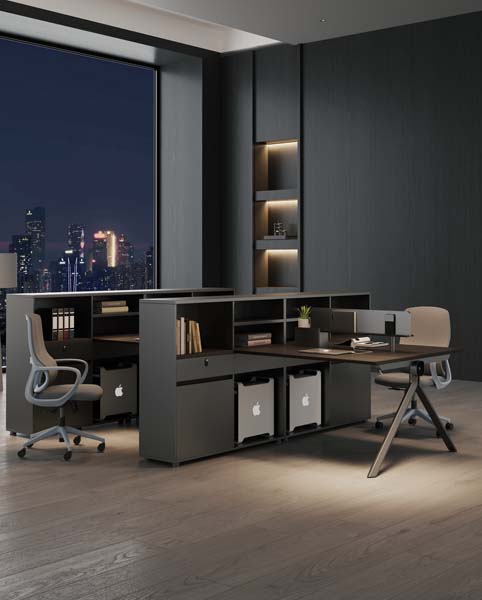

The WS-2P-LIN-2412 unbranded two-person linear office workstation desk delivers a streamlined, functional work surface solution built for modern commercial environments, with a polished two-tone aesthetic that balances visual separation and collaborative access. Its linear layout splits a single continuous worktop into two equal 1200mm per-user work zones, separated by a low 350mm tall integrated rear divider shelf unit that creates subtle personal space without blocking cross-desk interaction. The matte dark wood work surface pairs with matte dark grey storage and divider panels, supported by angled powder-coated steel cantilever legs that lend a light, open visual profile while keeping floor space clear of obstructive support structures. All panel edges are finished with 3mm high-impact PVC edge banding to resist daily wear from regular office use. Constructed with durable, commercial-grade materials, the workstation features a 25mm thick melamine-faced MDF work surface rated for 120kg of static load, with Class 2 abrasion-resistant laminate to stand up to frequent contact with office equipment and supplies. Storage and divider panels use 18mm melamine-faced particleboard, paired with cold-rolled steel ball-bearing full-extension drawer slides rated for 45kg dynamic load and 50,000 open-close cycles, plus cold-rolled steel concealed soft-close hinges tested to 80,000 cycles. Angled cantilever steel legs connect to cabinet bases fitted with nylon adjustable feet with steel threaded stems, and zinc alloy keyed cam locks secure private storage compartments. The complete unit weighs 135kg, with a fixed 750mm work surface height, 650mm under-desk knee clearance, and 1100mm knee clearance width per seat to support comfortable positioning for users up to 150kg per seat. Practical integrated features eliminate the need for separate add-on furniture for most daily office tasks. The upper open divider shelving holds books, reference files, and frequently used desk accessories within easy reach of both users. The lower storage configuration includes one lockable drawer, one closed cabinet door, and two pull-out open CPU bays with vented front panels for tower computer storage, shared across the two-person unit. Integrated cable management with rear panel cutouts and an under-desk cable tray keeps power and data cords organized and out of sight, while pre-drilled joining points enable modular connection to additional matching workstation units for scaled team layouts. Threaded adjustable feet at the cabinet base compensate for uneven floors to keep the work surface stable and level. This workstation is well suited for open-plan corporate office areas supporting two-person teams, contemporary startup and co-working spaces, administrative and staff work zones focused on daily computer-based tasks, and small private team rooms where space is too limited for separate desks and storage furniture. It is designed to pair with two standard 5-star base ergonomic task chairs for complete setup. For procurement, note that each unit ships with a standard 3-year commercial warranty, packaged across two cartons with a total packaged gross weight of 180kg and 1m³ packaging volume. Assembly takes 40 minutes per set, and the fixed-height design requires no post-install height adjustment, though the modular connection points allow for easy expansion as team sizes grow.

Two-Person Linear Office Workstation Desk with Integrated Storage and Divider Shelving Specifications
