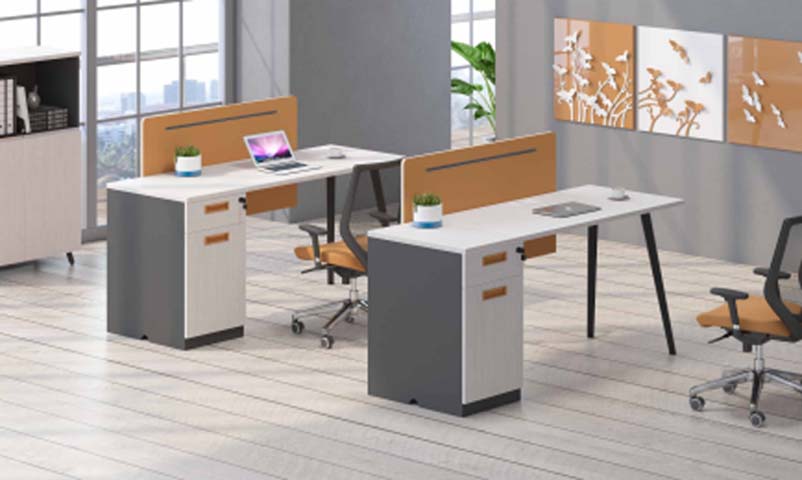

2-Person Side-by-Side Modular Office Workstation with Fixed Drawer Pedestals and Upholstered Privacy Dividers (model WS-2P-LP-ORGD) is listed under Open Workstation, with overall dimensions of 2800 × 600 × 1120 mm and main material of Particle‑board (PB). Load capacity: 90 kg. Certifications: Modern,style,fixed,pedestal,storage,fabric,modesty,divider,angled,steel,leg,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster dimensions | 2800 x 600 x 1120 mm | |
|---|---|---|
| Single work surface dimensions per user | 1400 x 600 x 750 mm | |
| Worktop thickness | 25 mm | |
| PVC edge band thickness | 1 mm | |
| Fixed drawer pedestal dimensions per desk | 400 x 540 x 690 mm | |
| Seated knee clearance height | 690 mm | |
| Seated knee clearance width | 1000 mm | |
| Rear privacy divider dimensions per desk | 1400 x 370 x 22 mm | |
| Outer desk leg tubing section | 40 x 20 mm | |
| Steel leg wall thickness | 1.2 mm | |
| Drawer front dimensions (upper shallow) | 360 x 120 mm | |
| Drawer front dimensions (lower filing) | 360 x 260 mm | |
| Cable slot width in divider | 800 mm | |
| Kick plate height at pedestal base | 40 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load capacity per work surface | 90 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Drawer lock cycle rating | 10000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Net weight per single desk unit | 63 kg | |
| Recommended user weight capacity | 136 kg | |
| Recommended warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thermally fused laminate particleboard, 1mm PVC edge banding | |
|---|---|---|
| Storage pedestal body | 18mm grey and white melamine particleboard, 6mm MDF back panel | |
| Desk support legs | 1.2mm thick powder-coated black steel, angled splayed design | |
| Privacy divider panel | 22mm composite core, wrapped in tan/orange polyester fabric | |
| Drawer hardware | Full-extension 3-section ball bearing steel slides, keyed central lock | |
| Pedestal base kick plate | 0.8mm thick black powder-coated steel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer storage | Two lockable drawers per pedestal, upper shallow stationery, lower filing | |
|---|---|---|
| Cable management | Horizontal cable pass-through slot in rear privacy divider, under-desk routing | |
| Privacy screening | Desk-mounted fabric divider blocks cross-desk line of sight for open offices | |
| Modular connection | Adjacent desks can be bolted together to form 2-person or larger clusters |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Side-by-side cluster for 2 employees, provides private work zones with shared aisle access | |
|---|---|---|
| Small startup team workspaces | Compact footprint fits small offices, integrated storage reduces need for separate cabinets |
EU Market Access Requirements* EN Standards
| EN 527-2:2016 | Office worktables safety and strength requirements, applicable to work surface and frame |
|---|
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable to load and durability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate cabinetry and worktops | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks, applicable to structural load and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to particleboard/MDF components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate cabinetry and worktops; 2. GB/T 3327-2016: Performance requirements for office desks, applicable to structural load and stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particleboard/MDF components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
