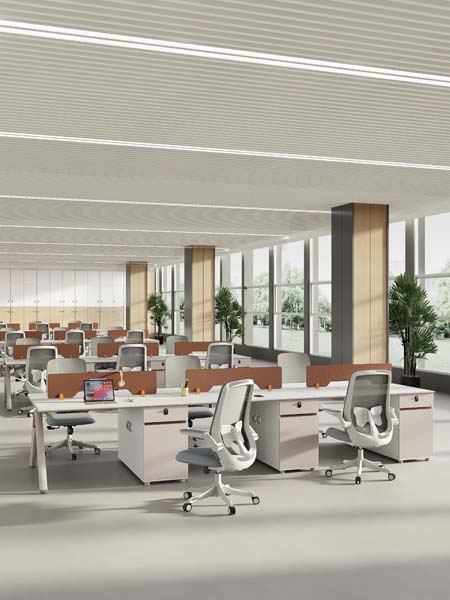

Product supplier4-Person Back-to-Back Modular Open Plan Office Workstation Cluster, E1-grade particle board with light gray melamine laminate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2800 × 1100 mm | |
|---|---|---|
| Overall 4-person cluster dimensions | 2400 x 2800 x 1100 mm | |
| Desktop height from floor | 762 mm | |
| Individual single workstation surface | 1200 x 610 mm | |
| Privacy divider height above desktop | 350 mm | |
| Worktop thickness | 25.4 mm | |
| PVC edge banding thickness | 2 mm | |
| Seated knee clearance height under desk | 673 mm | |
| Under-desk mobile pedestal dimensions | 400 x 498 x 654 mm | |
| Cable grommet diameter | 60 mm | |
| Steel support leg cross-section | 50 x 50 mm | |
| Pedestal drawer internal file compartment height | 241 mm | |
| Caster diameter on mobile pedestal | 51 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight for 4-person cluster | 126 kg | |
|---|---|---|
| Worktop static distributed load capacity | 150 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Recommended number of users per cluster | 4 | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Commercial warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and finish | E1-grade particle board with light gray melamine laminate | |
|---|---|---|
| Edge banding | Impact-resistant 2mm PVC edge trim | |
| Support frame and legs | Powder-coated light gray steel | |
| Desktop privacy divider | Warm brown MDF panel with matte finish | |
| Under-desk pedestal body | Light gray melamine-faced particle board with lock core | |
| Pedestal casters | Black nylon swivel casters with hard tread | |
| Modular connecting hardware | Zinc-plated steel bracket and fastener set | |
| Cable grommet | ABS plastic desk cable port cover | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular cluster expandability | Bracket-connected frames support linear/back-to-back expansion for larger open offices | |
|---|---|---|
| Pedestal storage security | Keyed lock secures both box and file drawer compartments per workstation | |
| Cable management | Desktop grommets route power/data cables from surface to under-desk space | |
| Mobile pedestal repositioning | 360-degree swivel casters allow pedestals to move under or adjacent to desks | |
| Privacy divider function | Low divider provides visual separation between opposite-facing seated users | |
| Knock-down assembly | Flat-packed components assemble with standard hardware for on-site installation | |
| File drawer compatibility | Lower pedestal drawer supports standard hanging file folders for document storage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Large open plan office spaces | Suits dense staff seating layouts with scalable repeating row configurations | |
|---|---|---|
| Corporate co-working and shared workspaces | Provides individual work boundaries with low dividers for collaboration | |
| Call center and back-office operations | Durable surfaces and integrated storage support high-volume daily use | |
| Mid-to-large enterprise staff floors | Neutral light gray and brown palette complements modern office interior design | |
| Startup and agile team work areas | Modular design allows reconfiguration as team sizes change |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to overall desk structure | |
|---|---|---|
| EN 527-2:2016 | Office worktables mechanical safety test methods, applicable to load and stability testing |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to worktop load and structural durability |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and pedestal components | |
|---|---|---|
| GB/T 3327-2018 | Technical requirements for metal furniture, applicable to steel frame and leg components | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MDF/particle board components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal components; 2. GB/T 3327-2018: Technical requirements for metal furniture, applicable to steel frame and leg components; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF/particle board components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
