PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1200 × 750 mm
Overall workstation dimensions	2400 x 1200 x 750 mm
Individual work seat surface size	1200 x 600 mm
Desktop thickness	25 mm
Under-desk knee clearance height	680 mm
Low workstation divider height	305 mm
Divider panel thickness	25 mm
PVC edge banding thickness	2 mm
Steel leg tube section	60 x 30 mm
Steel frame wall thickness	1.2 mm
Support beam section	50 x 25 mm
Cable grommet diameter	60 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Foot glide height adjustment	10 mm
Cable tray width under desk	100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation net weight	260 kg
Desktop static uniform load capacity	120 kg
Drawer slide durability cycles	50000
Surface abrasion resistance	2000 cycles
Recommended number of users	4 people
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface	E1-grade melamine-faced particleboard
Edge trim	2mm thick PVC edge banding
Frame and legs	Powder-coated matte black steel
Divider panels	Melamine-faced particleboard core
Mobile pedestal cabinet body	Melamine-faced particleboard
Mobile pedestal casters	Hard nylon swivel casters
Cable management components	ABS plastic grommets and steel cable tray
Fasteners and hardware	Zinc-plated steel hardware
Adjustable foot glides	Nylon base with steel threaded stem
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dedicated individual work zones	Four 1200mm wide separated positions
Cable routing system	Top grommets connect to under-desk tray
Mobile under-desk storage	Four rolling 3-drawer pedestals
Floor leveling adjustment	10mm adjustable glides on each leg
Knock-down assembly	Flat-pack CKD construction
Modular expansion capability	Connectable to matching workstation clusters
Pedestal mobility	Lockable? No, free-rolling casters
Surface stain resistance	Melamine laminate finish
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff areas	Suitable for 4-person team work zones
Startup and co-working spaces	Flexible modular layout for growing teams
Corporate administrative departments	High-capacity seating with integrated storage
Small business back-office spaces	Cost-effective cluster configuration
Temporary project work areas	Quick to assemble and reposition
Call center and shared work zones	Standardized work positions for shift-based use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture desk safety standard	EN 527:2011
Office furniture strength durability	EN 527:2002+A1:2019
Formaldehyde emission for wood panels	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk performance standard	ANSI/BIFMA X2021
Mobile storage cabinet standard	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office desk structural standard	GB/T 3326
Wood-based panel formaldehyde limit	GB 18580
Office furniture durability test	GB/T 10357.1

Standardized tender description text

This product must meet the following technical requirements:
1. Office desk structural standard: GB/T 3326;
2. Wood-based panel formaldehyde limit: GB 18580;
3. Office furniture durability test: GB/T 10357.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-LW-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-LW-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-LW-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The WS-4P-LW-BLK-01 unbranded 4-person open office workstation cluster delivers a streamlined modern aesthetic tailored for collaborative open-plan environments, finished in light wood tones with a matte black structural frame. Its symmetrical layout divides the 2400 x 1200 x 750 mm overall footprint into four equal individual work zones, each with a 1200 x 600 mm work surface separated by 305 mm tall low dividers that preserve sightlines for casual team interaction while defining clear personal work boundaries. The desk sits at a standard working height with 680 mm of under-desk knee clearance for comfortable seating.
Constructed for consistent daily commercial use, the workstation features 25 mm thick E1-grade melamine-faced particleboard work surfaces and divider cores, edged with 2 mm thick PVC edge banding to resist impact damage at contact points. Its 60 x 30 mm steel tube legs are finished in scratch-resistant powder-coated matte black, fitted with nylon adjustable foot glides with steel threaded stems that offer 10 mm of leveling adjustment to accommodate uneven flooring. Zinc-plated steel hardware secures all connections, while four steel-reinforced 3-drawer mobile pedestals sit beneath each work position, fitted with hard nylon free-rolling swivel casters for easy repositioning. Each drawer pair supports 45 kg of load and is rated for 50000 open-close cycles, while the desktop supports 150 kg of uniformly distributed static load, with a surface abrasion resistance rating of 2000 cycles. Integrated ABS plastic cable grommets on each work surface connect to an under-desk steel cable tray to organize power and data cords out of sight.
Functional design elements support flexible workspace configuration: the knock-down flat-pack construction allows 40-minute per-set assembly, and the modular frame connects seamlessly to matching workstation clusters to scale seating as team sizes change. Each unit ships across cartons with a total packaged volume of 1 m³ for streamlined transport and storage.
This workstation cluster is ideally suited for open-plan office staff zones, startup and co-working spaces, corporate administrative departments, small business back offices, temporary project work areas, and call center shared zones supporting shift-based work. When procuring, note that mobile pedestals use non-lockable free-rolling casters, plan storage for flat-pack components prior to assembly, and account for modular connection requirements when expanding existing workspace layouts to ensure seamless alignment between connected clusters.

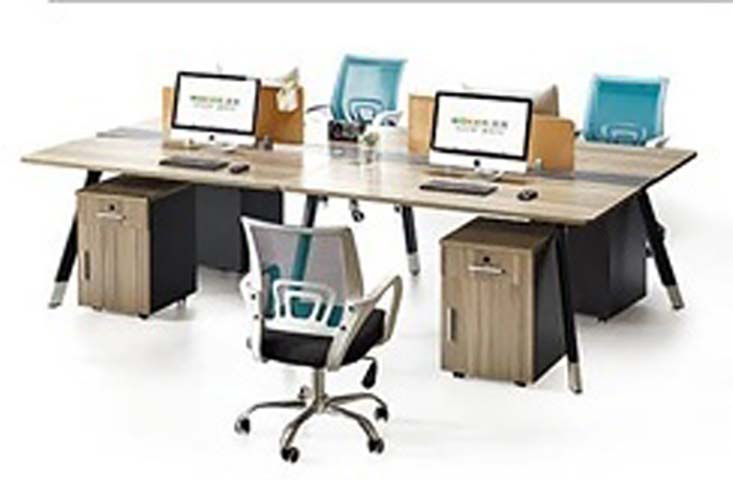

4-Person Light Wood Open Office Workstation Cluster with Low Dividers and Mobile Pedestals Specifications
