PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed desktop load	100 kg
Pedestal file-drawer load	25 kg
Fixed pedestal stability load	80 kg
Metal leg static support	60 kg per leg
Product net weight	92 kg
Drawer operation cycles	50,000 cycles
Work surface impact resistance	30 N drop test acceptance target
Color options	2 finish groups
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-based panel with walnut wood-grain laminate or melamine facing and sealed edges
Storage pedestal panels	18 mm wood-based panels with walnut-look exterior and charcoal upper drawer front
Center privacy panel	Padded fabric-covered panel over a rigid board core, with medium-gray textile face
Divider support rail	Charcoal powder-coated steel or aluminum rectangular rail with end brackets
Exposed desk legs	Four round charcoal powder-coated metal tube legs with splayed outer geometry
Drawer and cabinet hardware	Ball-bearing drawer slides, recessed pull slot, and lockable upper drawer area

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	Center-mounted low screen creates two facing 1200 mm work zones and reduces direct sight lines
Storage arrangement	Fixed left-end pedestal provides one upper shallow drawer and one lower file-storage compartment
Cable routing provision	Rear vertical slot in the under-desk panel provides a cable pass-through toward the back service zone
Floor support system	Cabinet pedestal and four splayed metal legs share the load, removing the need for wall fixing

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Flat-pack carton dimensions	2470 x 650 x 180 mm for main panels
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Project or administration workstation	Recommended for daily laptop, document, and filing tasks where two users share one compact 2400 mm bench without requiring a wall-mounted credenza

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2400-PEDESTAL-SCREEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2400-PEDESTAL-SCREEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2400-PEDESTAL-SCREENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

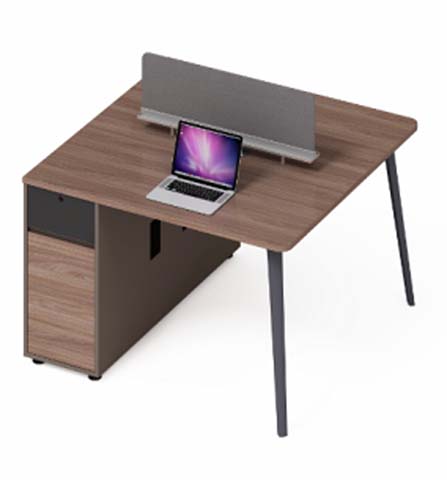

The Two-Person Workstation Desk with Center Divider Screen and Fixed Storage Pedestal is an unbranded office workstation designed for two users sharing one compact 2400 mm bench. Its layout places a low center screen between two facing 1200 mm work zones, reducing direct sight lines while keeping the overall form open and coordinated. The desk has a walnut-look wood-based worktop and pedestal, contrasted by charcoal metal legs and a charcoal divider rail. The medium-gray padded fabric privacy panel introduces a softer visual element and gives each user a clearly defined place within the shared surface. Construction combines panel and metal components. The 25 mm wood-based worktop features walnut wood-grain laminate or melamine facing and sealed edges, producing a finished top thickness of 50 mm. Storage pedestal panels are 18 mm wood-based board with a walnut-look exterior and a charcoal upper drawer front. Four round charcoal powder-coated metal tube legs use a splayed outer geometry, with an 80 mm main section and 2 mm metal wall. The center divider is a fabric-covered padded panel over a rigid board core, supported by a charcoal powder-coated steel or aluminum rectangular rail with end brackets. Practical functions are built around shared daily office work. The fixed left-end pedestal includes an upper shallow drawer and a lower file-storage compartment, with ball-bearing drawer slides, a recessed pull slot, and a lockable upper drawer area. Each main seat has 680 mm high and 900 mm wide knee clearance. Cable management is supported by an 80 mm diameter cable opening, a cable tray with 120 mm depth, and a rear vertical slot in the under-desk panel that routes cables toward the back service zone. Load capacity includes 100 kg distributed across the desktop, 25 kg in the pedestal file drawer, 80 kg fixed pedestal stability load, and 60 kg static support per metal leg. Drawer operation is rated for 50,000 cycles. The cabinet pedestal and four splayed legs share floor support, so wall fixing is not required. This makes the desk suitable for project and administration settings where two people need space for laptops, documents, and filing without adding a wall-mounted credenza. Procurement planning should account for the model WS-2P-2400-PEDESTAL-SCREEN, a net weight of 92 kg, and assembly requiring a reference time of 40 minutes per set. Packaging details include a main top carton measuring 2500 by 1050 by 350 mm, with the return or pedestal packed separately; reference logistics list four cartons, 180 kg packaged gross weight, and 1 cubic meter per set. A separate flat-pack reference records main panels at 2470 by 650 by 180 mm across two cartons, so buyers should confirm the supplied package configuration before delivery and installation.

Two-Person Workstation Desk with Center Divider Screen and Fixed Storage Pedestal Specifications
