PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	80 kg
Per-person desktop load	40 kg
Pedestal drawer static load	15 kg per drawer
Leveling adjustment capacity	15 mm
Seating capacity	2 users
Product net weight	62 kg
Suggested user weight at workstation	120 kg per seat
Drawer slide cycle target	50,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain thermofused laminate board with impact-resistant sealed edge
Side support panels	Charcoal melamine-faced particleboard panels forming panel legs and modesty screens
Pedestal fronts	Light oak melamine drawer fronts with charcoal frame and top drawer face
Central divider	Fabric-wrapped acoustical panel over composite board with chamfered corners
Cable hardware	Silver powder-coated steel divider rail with black plastic cable grommet
Leveling feet	Black nylon height-adjustable glides on steel threaded inserts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-seat privacy layout	Two users work face-to-face across a 350 mm-high central fabric divider that limits direct sightlines while preserving compact footprint
Cable routing	Desktop cables pass through the 60 mm grommet into the under-desk cavity and can be guided by the central metal rail
Integrated personal storage	Left pedestal provides two lockable-appearing drawer fronts for stationery and file storage within the workstation footprint
Floor leveling	Threaded glides at exposed panel bases compensate for uneven carpet or hard floors up to 15 mm

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	3 packages
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan offices	Suitable for dense two-person task zones where the central divider gives visual separation without adding independent screens
Administrative and clerical work areas	Integrated drawer pedestal supports daily paperwork and personal storage while retaining a clear 620 mm knee bay

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements applicable to fixed-height work surfaces
EN 527-2:2011	Office work tables mechanical safety, stability and durability test methods for strength and fatigue checks
EN 15372:2016	Durability and strength requirements for storage furniture, applicable to the integrated drawer pedestal
EN 13986:2004	Wood-based panels for building and furniture uses, applicable to panel substrate declaration and performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk and table products standard for safety, strength, durability and stability
ANSI/BIFMA X5.9-2019	Storage, shelving and filing products standard applicable to drawer pedestal load and cycling tests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to laminate panel dimensions, edge bonding and workmanship
GB/T 3325-2017	Metal furniture general technical requirements, applicable to drawer slides, locks, rail hardware and stability
GB 18580-2017	Formaldehyde emission limit for wood-based panels used in the desktop, panels and pedestal substrate
GB/T 10357.5-2011	Furniture surface mechanical test for coating resistance, applicable to laminate desktop durability checks

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to laminate panel dimensions, edge bonding and workmanship;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to drawer slides, locks, rail hardware and stability;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels used in the desktop, panels and pedestal substrate;
4. GB/T 10357.5-2011: Furniture surface mechanical test for coating resistance, applicable to laminate desktop durability checks;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1200x1200-PED-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1200x1200-PED-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1200x1200-PED-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

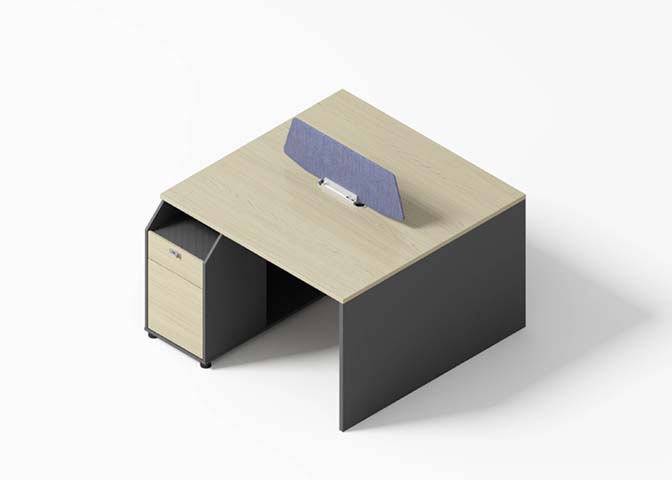

The Two-Person Panel-Leg Workstation with Central Divider and Left Pedestal is a compact office workstation designed for face-to-face work with a degree of visual privacy. Its layout places two users across from one another, separated by a low, fabric-wrapped central acoustical panel with chamfered corners. The divider limits direct sightlines while keeping the overall footprint efficient, making it suitable for open-plan task areas where separate screens would otherwise consume more space. The pedestal is integrated on the left side, anchoring the composition and keeping storage within easy reach without extending beyond the workstation. The worktop uses wood-grain thermofused laminate with an impact-resistant sealed edge, combining a restrained decorative surface with practical edge protection. Charcoal melamine-faced particleboard forms the side support panels, panel legs, and modesty screens, giving the workstation a structured, panel-based appearance. Light oak melamine drawer fronts on the pedestal provide contrast against the charcoal frame and top drawer face. A silver powder-coated steel divider rail, black plastic cable grommet, metal hardware, and black nylon leveling glides complete the construction details. Functionally, the workstation supports two users and provides organized cable routing from the desktop through a grommet into the under-desk cavity, where the central metal rail can help guide cabling. The left pedestal includes two lockable-appearing drawer fronts suited to stationery, paperwork, and personal items. Threaded glides at the exposed panel bases allow adjustment for uneven carpet or hard flooring. Published capacity information includes a distributed desktop static load of 80 kg, a per-person desktop load of 40 kg, and a pedestal drawer static load of 15 kg per drawer. Each seat has a suggested user weight of 120 kg. This model is well suited to commercial interiors such as open-plan offices, administrative floors, clerical departments, and other dense task environments that need two work positions in one coordinated unit. It can also fit residential workrooms or study spaces where two users share a room but prefer a defined boundary. Procurement planning should account for assembly, access, and placement rather than treating the workstation as a single ready-to-use item. Packaging information varies in the supplied records, including descriptions of multiple packages and separate packing for the main top and return or pedestal. Buyers should confirm carton count, packaged weight, and freight arrangements before ordering. Specifiers should also review the provided knee-clearance dimensions, storage orientation, cable-opening position, divider height, and floor adjustment range against the intended seating and office layout. The gray wood-grain and charcoal appearance should be coordinated with surrounding panels, seating, and storage furniture.

Two-Person Panel-Leg Workstation with Central Divider and Left Pedestal Specifications
