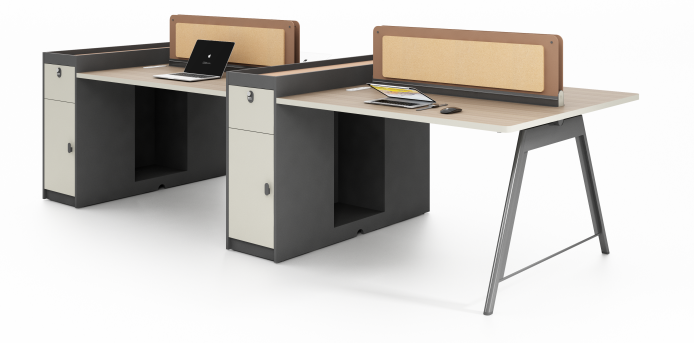

2-Person Face-to-Face Modular Office Workstation Desk with Integrated Lockable Storage Pedestals and Cork Privacy Dividers (model WS-FF2-1200-CKD) is listed under Open Workstation. Dimensions: 1200 × 1200 × 750 mm. Materials: Light wood-grain melamine-faced E1-grade particleboard core, 2mm PVC edge banding. Load capacity: 100kg evenly distributed. Product Features: modular,commercial,desk,lockable,integrated,storage,desktop,privacy,divider,mixed-tone,light,wood/grey/cream,panel,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | MINGHUI | Model | WS-FF2-1200-CKD |
| Overall dimensions (W × D × H) | 1200 × 1200 × 750 mm | Overall 2-person cluster footprint | 1200mm W × 1200mm D × 750mm H (worktop height) |
| Per-user worktop size | 1200mm W × 600mm D | Seated knee clearance opening | 600mm W × 520mm D × 650mm H |
| Worktop panel thickness | 25mm | Edge banding thickness | 2mm |
| Desktop-mounted privacy divider dimensions | 1100mm W × 300mm H × 20mm T | Integrated storage pedestal dimensions | 400mm W × 600mm D × 720mm H |
| Top pedestal drawer internal dimensions | 340mm W × 520mm D × 120mm H | Lower pedestal cabinet door internal dimensions | 340mm W × 520mm D × 520mm H |
| Under-desk open central cubby dimensions | 400mm W × 300mm D × 400mm H | A-frame steel leg section size | 50mm × 20mm rectangular steel tube, 1.5mm wall thickness |
| Cable grommet diameter | 60mm | Screen frame thickness | 12mm |
| Finished Top Thickness | Approx. 30-50 mm | Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
| Total product net weight range per 2-person cluster | 68–78kg | Static vertical load capacity per worktop | 100kg evenly distributed |
| Drawer slide cycle rating | 50,000 open/close cycles | Door hinge cycle rating | 80,000 open/close cycles |
| Worktop surface wear resistance | ≥2000 abrasion cycles (Taber test) | Seated user capacity per cluster | 2 users (expandable to 4 users with paired modules) |
| Laminate surface heat resistance | Up to 120°C short-term contact | Top Static Load Reference | Approx. 80-150 kg uniformly distributed |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | Hinge Opening Life | Acceptance target 40,000-80,000 cycles |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
| Worktop surface | Light wood-grain melamine-faced E1-grade particleboard core, 2mm PVC edge banding | Pedestal cabinet panels | Two-tone melamine-faced MDF/particleboard: dark grey side panels, cream front drawer/door panels, matching 2mm PVC edge banding |
| Outer support legs | Powder-coated dark grey steel rectangular tube A-frame, with horizontal cross-brace for stability | Privacy divider tack surface | Natural cork bulletin board panel |
| Privacy divider frame | Brown laminate-wrapped MDF border, secured with visible screw fasteners to mounting brackets | Drawer slides | Cold-rolled steel telescopic ball-bearing slides, soft-close/mute operation optional |
| Lock mechanism | Zinc alloy keyed cam lock, one key per pedestal securing both drawer and cabinet door | Cabinet door hinges | Cold-rolled steel concealed 110° opening hinges |
| Pedestal base plinth | 18mm thick melamine panel, 20mm ground clearance for floor leveling | Desk cable grommets | ABS plastic wire port caps, located at rear of each work surface adjacent to divider |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | Edge Band Thickness | Approx. 1.0-2.0 mm |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors | Modular cluster expansion | 2-person base unit connects side-by-side with identical modules to form 4/6/8-person open-plan workstation runs |
| Lockable integrated storage | Each pedestal includes one keyed lock securing the upper stationery drawer and lower hinged cabinet door, preventing unauthorized access to personal work items | Desktop privacy divider | Low-profile edge-mounted cork divider creates visual separation between opposite work positions while allowing over-screen communication, provides tackable surface for posting notes, memos and documents |
| Shared under-desk open cubby | Central open recess between opposing knee holes provides shared quick-access storage for bags, files or shared office supplies without opening locked cabinet doors | Cable management access | Rear-positioned cable grommets route power and data cords from desktop devices down to under-desk floor outlets, reducing cord clutter on work surface |
| Stable A-frame leg support | Angled outer steel leg with cross-brace eliminates wobble on the free end of each worktop, removing need for an additional front leg that would obstruct seated leg movement | Surface stain and moisture resistance | Melamine laminate worktop resists common office spills (coffee, water, ink) and wipes clean with standard office cleaning products, no special surface treatment required |
| Leveling adjustment | Base plinths on storage pedestals include integrated adjustable glides to compensate for uneven office flooring, eliminating desk wobble without shims | Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles | Packaging carton count per 2-person cluster | 3 cartons |
| Worktop and panel carton dimensions | 1400mm L × 750mm W × 110mm H | Leg and hardware carton dimensions | 850mm L × 250mm W × 150mm H |
| Privacy divider carton dimensions | 1300mm L × 350mm W × 50mm H | Total packaged gross weight per 2-person cluster | 75–85kg |
| Total packaged volume per 2-person cluster | 0.18–0.22 CBM | Assembly time per 2-person cluster | 45–75 minutes for 2 workers with basic hand tools |
| 40ft HQ container loading quantity (fully assembled knock-down) | 120–140 sets of 2-person clusters | Reference Package Count | 1 set / 1-2 cartons |
| Reference Assembly Time | Approx. 15-40 minutes per set | Open-plan staff office areas | Designed for 2-person seated teams in general office environments, providing separated workspaces with integrated personal storage for regular daily computer, paperwork and document tasks |
| Startup and co-working spaces | Modular design allows quick reconfiguration into larger clusters as team size grows, low-profile dividers balance visual privacy and collaborative visibility between co-workers | Small business administrative offices | All-in-one design removes need for separate filing cabinets or privacy screens, reducing footprint per employee while providing secured personal storage per work position |
| Call center and back-office work areas | Durable easy-clean surfaces and stable construction support 8+ hours of daily seated use, cable management ports keep desktop surfaces clear for headsets, keyboards and monitors | Recommended paired configuration | Pair two 2-person clusters to create a 4-person work island for small departments, matching standard open-plan office layout modules |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 1200 × 750 mm | |
|---|---|---|
| Overall 2-person cluster footprint | 1200mm W × 1200mm D × 750mm H (worktop height) | |
| Per-user worktop size | 1200mm W × 600mm D | |
| Seated knee clearance opening | 600mm W × 520mm D × 650mm H | |
| Worktop panel thickness | 25mm | |
| Edge banding thickness | 2mm | |
| Desktop-mounted privacy divider dimensions | 1100mm W × 300mm H × 20mm T | |
| Integrated storage pedestal dimensions | 400mm W × 600mm D × 720mm H | |
| Top pedestal drawer internal dimensions | 340mm W × 520mm D × 120mm H | |
| Lower pedestal cabinet door internal dimensions | 340mm W × 520mm D × 520mm H | |
| Under-desk open central cubby dimensions | 400mm W × 300mm D × 400mm H | |
| A-frame steel leg section size | 50mm × 20mm rectangular steel tube, 1.5mm wall thickness | |
| Cable grommet diameter | 60mm | |
| Screen frame thickness | 12mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | |
| Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight range per 2-person cluster | 68–78kg | |
|---|---|---|
| Static vertical load capacity per worktop | 100kg evenly distributed | |
| Drawer slide cycle rating | 50,000 open/close cycles | |
| Door hinge cycle rating | 80,000 open/close cycles | |
| Worktop surface wear resistance | ≥2000 abrasion cycles (Taber test) | |
| Seated user capacity per cluster | 2 users (expandable to 4 users with paired modules) | |
| Laminate surface heat resistance | Up to 120°C short-term contact | |
| Top Static Load Reference | Approx. 80-150 kg uniformly distributed | |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | |
| Hinge Opening Life | Acceptance target 40,000-80,000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | Light wood-grain melamine-faced E1-grade particleboard core, 2mm PVC edge banding | |
|---|---|---|
| Pedestal cabinet panels | Two-tone melamine-faced MDF/particleboard: dark grey side panels, cream front drawer/door panels, matching 2mm PVC edge banding | |
| Outer support legs | Powder-coated dark grey steel rectangular tube A-frame, with horizontal cross-brace for stability | |
| Privacy divider tack surface | Natural cork bulletin board panel | |
| Privacy divider frame | Brown laminate-wrapped MDF border, secured with visible screw fasteners to mounting brackets | |
| Drawer slides | Cold-rolled steel telescopic ball-bearing slides, soft-close/mute operation optional | |
| Lock mechanism | Zinc alloy keyed cam lock, one key per pedestal securing both drawer and cabinet door | |
| Cabinet door hinges | Cold-rolled steel concealed 110° opening hinges | |
| Pedestal base plinth | 18mm thick melamine panel, 20mm ground clearance for floor leveling | |
| Desk cable grommets | ABS plastic wire port caps, located at rear of each work surface adjacent to divider | |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | |
| Edge Band Thickness | Approx. 1.0-2.0 mm | |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular cluster expansion | 2-person base unit connects side-by-side with identical modules to form 4/6/8-person open-plan workstation runs | |
|---|---|---|
| Lockable integrated storage | Each pedestal includes one keyed lock securing the upper stationery drawer and lower hinged cabinet door, preventing unauthorized access to personal work items | |
| Desktop privacy divider | Low-profile edge-mounted cork divider creates visual separation between opposite work positions while allowing over-screen communication, provides tackable surface for posting notes, memos and documents | |
| Shared under-desk open cubby | Central open recess between opposing knee holes provides shared quick-access storage for bags, files or shared office supplies without opening locked cabinet doors | |
| Cable management access | Rear-positioned cable grommets route power and data cords from desktop devices down to under-desk floor outlets, reducing cord clutter on work surface | |
| Stable A-frame leg support | Angled outer steel leg with cross-brace eliminates wobble on the free end of each worktop, removing need for an additional front leg that would obstruct seated leg movement | |
| Surface stain and moisture resistance | Melamine laminate worktop resists common office spills (coffee, water, ink) and wipes clean with standard office cleaning products, no special surface treatment required | |
| Leveling adjustment | Base plinths on storage pedestals include integrated adjustable glides to compensate for uneven office flooring, eliminating desk wobble without shims | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging carton count per 2-person cluster | 3 cartons | |
|---|---|---|
| Worktop and panel carton dimensions | 1400mm L × 750mm W × 110mm H | |
| Leg and hardware carton dimensions | 850mm L × 250mm W × 150mm H | |
| Privacy divider carton dimensions | 1300mm L × 350mm W × 50mm H | |
| Total packaged gross weight per 2-person cluster | 75–85kg | |
| Total packaged volume per 2-person cluster | 0.18–0.22 CBM | |
| Assembly time per 2-person cluster | 45–75 minutes for 2 workers with basic hand tools | |
| 40ft HQ container loading quantity (fully assembled knock-down) | 120–140 sets of 2-person clusters | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan staff office areas | Designed for 2-person seated teams in general office environments, providing separated workspaces with integrated personal storage for regular daily computer, paperwork and document tasks | |
|---|---|---|
| Startup and co-working spaces | Modular design allows quick reconfiguration into larger clusters as team size grows, low-profile dividers balance visual privacy and collaborative visibility between co-workers | |
| Small business administrative offices | All-in-one design removes need for separate filing cabinets or privacy screens, reducing footprint per employee while providing secured personal storage per work position | |
| Call center and back-office work areas | Durable easy-clean surfaces and stable construction support 8+ hours of daily seated use, cable management ports keep desktop surfaces clear for headsets, keyboards and monitors | |
| Recommended paired configuration | Pair two 2-person clusters to create a 4-person work island for small departments, matching standard open-plan office layout modules |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applicable for verifying worktop height, knee clearance dimensions and user space alignment with European ergonomic office requirements | |
|---|---|---|
| EN 527-2:2016 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements and test methods | Applicable for verifying structural stability, load capacity and safety of desk components to prevent collapse or user injury | |
| EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | Reference standard for wood-composite panel structural performance and formaldehyde emission limits for panel components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Office Furnishings - Desk Products | Applicable as optional performance reference for worktop load, durability, leg stability and storage component cycle testing for commercial-grade deployment |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable to all wood-composite panel components (worktop, pedestals, divider frames), specifying dimensional tolerance, edge banding adhesion and surface finish quality requirements for procurement acceptance | |
|---|---|---|
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products | Applicable to all particleboard/MDF components, requiring E1 grade formaldehyde emission ≤0.124mg/m³ for indoor office use | |
| GB/T 3327-2016 Office furniture - Desks and tables | Applicable to structural stability, static load and durability testing of work surfaces, legs and storage components for commercial office desk products | |
| GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables | Applicable for verifying worktop vertical load, impact resistance and leg structural stability during supplier quality inspection |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable to all wood-composite panel components (worktop, pedestals, divider frames), specifying dimensional tolerance, edge banding adhesion and surface finish quality requirements for procurement acceptance; 2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products: Applicable to all particleboard/MDF components, requiring E1 grade formaldehyde emission ≤0.124mg/m³ for indoor office use; 3. GB/T 3327-2016 Office furniture - Desks and tables: Applicable to structural stability, static load and durability testing of work surfaces, legs and storage components for commercial office desk products; 4. GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables: Applicable for verifying worktop vertical load, impact resistance and leg structural stability during supplier quality inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
