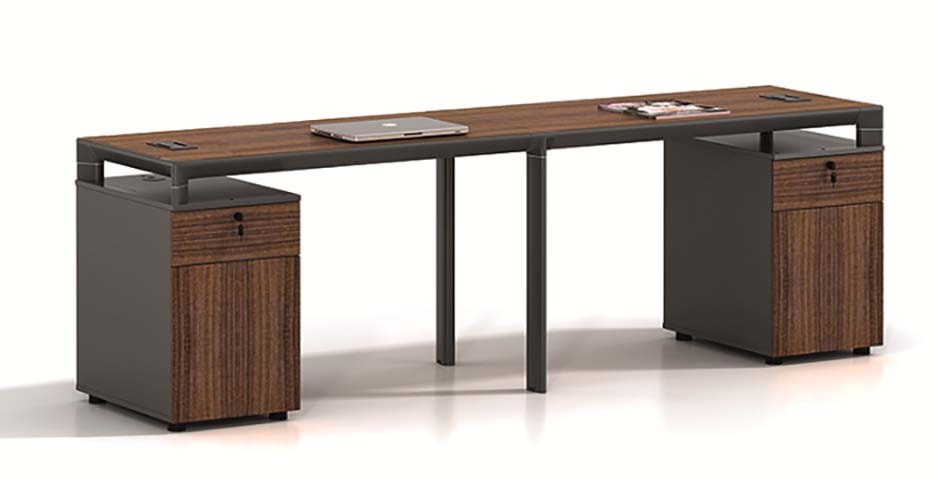

Two-Person Side-by-Side Office Workstation with Integrated Lockable End Pedestals (model WS-2P-2400-WAL-GRY) is listed under Open Workstation, with overall dimensions of 2400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Walnut,wood,grain,finish,dark,metal,frame,lockable,pedestal,storage,cable,management,grommets,two-seat,side-by-side,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2400 x 600 x 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Single end pedestal dimensions | 400 x 600 x 670 mm | |
| Central support leg cross-section | 60 x 30 mm | |
| Per-user work surface width | 1000 mm | |
| Under-desk knee clearance height | 670 mm | |
| Under-desk knee clearance width per user | 900 mm | |
| Cable grommet diameter | 60 mm | |
| PVC edge banding thickness | 3 mm | |
| Pedestal adjustable foot height | 10 mm | |
| Drawer internal height (box drawer) | 120 mm | |
| Drawer internal height (file drawer) | 270 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Evenly distributed desktop static load capacity | 136 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Leveling foot adjustment load per foot | 80 kg | |
| Net product weight | 120 kg | |
| Recommended user weight capacity per seat | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core and finish | 25mm E1 grade particleboard with walnut grain thermally fused melamine laminate | |
|---|---|---|
| Frame and support legs | 1.2mm wall thickness rectangular steel tube with dark charcoal powder-coated finish | |
| Edge treatment | 3mm thick impact-resistant PVC edge banding with rounded profile | |
| Pedestal panels | 18mm E1 grade engineered wood with matching walnut grain and dark charcoal matte side panels | |
| Drawer slides | Full-extension ball-bearing steel slides with zinc plating | |
| Cable grommets | ABS plastic with brush insert for cable pass-through |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pedestal storage | Each end pedestal includes one lockable upper supply drawer and one lower lockable file drawer for suspension files | |
|---|---|---|
| Cable management | Dual desktop grommets route power and data cables from surface to under-desk space | |
| Floor leveling | Adjustable plastic feet on all pedestal and leg bases compensate for uneven flooring | |
| Seating capacity | Supports two side-by-side seated office workers with independent knee clearance zones |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office work areas | Provides dedicated shared workspace for two staff with integrated personal storage | |
|---|---|---|
| Small startup and team offices | Eliminates need for separate desks and storage pedestals to save floor space |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable for dimensional and safety requirements for office work desks | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Applicable for mechanical safety and strength requirements for office desks | |
| EN 12521:2015 | Applicable for strength, durability and stability of domestic and contract storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applicable for safety and performance of office desk products | |
|---|---|---|
| ANSI/BIFMA X5.3-2019 | Applicable for performance of vertical files and storage pedestals |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2023 | Applicable for strength and stability requirements for office desks | |
| GB 18580-2017 | Applicable for formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements for wooden office furniture; 2. GB/T 3327-2023: Applicable for strength and stability requirements for office desks; 3. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
